Part Image

DBTC-17-5L+ - Mini-Circuits

Description: 17.2 dB SMT Directional Coupler, 50 - 2000 MHz, 50Ω

Download DBTC-17-5L+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

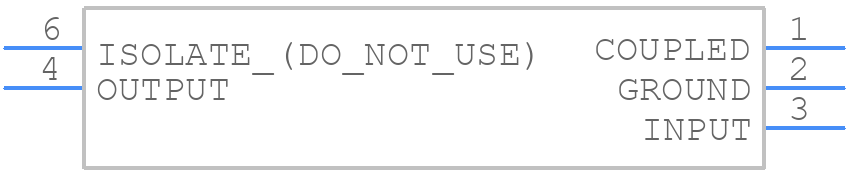

Symbol
DBTC-17-5L+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
DBTC-17-5L+ - Mini-Circuits PCB footprint - Other - Other - AT1030_2024
click to zoom
3D Models
DBTC-17-5L+ - Mini-Circuits - 3D model - Other - AT1030_2024
click to zoom

DBTC-17-5L+ Details

  • Manufacturer Part Number:

    DBTC-17-5L+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.49

  • Characteristic Impedance:

    50 Ω

  • Construction:

    MODULE

  • Input Power-Max (CW):

    33.01 dBm

  • Insertion Loss-Max:

    1.6 dB

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    2000 MHz

  • Operating Frequency-Min:

    50 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    DIRECTIONAL COUPLER

  • Terminal Finish:

    TIN

  • VSWR-Max:

    1.6

DBTC-17-5L+ Frequently Asked Questions (FAQs)

  • A 50-ohm microstrip line with a width of 1.5 mm to 2.5 mm is recommended for optimal performance. The device should be placed on a solid ground plane with vias connecting the ground pins to the ground plane.
  • The device should be mounted on a heat sink or a metal core PCB to ensure proper thermal management. The operating temperature range is -40°C to 85°C.
  • The maximum input power handling of the DBTC-17-5L+ is 1 watt. Exceeding this limit may cause damage to the device.
  • Yes, the DBTC-17-5L+ is designed for high-reliability applications. It is built with a ruggedized design and has undergone rigorous testing to ensure its performance in harsh environments.
  • The typical current consumption of the DBTC-17-5L+ is 50 mA. However, this value may vary depending on the operating frequency and input power level.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DBTC-17-5L+ Overview

Use the download button to access the DBTC-17-5L+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DBTC-, or try a keyword search, such as RF/Microwave Couplers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
