DBTC-7-152X+ footprint, schematic symbol and 3D model by Mini-Circuits

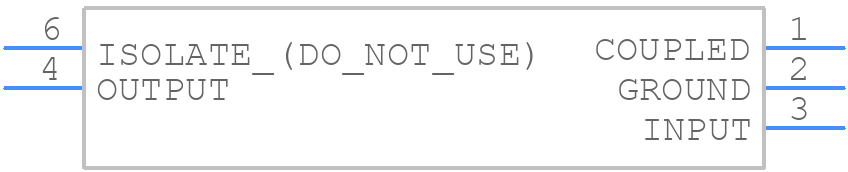

Symbol

click to zoom

PCB Footprints

DBTC-7-152X+ - Mini-Circuits PCB footprint - Other - Other - AT1667-1_2026-1.1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DBTC-7-152X+
Part Number DBTC-7-152X+
Manufacturer Mini-Circuits
Pin Count 5
Part Category Circulator or Directional Coupler
Package Category Other
Footprint Name Other - AT1667-1_2026-1.1
Released Date Apr 28, 2026
Last Modified Date Apr 28, 2026 2:24 PM UTC
Pinout / Pin List Click Here (Member Only)

DBTC-7-152X+ Details

Manufacturer Part Number:
DBTC-7-152X+
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
AT1667-1, 6/5 PIN
ECCN Code:
EAR99
Manufacturer:
Mini-Circuits
YTEOL:
6.79
Characteristic Impedance:
50 Ω
Construction:
MODULE
Input Power-Max (CW):
30 dBm
Insertion Loss-Max:
3.2 dB
Operating Frequency-Max:
1500 MHz
Operating Frequency-Min:
10 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
RF/Microwave Device Type:
DIRECTIONAL COUPLER
VSWR-Max:
1.4

DBTC-7-152X+ Frequently Asked Questions (FAQs)

Mini-Circuits provides a recommended PCB layout and footprint in their application notes and evaluation board documentation. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
Impedance matching can be achieved using a combination of series and shunt resistors, capacitors, and inductors. Mini-Circuits provides guidance on impedance matching in their application notes, and simulation tools like ADS or AWR can help optimize the matching network.
The maximum power handling of the DBTC-7-152X+ is not explicitly stated in the datasheet. However, according to Mini-Circuits' application notes, the device can handle up to 1W of continuous power. It's essential to derate the power handling based on the operating frequency, temperature, and other environmental factors.
Yes, the DBTC-7-152X+ is designed for high-reliability applications and is suitable for use in space-constrained environments. However, it's essential to follow proper PCB design, layout, and assembly practices to ensure the device meets the required reliability and performance standards.
Troubleshooting common issues with the DBTC-7-152X+ typically involves checking the PCB layout, soldering quality, and impedance matching. Mini-Circuits provides troubleshooting guides and application notes that can help identify and resolve common issues.

Trust Checks

Community Provided

System Verified

Community Approved

DBTC-7-152X+ Overview

Use the download button to access the DBTC-7-152X+ schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like DBTC-, or try a keyword search, such as RF/Microwave Couplers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
