Part Image

DBTC16-282LX+ - Mini-Circuits

Description: 16.8 dB SMT Directional Coupler, 5 - 2850 MHz, 50Ω

Download DBTC16-282LX+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

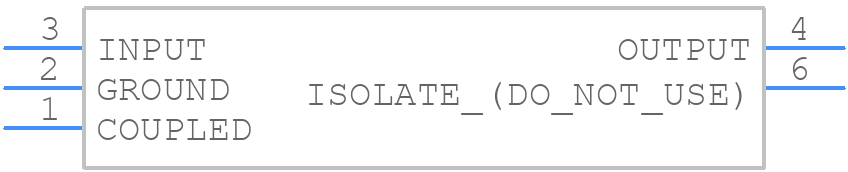

Symbol
DBTC16-282LX+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
DBTC16-282LX+ - Mini-Circuits PCB footprint - Other - Other - DBTC16-282LX+
click to zoom
3D Models
DBTC16-282LX+ - Mini-Circuits - 3D model - Other - DBTC16-282LX+
click to zoom

DBTC16-282LX+ Details

  • Manufacturer Part Number:

    DBTC16-282LX+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.89

  • Additional Feature:

    TR, 7 INCH; 500

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    1 dBm

  • Insertion Loss-Max:

    2.4 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    5

  • Operating Frequency-Max:

    2850 MHz

  • Operating Frequency-Min:

    5 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    SOLCC5/6,.16

  • RF/Microwave Device Type:

    DIRECTIONAL COUPLER

  • Surface Mount:

    YES

  • VSWR-Max:

    1.13

DBTC16-282LX+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The DBTC16-282LX+ has a maximum junction temperature of 150°C. To ensure reliable operation, it's crucial to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device.
  • The DBTC16-282LX+ is designed to operate with a 50Ω input and output impedance. To achieve optimal performance, it's recommended to match the input and output impedance to 50Ω using impedance matching networks or transmission lines.
  • While the DBTC16-282LX+ is designed for 50Ω systems, it can be used in non-50Ω systems with proper impedance matching. However, this may require additional circuitry and design considerations to ensure optimal performance.
  • The DBTC16-282LX+ is specified to operate up to 16 GHz, but it's essential to note that the device's performance may degrade at higher frequencies. For optimal performance, it's recommended to operate the device within the specified frequency range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DBTC16-282LX+ Overview

Use the download button to access the DBTC16-282LX+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DBTC1, or try a keyword search, such as RF/Microwave Couplers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
