DC-001-A-CRSN - Power Dynamics

Description: Conn Power F 2 POS Solder RA Thru-Hole 3 Terminal 1 Port

Download DC-001-A-CRSN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

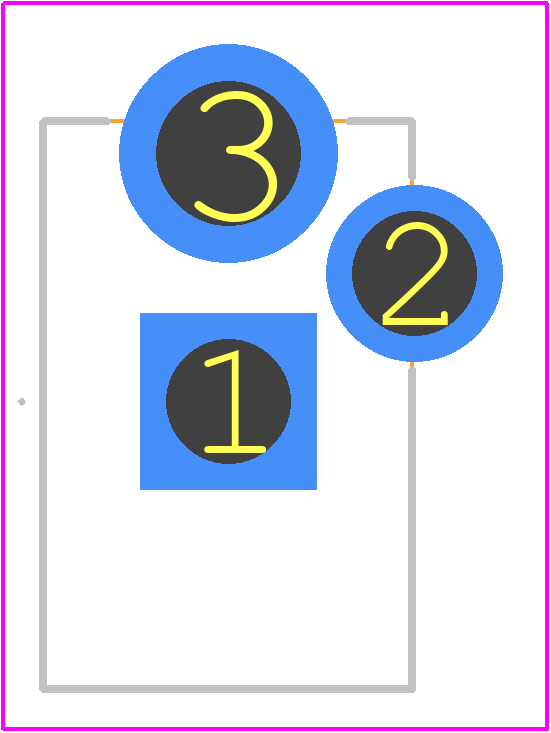

DC-001-A-CRSN - Power Dynamics PCB footprint - Other - Other - DC-001-A-CRSN-2
click to zoom
3D Models
DC-001-A-CRSN - Power Dynamics  - 3D model - Other - DC-001-A-CRSN-2
click to zoom

DC-001-A-CRSN Details

  • Manufacturer Part Number:

    DC-001-A-CRSN

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Power Dynamics Inc

  • YTEOL:

    6.25

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Mating:

    SILVER (1181) OVER NICKEL (1181)

  • Contact Finish Termination:

    Silver (Ag) - with Nickel (Ni) barrier

  • Contact Material:

    COPPER

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    2 mm

  • Rated Current (Power):

    1 A

  • Rated Voltage:

    30 V

  • Termination Type:

    SOLDER LUG

DC-001-A-CRSN Frequently Asked Questions (FAQs)

  • Power Dynamics Inc recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern around the device's thermal pad to ensure efficient heat dissipation.
  • To ensure reliable operation in high-vibration environments, Power Dynamics Inc recommends securing the DC-001-A-CRSN to the PCB using a combination of screws and adhesive, and following the recommended PCB mounting guidelines.
  • The DC-001-A-CRSN can withstand voltage transients up to 1.5 times the maximum rated input voltage for a duration of 100ms, but it's recommended to use a transient voltage suppressor (TVS) to protect the device from voltage spikes.
  • Yes, the DC-001-A-CRSN can be used in a redundant or parallel configuration, but it's essential to ensure that the devices are properly synchronized and that the system is designed to handle the increased power output.
  • Power Dynamics Inc recommends using a combination of common-mode chokes and X-capacitors to filter out electromagnetic interference (EMI) and ensure compliance with relevant EMI standards.
