DC0710J5010AHF - ANAREN

Description: Signal Conditioning .7-1.0GHz IL=.3dB Mean Coupling 10.9dB

Download DC0710J5010AHF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

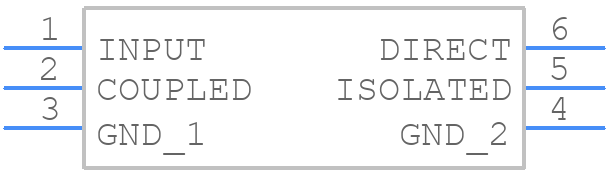

DC0710J5010AHF - ANAREN - PCB symbol
click to zoom
PCB Footprints
DC0710J5010AHF - ANAREN PCB footprint - Other - Other - DC0710J5010AHF-1
click to zoom
3D Models
DC0710J5010AHF - ANAREN - 3D model - Other - DC0710J5010AHF-1
click to zoom

DC0710J5010AHF Details

  • Manufacturer Part Number:

    DC0710J5010AHF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT PACKAGE-6

  • Manufacturer:

    Anaren Microwave

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    33.01 dBm

  • Insertion Loss-Max:

    0.3 dB

  • Operating Frequency-Max:

    1000 MHz

  • Operating Frequency-Min:

    700 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • RF/Microwave Device Type:

    DIRECTIONAL COUPLER

  • Terminal Finish:

    Nickel/Gold (Ni/Au) - ENIG

DC0710J5010AHF Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern can be found in the Anaren Microwave application note AN-1121, which provides guidelines for optimal performance and thermal management.
  • The DC0710J5010AHF has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to ensure proper heat dissipation. A thermal interface material (TIM) can be used to improve thermal conductivity.
  • The DC0710J5010AHF is rated for operation from -40°C to +85°C, but the maximum operating temperature range may vary depending on the specific application and environmental conditions.
  • The DC0710J5010AHF requires a bias voltage of 5V and a bias current of 100mA. Ensure that the bias voltage and current are within the recommended specifications to achieve optimal performance.
  • The DC0710J5010AHF should be stored in a dry, cool place, away from direct sunlight and moisture. Handling should be done with anti-static wrist straps and mats to prevent electrostatic discharge (ESD) damage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DC0710J5010AHF Overview

Use the download button to access the DC0710J5010AHF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DC071, or try a keyword search, such as RF/Microwave Couplers
