DC2337J5010AHF - ANAREN

Description: Signal Conditioning 2.3-3.7GHz IL=.22dB Mean Coupling 11.1dB

Download DC2337J5010AHF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

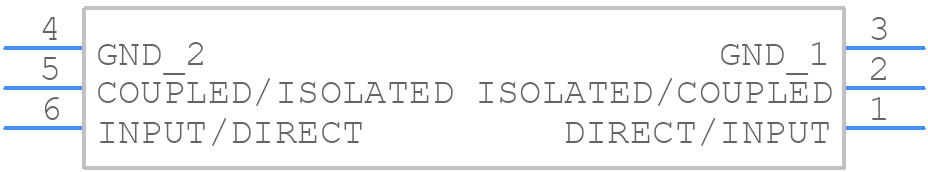

Symbol
DC2337J5010AHF - ANAREN - PCB symbol
click to zoom
PCB Footprints
DC2337J5010AHF - ANAREN PCB footprint - Other - Other - DC2337J5010AHF-4
click to zoom
3D Models
DC2337J5010AHF - ANAREN - 3D model - Other - DC2337J5010AHF-4
click to zoom

DC2337J5010AHF Details

  • Manufacturer Part Number:

    DC2337J5010AHF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT PACKAGE-6

  • Manufacturer:

    Anaren Microwave

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    33.01 dBm

  • Insertion Loss-Max:

    0.29 dB

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    3700 MHz

  • Operating Frequency-Min:

    2300 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • RF/Microwave Device Type:

    DIRECTIONAL COUPLER

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

DC2337J5010AHF Frequently Asked Questions (FAQs)

  • The recommended land pattern for the DC2337J5010AHF can be found in the Anaren Microwave application note AN-112, which provides guidelines for PCB layout and assembly.
  • To prevent damage, handle the DC2337J5010AHF by the package body only, avoiding touching the leads or electrical contacts. Use anti-static wrist straps and mats to prevent electrostatic discharge.
  • The maximum storage temperature for the DC2337J5010AHF is +25°C to +40°C, with a relative humidity of 90% or less.
  • No, the DC2337J5010AHF is not designed for use in hermetically sealed environments. It requires a minimum of 1% annual humidity to prevent moisture buildup and ensure reliable operation.
  • The maximum power rating for the DC2337J5010AHF is 10W, with a maximum junction temperature of 150°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DC2337J5010AHF Overview

Use the download button to access the DC2337J5010AHF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DC233, or try a keyword search, such as RF/Microwave Couplers
