The recommended land pattern for the DC2337J5020AHF can be found in the Anaren Microwave application note AN-1121, which provides guidelines for surface mount assembly and layout considerations.
To prevent damage, handle the DC2337J5020AHF by the edges, avoid touching the pins or the ceramic body, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD).
The maximum power handling of the DC2337J5020AHF is 20 watts, but it's recommended to derate the power handling based on the operating frequency, temperature, and other environmental factors.
The DC2337J5020AHF is a commercial-grade component, but Anaren Microwave offers a space-grade version, the DC2337J5020AHF-SP, which meets the requirements of NASA's ASTM E595 standard for outgassing and is suitable for high-reliability applications.
The thermal resistance of the DC2337J5020AHF is approximately 10°C/W, but this value can vary depending on the specific application, PCB design, and thermal management.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
DC2337J5020AHF Overview

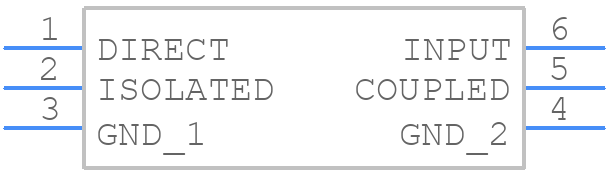

Use the download button to access the DC2337J5020AHF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DC233,
or try a keyword search, such as RF/Microwave Couplers
