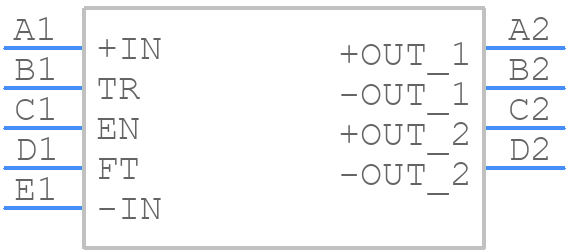

DCM2322T50T2660M60 footprint, schematic symbol and 3D model by VICOR

Symbol

click to zoom

PCB Footprints

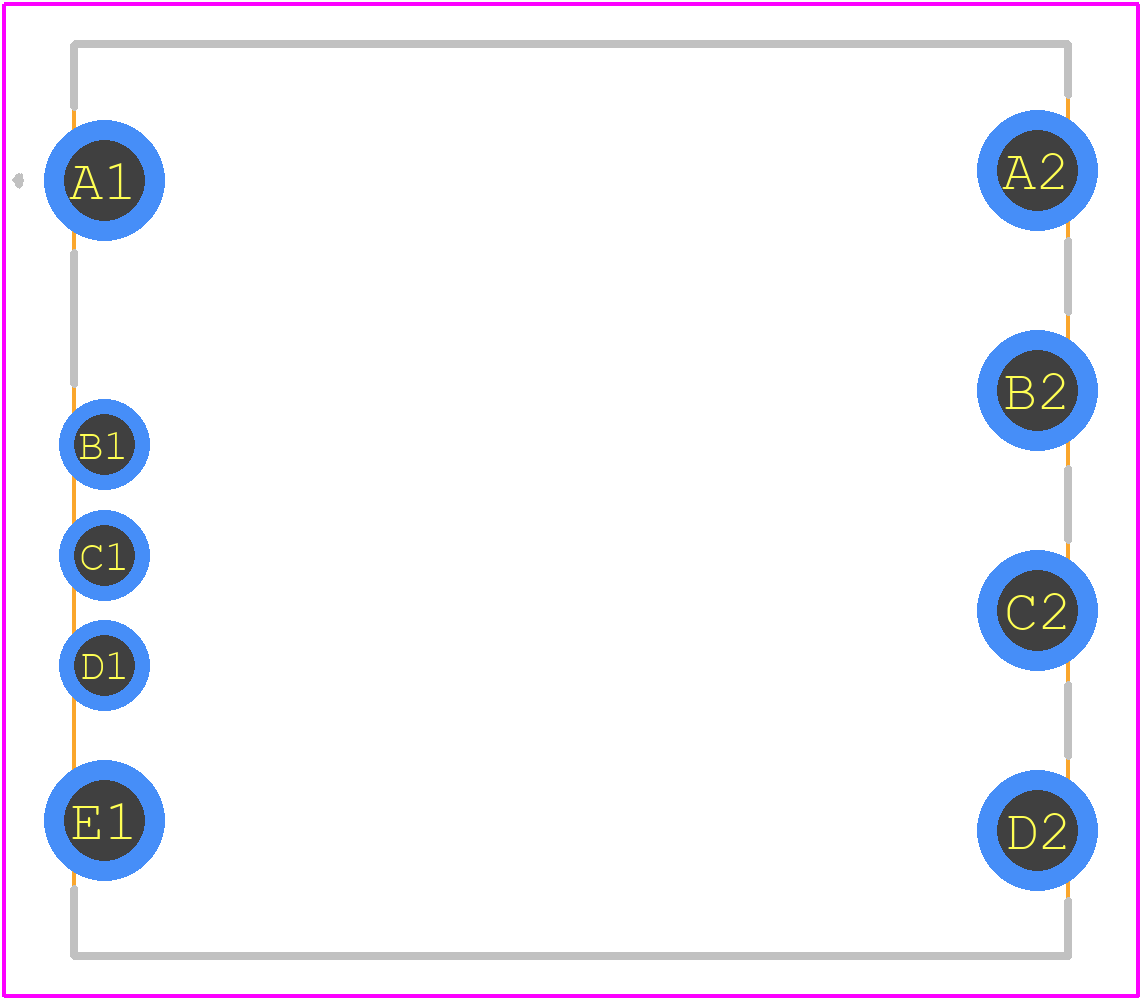

DCM2322T50T2660M60 - VICOR PCB footprint - Other - Other - DCM2322T50T2660M60-1

click to zoom

3D Models

DCM2322T50T2660M60 - VICOR - 3D model - Other - DCM2322T50T2660M60-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DCM2322T50T2660M60
Part Number DCM2322T50T2660M60
Manufacturer VICOR
Pin Count 9
Part Category Power Supply
Package Category Other
Footprint Name Other - DCM2322T50T2660M60-1
Released Date Jun 10, 2021
Last Modified Date Oct 9, 2023 6:28 AM UTC
Pinout / Pin List Click Here (Member Only)

DCM2322T50T2660M60 Details

Manufacturer Part Number:
DCM2322T50T2660M60
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Factory Lead Time:
28 Weeks
Date Of Intro:
2020-01-30
Manufacturer:
Vicor Corporation
YTEOL:
7
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CE
Control Mode:
VOLTAGE-MODE
Efficiency (Main Output):
88.7%
Input Voltage-Max:
50 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
30 V
JESD-30 Code:
R-XDMA-T9
JESD-609 Code:
e4
Length:
24.84 mm
Load Regulation-Max:
0.5%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
9
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Output Voltage-Max:
26.4 V
Output Voltage-Min:
14.4 V
Output Voltage-Nom:
24 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Protections:
THERMAL; OVER CURRENT;UNDER VOLTAGE; OVER VOLTAGE
Seated Height-Max:
7.31 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
MILITARY
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
THROUGH-HOLE
Terminal Position:
DUAL
Total Power Output-Max:
60 W
Trim/Adjustable Output:
YES
Width:
22.8 mm

DCM2322T50T2660M60 Frequently Asked Questions (FAQs)

Vicor provides a reference design guide and thermal management guidelines in their application notes and whitepapers. It's recommended to follow these guidelines to ensure optimal performance and thermal management.
Vicor recommends using a soft-start circuit and a controlled shutdown sequence to prevent voltage overshoot and ensure reliable operation. This can be achieved using external components and circuitry.
While the datasheet specifies the recommended input voltage range, the maximum allowable input voltage ripple and noise are not explicitly stated. Vicor recommends keeping the input voltage ripple and noise within 10% of the nominal input voltage to ensure reliable operation.
While the DCM2322T50T2660M60 is a high-performance DC-DC converter, it may not be suitable for high-reliability or high-temperature applications without additional testing and validation. Vicor recommends consulting with their application engineers to determine the suitability of the device for such applications.
Vicor provides a troubleshooting guide and application notes that can help identify and resolve common issues. Additionally, Vicor's technical support team can provide assistance with debugging and troubleshooting.

Trust Checks

Community Provided

System Verified

Community Approved

DCM2322T50T2660M60 Overview

Use the download button to access the DCM2322T50T2660M60 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DCM23, or try a keyword search, such as Power Supply Modules

Parts related to DCM2322T50T2660M60

Showing 0 results


Please enter a minimum 3 letters or numbers
