DCM2322TA5N17A2T60 - VICOR

Description: Isolated DC/DC Converters 120W 43-154Vin 15Vout T-grade

Download DCM2322TA5N17A2T60 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DCM2322TA5N17A2T60 - VICOR - PCB symbol
click to zoom
PCB Footprints

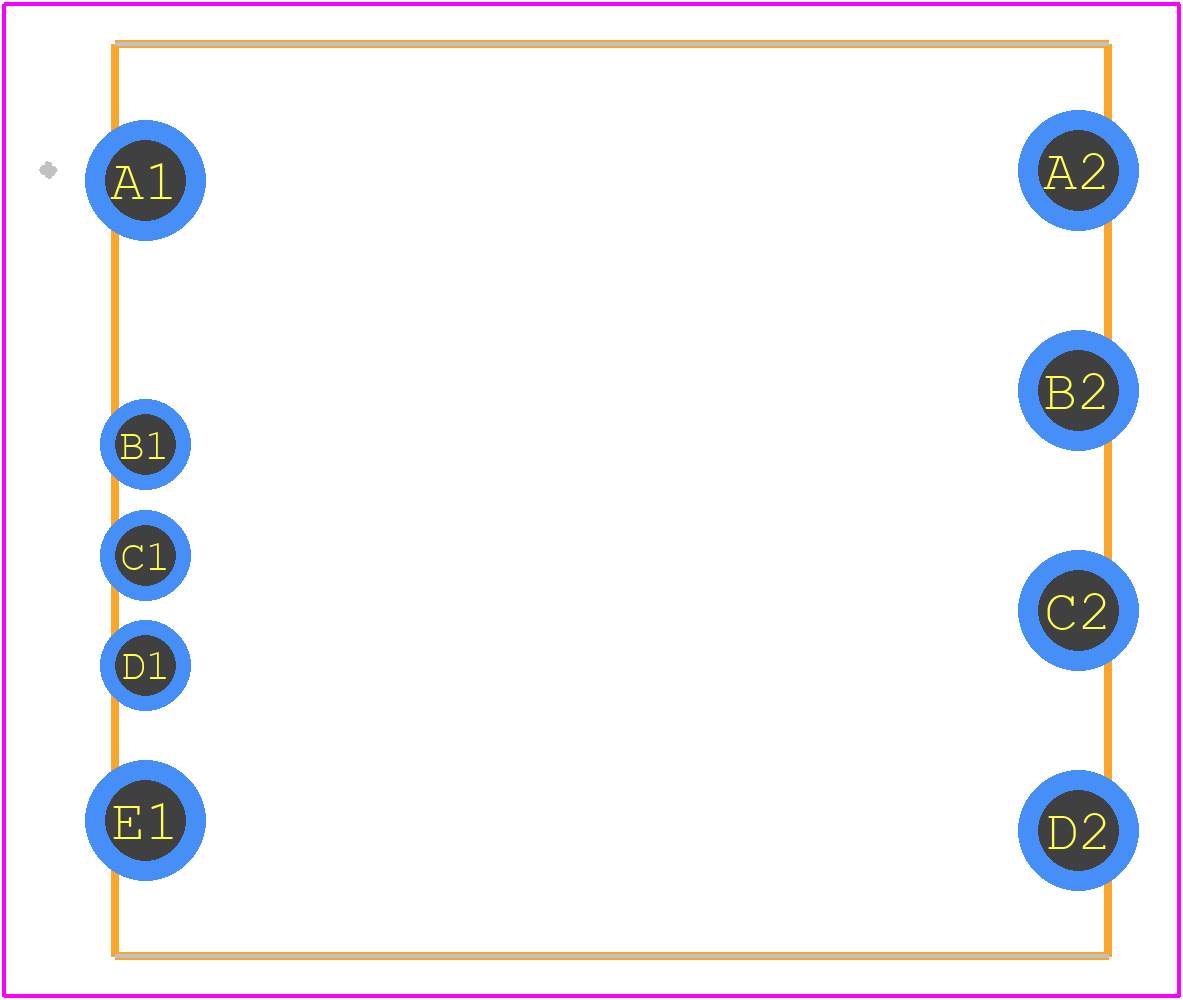

DCM2322TA5N17A2T60 - VICOR PCB footprint - Other - Other - DCM2322TA5N17A2T60-2
click to zoom
3D Models
DCM2322TA5N17A2T60 - VICOR - 3D model - Other - DCM2322TA5N17A2T60-2
click to zoom

DCM2322TA5N17A2T60 Details

  • Manufacturer Part Number:

    DCM2322TA5N17A2T60

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Date Of Intro:

    2020-01-30

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    7.1

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE

  • Control Mode:

    VOLTAGE-MODE

  • Efficiency (Main Output):

    90.8%

  • Input Voltage-Max:

    154 V

  • Input Voltage-Min:

    43 V

  • Input Voltage-Nom:

    100 V

  • JESD-30 Code:

    R-XDMA-T9

  • JESD-609 Code:

    e4

  • Length:

    24.84 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    16.4 V

  • Output Voltage-Min:

    9 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    THERMAL; OVER CURRENT;UNDER VOLTAGE; OVER VOLTAGE

  • Seated Height-Max:

    7.31 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    120 W

  • Trim/Adjustable Output:

    YES

  • Width:

    22.8 mm
