DCM300P240T600A40 footprint, schematic symbol and 3D model by VICOR

Symbol

click to zoom

PCB Footprints

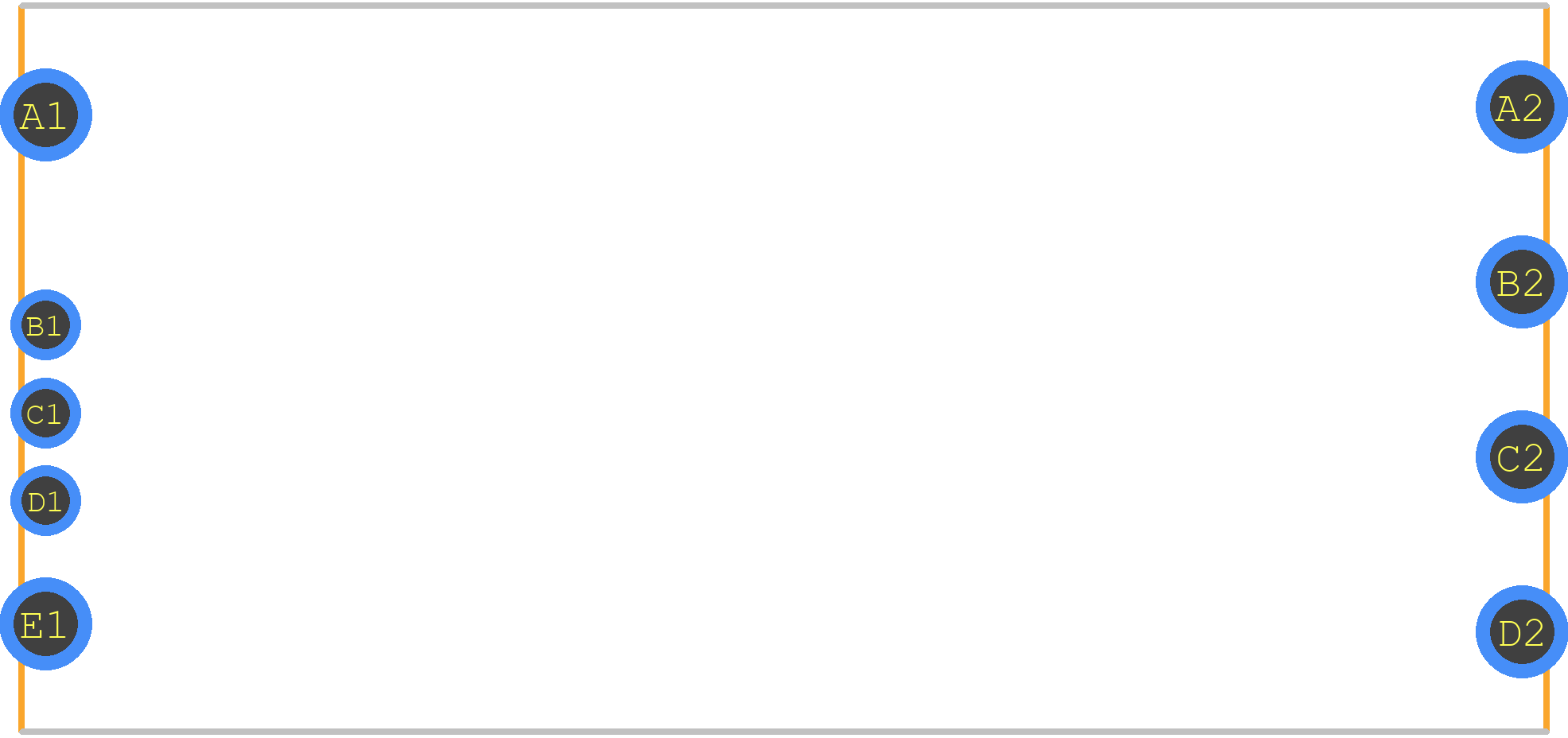

DCM300P240T600A40 - VICOR PCB footprint - Other - Other - DCM4623TD2N13C8T00

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DCM300P240T600A40
Part Number DCM300P240T600A40
Manufacturer VICOR
Pin Count 9
Part Category Power Supply
Package Category Other
Footprint Name Other - DCM4623TD2N13C8T00
Released Date Nov 15, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DCM300P240T600A40 Details

Manufacturer Part Number:
DCM300P240T600A40
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
MODULE-9
ECCN Code:
EAR99
Factory Lead Time:
28 Weeks
Manufacturer:
Vicor Corporation
YTEOL:
9.2
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
420 V
Input Voltage-Min:
180 V
Input Voltage-Nom:
300 V
JESD-30 Code:
R-XDMA-P9
Length:
47.71 mm
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
9
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Nom:
24 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
7.31 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
AUTOMOTIVE
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
600 W
Trim/Adjustable Output:
NO
Width:
22.8 mm

DCM300P240T600A40 Frequently Asked Questions (FAQs)

Vicor recommends a 4-layer PCB with a solid ground plane and thermal vias to the bottom layer to ensure optimal thermal performance. A minimum of 2 oz copper thickness is recommended.
To ensure reliable start-up, Vicor recommends a soft-start circuit to limit the inrush current and a minimum input capacitance of 10uF to ensure stable operation.
The maximum allowed input voltage ripple is 10% of the nominal input voltage. Exceeding this limit may affect the reliability and performance of the module.
Yes, the DCM300P240T600A40 can be used in a parallel configuration for higher power applications. However, Vicor recommends using a master-slave configuration with a single clock signal to ensure synchronization and optimal performance.
Vicor recommends using a forced air cooling method with a minimum airflow of 200 LFM to ensure optimal thermal performance. Natural convection cooling is not recommended.

Trust Checks

Expert Contribution

System Verified

Community Approved

DCM300P240T600A40 Overview

Use the download button to access the DCM300P240T600A40 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like DCM30, or try a keyword search, such as Power Supply Modules
