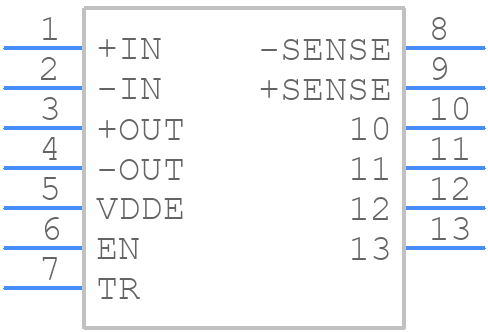

DCM3414B50M13C2T05 - VICOR - PCB symbol
click to zoom
PCB Footprints

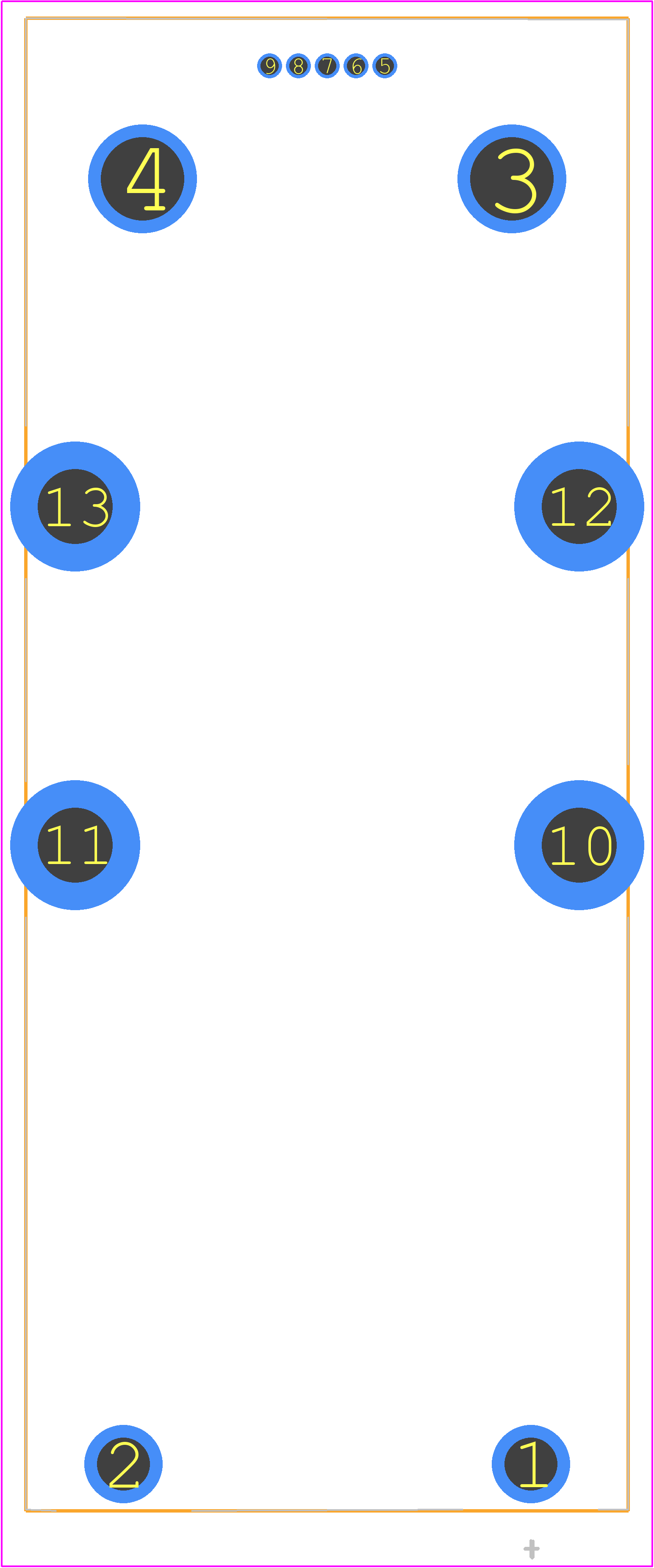

DCM3414B50M13C2T05 - VICOR PCB footprint - Other - Other - DCM3414B50M13C2T05-2
click to zoom
3D Models
DCM3414B50M13C2T05 - VICOR - 3D model - Other - DCM3414B50M13C2T05-2
click to zoom

DCM3414B50M13C2T05 Details

  • Manufacturer Part Number:

    DCM3414B50M13C2T05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-9

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    7

  • Additional Feature:

    SEATED HT CALCULATED

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, TUV, UL

  • Control Mode:

    VOLTAGE-MODE

  • Efficiency (Main Output):

    91.7%

  • Input Voltage-Max:

    50 V

  • Input Voltage-Min:

    16 V

  • Input Voltage-Nom:

    28 V

  • JESD-30 Code:

    R-PDMA-P9

  • Length:

    85.93 mm

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    26.67 A

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    7.2 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,9LEAD,3.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Protections:

    OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL

  • Ripple Voltage (Main Out):

    0.0636 Vrms

  • Seated Height-Max:

    9.481 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    320 W

  • Trim/Adjustable Output:

    YES

  • Warm-up Time:

    0.04 s

  • Width:

    35.5 mm
