Technical Content
Part Image

DCM3414B50M53C2M05 - VICOR

Description: Isolated DC/DC Converters - Through Hole 3414 28V 48V320W M

Download DCM3414B50M53C2M05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

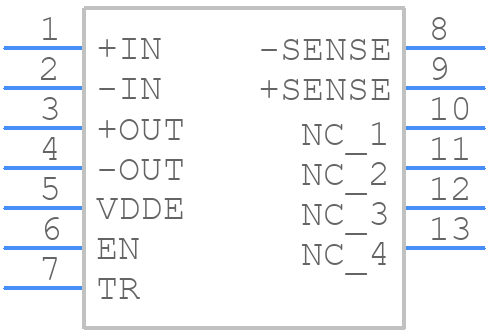

DCM3414B50M53C2M05 - VICOR - PCB symbol
click to zoom
PCB Footprints

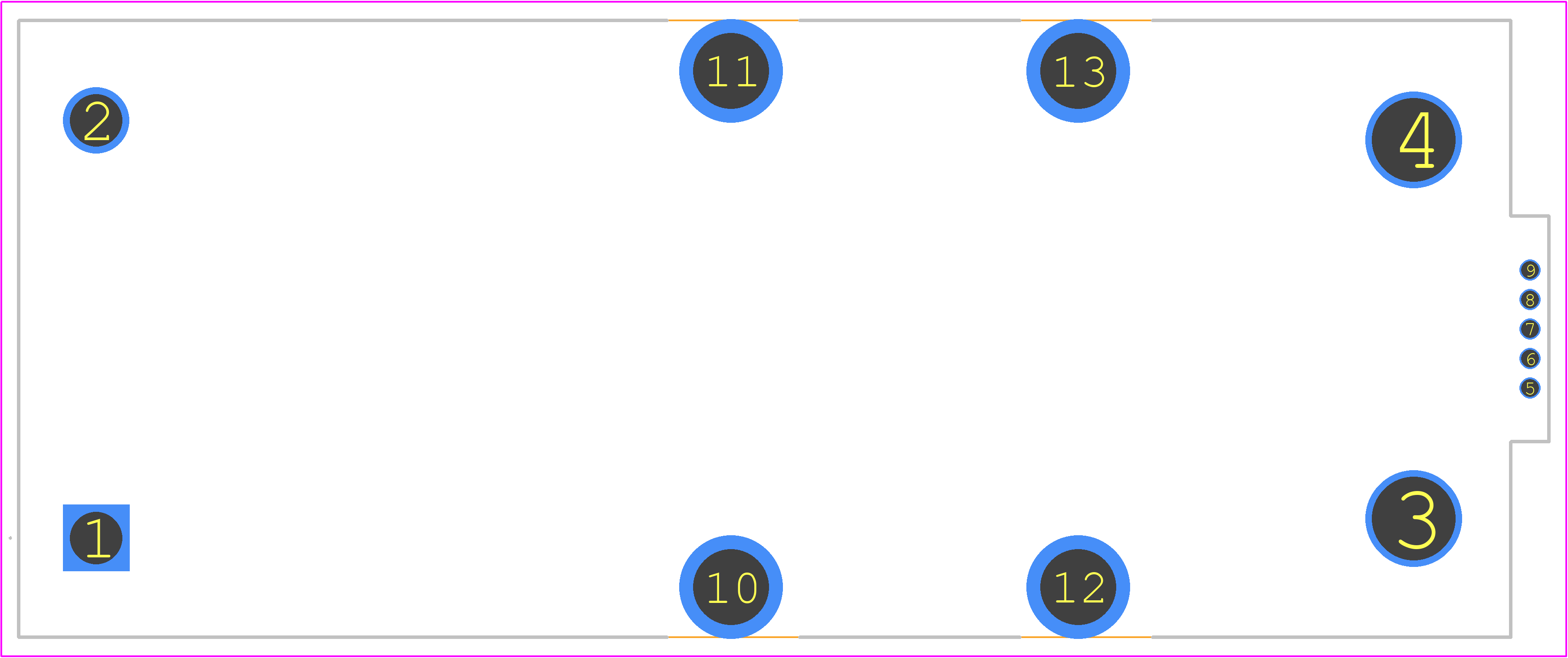

DCM3414B50M53C2M05 - VICOR PCB footprint - Other - Other - 85.93 mm x 35.5 mm x 9.40 mm_2025
click to zoom
3D Models
DCM3414B50M53C2M05 - VICOR - 3D model - Other - 85.93 mm x 35.5 mm x 9.40 mm_2025
click to zoom

DCM3414B50M53C2M05 Details

  • Manufacturer Part Number:

    DCM3414B50M53C2M05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Vicor Corporation

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DCM3414B50M53C2M05 Overview

Use the download button to access the DCM3414B50M53C2M05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DCM34, or try a keyword search, such as Power Supply Modules
