DCM3623T50M13C2M70 - VICOR

Description: Isolated DC/DC Converters 320W 28Vin 12Vout 3623 Package

Download DCM3623T50M13C2M70 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DCM3623T50M13C2M70 - VICOR - PCB symbol
click to zoom

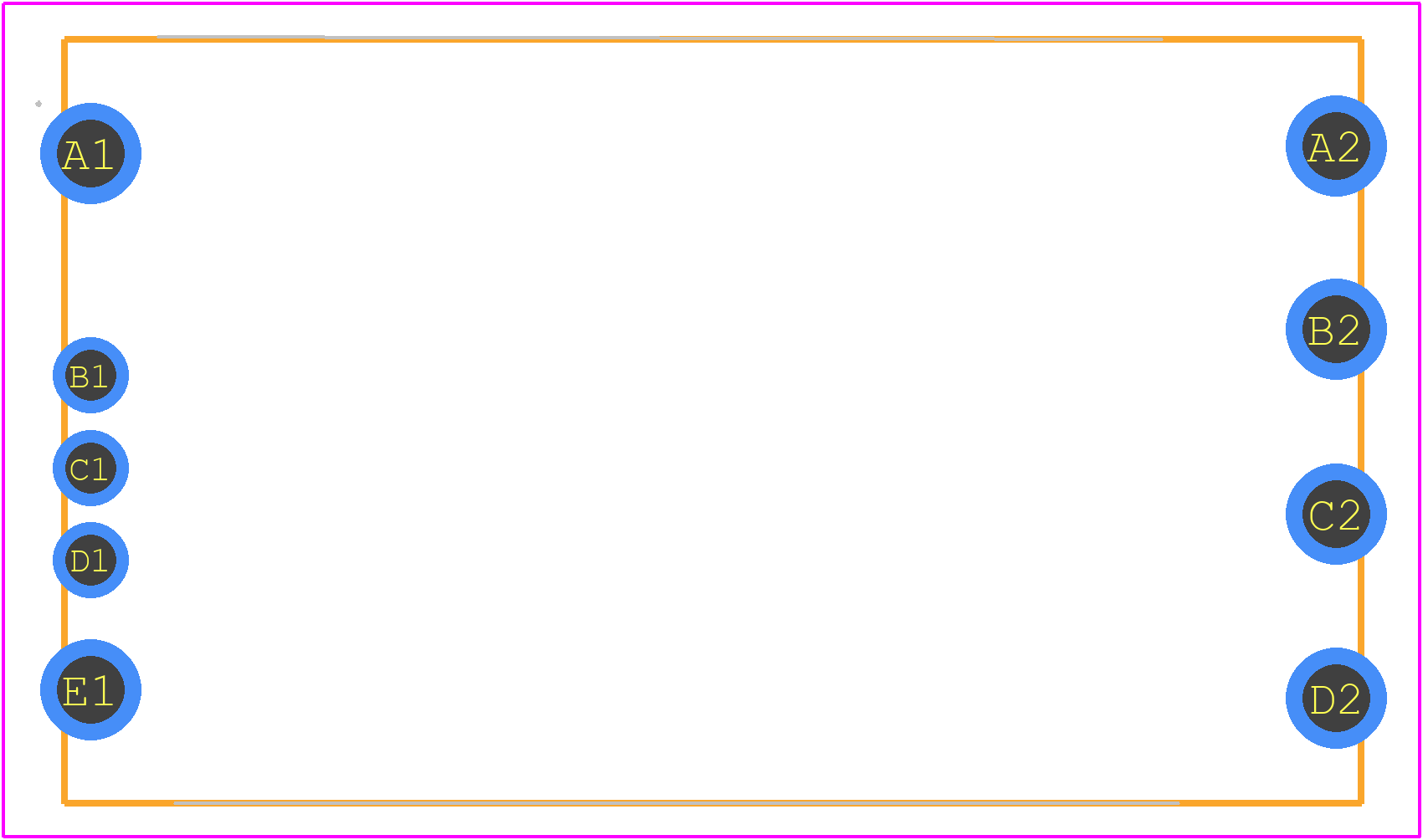

PCB Footprints
DCM3623T50M13C2M70 - VICOR PCB footprint - Other - Other - DCM3623T50M13C2M70-1
click to zoom
3D Models
DCM3623T50M13C2M70 - VICOR - 3D model - Other - DCM3623T50M13C2M70-1
click to zoom

DCM3623T50M13C2M70 Details

  • Manufacturer Part Number:

    DCM3623T50M13C2M70

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-9

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    50 V

  • Input Voltage-Min:

    16 V

  • Input Voltage-Nom:

    28 V

  • JESD-30 Code:

    R-XDMA-T9

  • JESD-609 Code:

    e4

  • Length:

    38.72 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    95 °C

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    7.2 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    7.31 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    320 W

  • Trim/Adjustable Output:

    YES

  • Width:

    22.8 mm

DCM3623T50M13C2M70 Frequently Asked Questions (FAQs)

  • Vicor recommends a 4-layer PCB with a solid ground plane and thermal vias to ensure optimal thermal performance. A minimum of 2 oz copper thickness is recommended for the top and bottom layers.
  • To ensure reliable start-up, Vicor recommends a soft-start circuit to limit the inrush current and a minimum input capacitance of 10uF to ensure stable operation.
  • The maximum allowed input voltage ripple is 10% of the nominal input voltage. Exceeding this limit may affect the reliability and performance of the DCM3623T50M13C2M70.
  • The DCM3623T50M13C2M70 is rated for operation up to 100°C ambient temperature. However, Vicor recommends derating the output power by 1% per degree Celsius above 80°C to ensure reliable operation.
  • Vicor recommends using an oscilloscope to monitor the input and output voltages, as well as the current sense signals. Additionally, checking the thermal performance and ensuring proper PCB layout can help identify and resolve issues.
