DCM3623T50M31C2M00 - VICOR

Description: Isolated Module DC DC Converter 1 Output 28V 11.5A 16V - 50V Input

Download DCM3623T50M31C2M00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DCM3623T50M31C2M00 - VICOR - PCB symbol
click to zoom
PCB Footprints

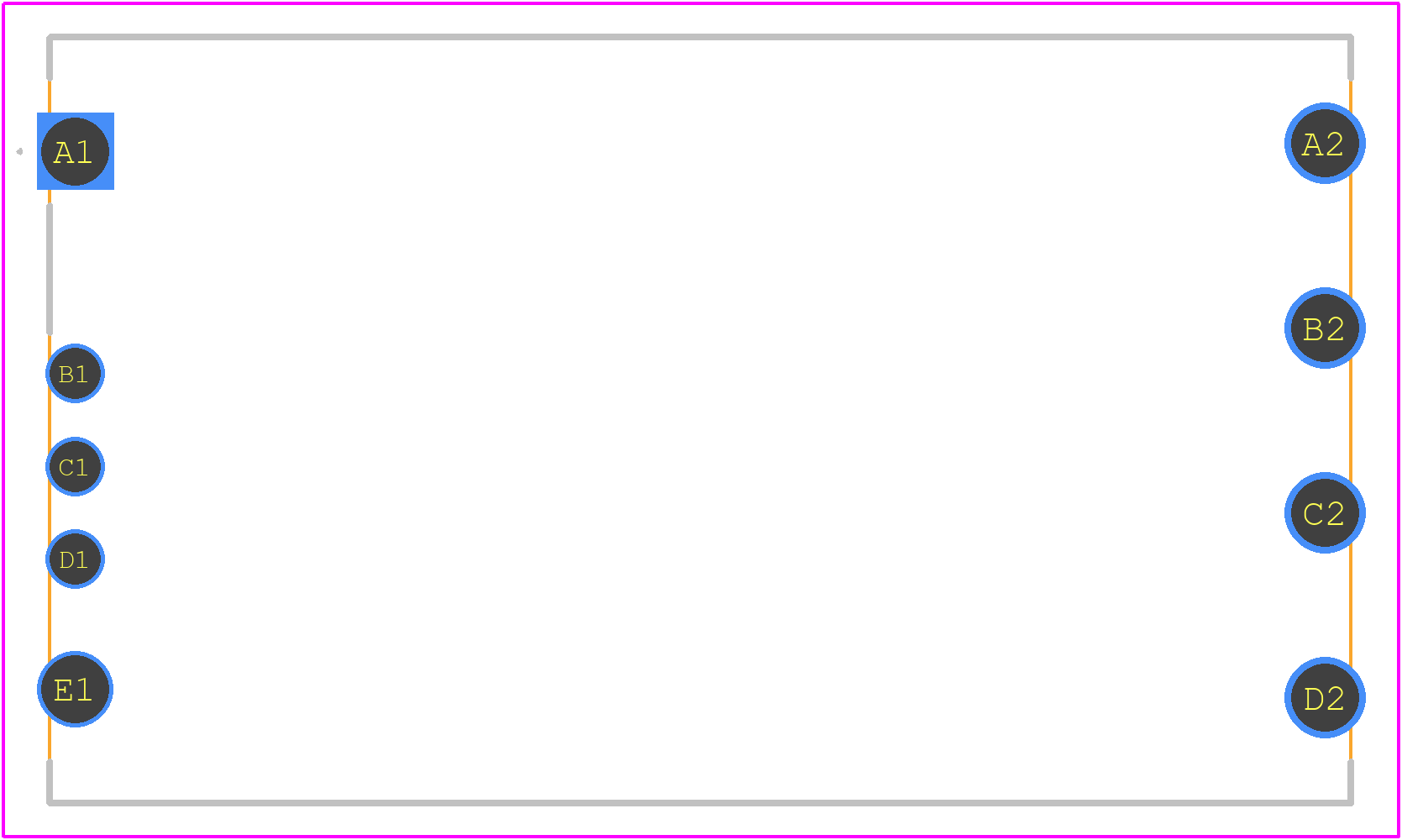

DCM3623T50M31C2M00 - VICOR PCB footprint - Other - Other - 38.72 x 22.8 x 7.21mm
click to zoom
3D Models
DCM3623T50M31C2M00 - VICOR - 3D model - Other - 38.72 x 22.8 x 7.21mm
click to zoom

DCM3623T50M31C2M00 Details

  • Manufacturer Part Number:

    DCM3623T50M31C2M00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-9

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Date Of Intro:

    2016-10-12

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    50 V

  • Input Voltage-Min:

    16 V

  • Input Voltage-Nom:

    28 V

  • JESD-30 Code:

    R-XDMA-T9

  • JESD-609 Code:

    e4

  • Length:

    38.72 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Output Voltage-Max:

    30.8 V

  • Output Voltage-Min:

    22 V

  • Output Voltage-Nom:

    28 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    7.31 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    320 W

  • Trim/Adjustable Output:

    YES

  • Width:

    22.8 mm

DCM3623T50M31C2M00 Frequently Asked Questions (FAQs)

  • Vicor recommends a 2-layer or 4-layer PCB with a thermal relief pattern on the bottom layer to improve heat dissipation. A minimum of 2 oz copper thickness is recommended for optimal thermal performance.
  • To ensure reliable start-up, Vicor recommends a soft-start circuit to limit the inrush current during power-up. A minimum of 10uF capacitance on the input and output is also recommended to filter out noise and ensure stable operation.
  • The maximum allowed input voltage ripple for the DCM3623T50M31C2M00 is 10% of the nominal input voltage. Exceeding this limit may affect the converter's performance and reliability.
  • The DCM3623T50M31C2M00 is rated for operation up to 100°C ambient temperature. However, Vicor recommends derating the output power by 1% for every 1°C above 80°C to ensure reliable operation.
  • Vicor recommends checking the input voltage, output voltage, and output current to identify the source of the issue. The DCM3623T50M31C2M00 also has a built-in fault detection circuit that can provide diagnostic information.
