DCM3623T50M31C2T00 - VICOR

Description: Isolated DC/DC Converters 3623 DCM 28Vin 28V 3 20W

Download DCM3623T50M31C2T00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DCM3623T50M31C2T00 - VICOR - PCB symbol
click to zoom

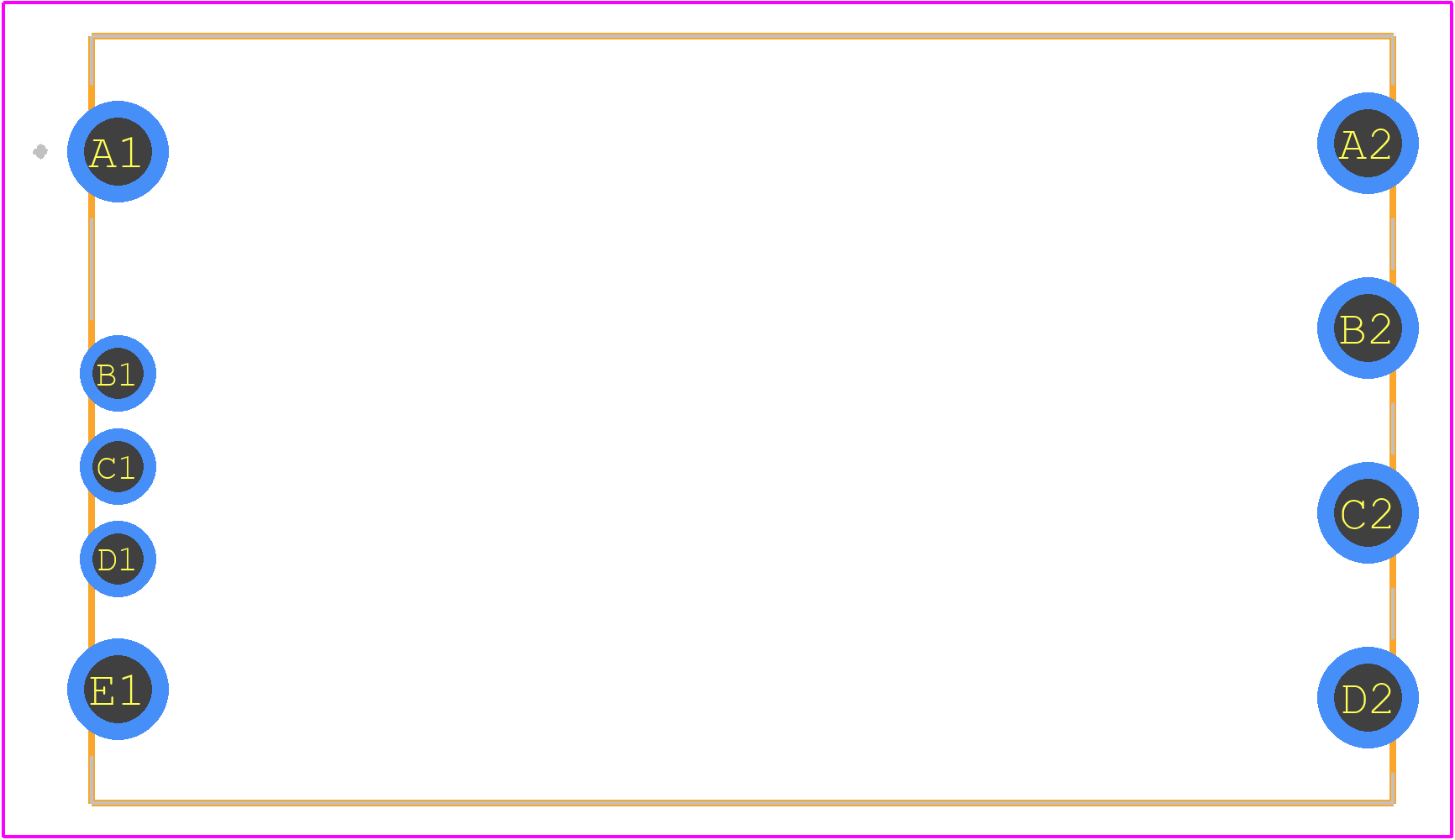

PCB Footprints
DCM3623T50M31C2T00 - VICOR PCB footprint - Other - Other - DCM MODULE_1
click to zoom
3D Models
DCM3623T50M31C2T00 - VICOR - 3D model - Other - DCM MODULE_1
click to zoom

DCM3623T50M31C2T00 Details

  • Manufacturer Part Number:

    DCM3623T50M31C2T00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-9

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Date Of Intro:

    2016-10-12

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    50 V

  • Input Voltage-Min:

    16 V

  • Input Voltage-Nom:

    28 V

  • JESD-30 Code:

    R-XDMA-T9

  • JESD-609 Code:

    e4

  • Length:

    38.72 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Output Voltage-Max:

    30.8 V

  • Output Voltage-Min:

    22 V

  • Output Voltage-Nom:

    28 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    7.31 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    320 W

  • Trim/Adjustable Output:

    YES

  • Width:

    22.8 mm

DCM3623T50M31C2T00 Frequently Asked Questions (FAQs)

  • Vicor recommends a 4-layer PCB with a solid ground plane, and thermal vias under the module to dissipate heat. A thermal interface material (TIM) should be used between the module and the heat sink.
  • To ensure reliable start-up and shutdown, Vicor recommends a soft-start circuit to limit inrush current, and a shutdown circuit to prevent voltage spikes during power-down.
  • Vicor recommends using a common-mode choke and X-capacitors to filter EMI, and to follow the layout guidelines in the datasheet to minimize radiated emissions.
  • Yes, the DCM3623T50M31C2T00 can be used in a redundant or N+1 configuration, but Vicor recommends using a diode ORing circuit to prevent back-feeding and ensure reliable operation.
  • The maximum allowed capacitance on the output of the DCM3623T50M31C2T00 is 2200uF, exceeding this value may cause instability or oscillation.
