Vicor recommends a 4-layer PCB with a solid ground plane and thermal vias to ensure optimal thermal performance. A minimum of 2 oz copper thickness is recommended for the top and bottom layers.
To ensure reliable start-up, Vicor recommends a soft-start circuit to limit the inrush current. A minimum of 10uF capacitance on the input and output is also recommended to ensure stable operation.
The maximum allowed input voltage ripple is 10% of the nominal input voltage. Exceeding this limit may affect the reliability and performance of the module.
The DCM3623T50M53C2M00 is rated for operation up to 100°C ambient temperature. However, derating is required for temperatures above 85°C. Consult the datasheet for derating curves and guidelines.
Vicor recommends using an oscilloscope to monitor the input and output voltages, as well as the current sense pins. Consult the datasheet for troubleshooting guidelines and fault detection mechanisms.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DCM3623T50M53C2M00 Overview

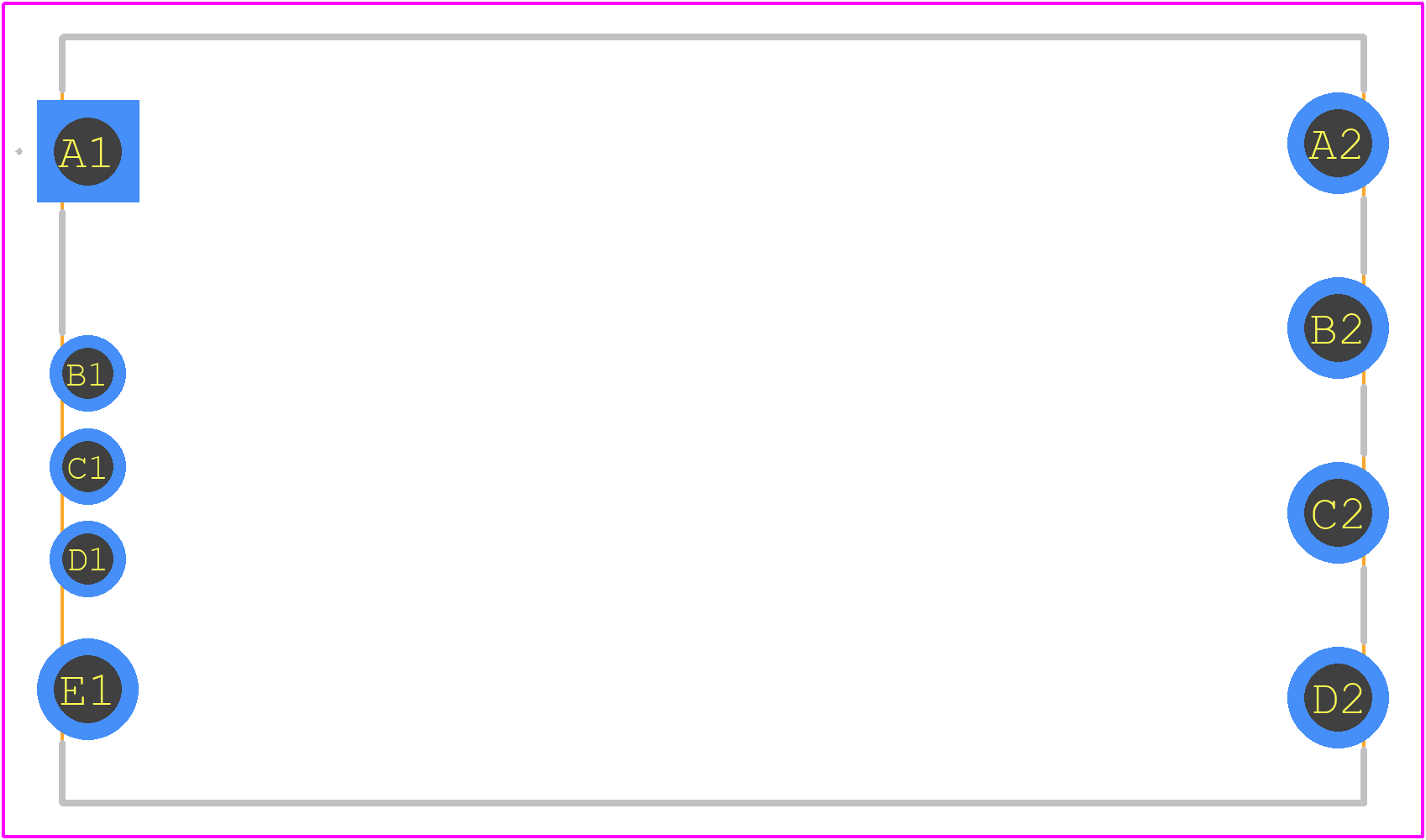

Use the download button to access the DCM3623T50M53C2M00 schematic symbol, PCB footprint, and 3D model.
