DCM3623T50T0480T00 - VICOR

Description: Isolated DC/DC Converters - Through Hole 3623 DCM 30Vin 3.3V 80W

Download DCM3623T50T0480T00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DCM3623T50T0480T00 - VICOR - PCB symbol
click to zoom

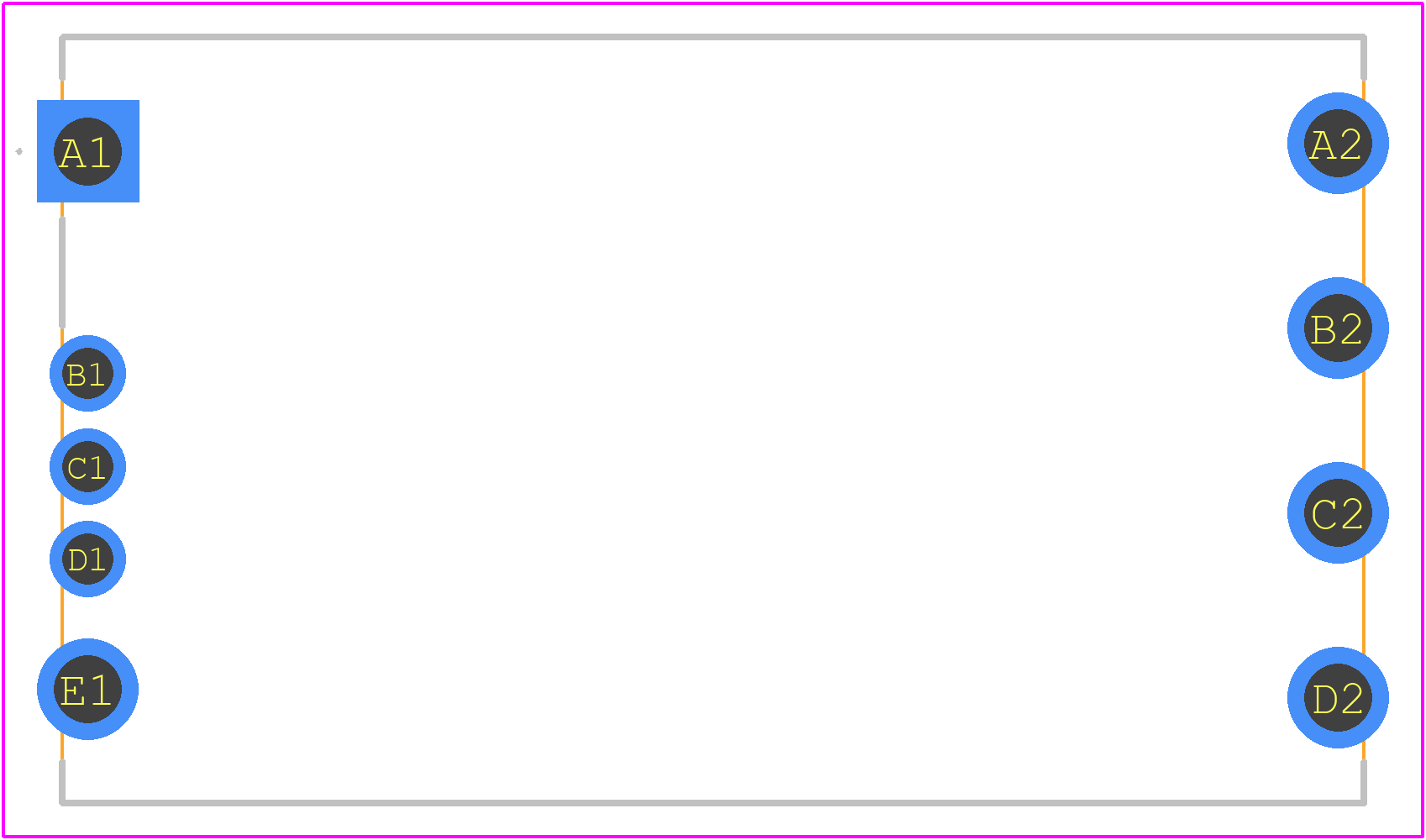

PCB Footprints
DCM3623T50T0480T00 - VICOR PCB footprint - Other - Other - 9-DIP Module_2024
click to zoom
3D Models
DCM3623T50T0480T00 - VICOR - 3D model - Other - 9-DIP Module_2024
click to zoom

DCM3623T50T0480T00 Details

  • Manufacturer Part Number:

    DCM3623T50T0480T00

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Date Of Intro:

    2016-12-28

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, EN, UKCA, TUV, UL

  • Efficiency (Main Output):

    82.1%

  • Input Voltage-Max:

    50 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    30 V

  • JESD-30 Code:

    R-XDMA-P9

  • JESD-609 Code:

    e4

  • Length:

    38.72 mm

  • Load Regulation-Max:

    5.82121%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    24.3 A

  • Output Voltage-Max:

    3.6 V

  • Output Voltage-Min:

    3 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    INPUT OUTPUT UNDERVOLTAGE; INPUT OUTPUT OVER VOLTAGE; TEMPEATURE

  • Ripple Voltage (Main Out):

    0.083426 Vrms

  • Seated Height-Max:

    7.31 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    80 W

  • Trim/Adjustable Output:

    YES

  • Width:

    22.8 mm

DCM3623T50T0480T00 Frequently Asked Questions (FAQs)

  • Vicor provides a reference design guide and thermal management guidelines in their application notes and whitepapers. It's recommended to follow these guidelines to ensure optimal performance and thermal management.
  • Vicor recommends using a soft-start circuit and a controlled shutdown sequence to prevent voltage overshoots and ensure reliable operation. This can be achieved using external components and circuitry.
  • While the datasheet specifies the recommended input voltage range, the maximum allowable input voltage ripple and noise are not explicitly stated. Vicor recommends keeping the input voltage ripple and noise below 10% of the nominal input voltage to ensure reliable operation.
  • While the datasheet specifies the operating temperature range, Vicor recommends derating the output power and current at high temperatures to ensure reliable operation. It's recommended to consult with Vicor's application engineers for specific guidance on high-temperature applications.
  • Vicor provides a troubleshooting guide and application notes that cover common issues and debugging techniques. It's recommended to consult these resources and contact Vicor's technical support team for assistance with troubleshooting and debugging.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DCM3623T50T0480T00 Overview

Use the download button to access the DCM3623T50T0480T00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DCM36, or try a keyword search, such as Power Supply Modules
