DCM3623T50T13A6T70 - VICOR

Description: DC DC CONVERTER 12V 161W

Download DCM3623T50T13A6T70 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DCM3623T50T13A6T70 - VICOR - PCB symbol
click to zoom
PCB Footprints

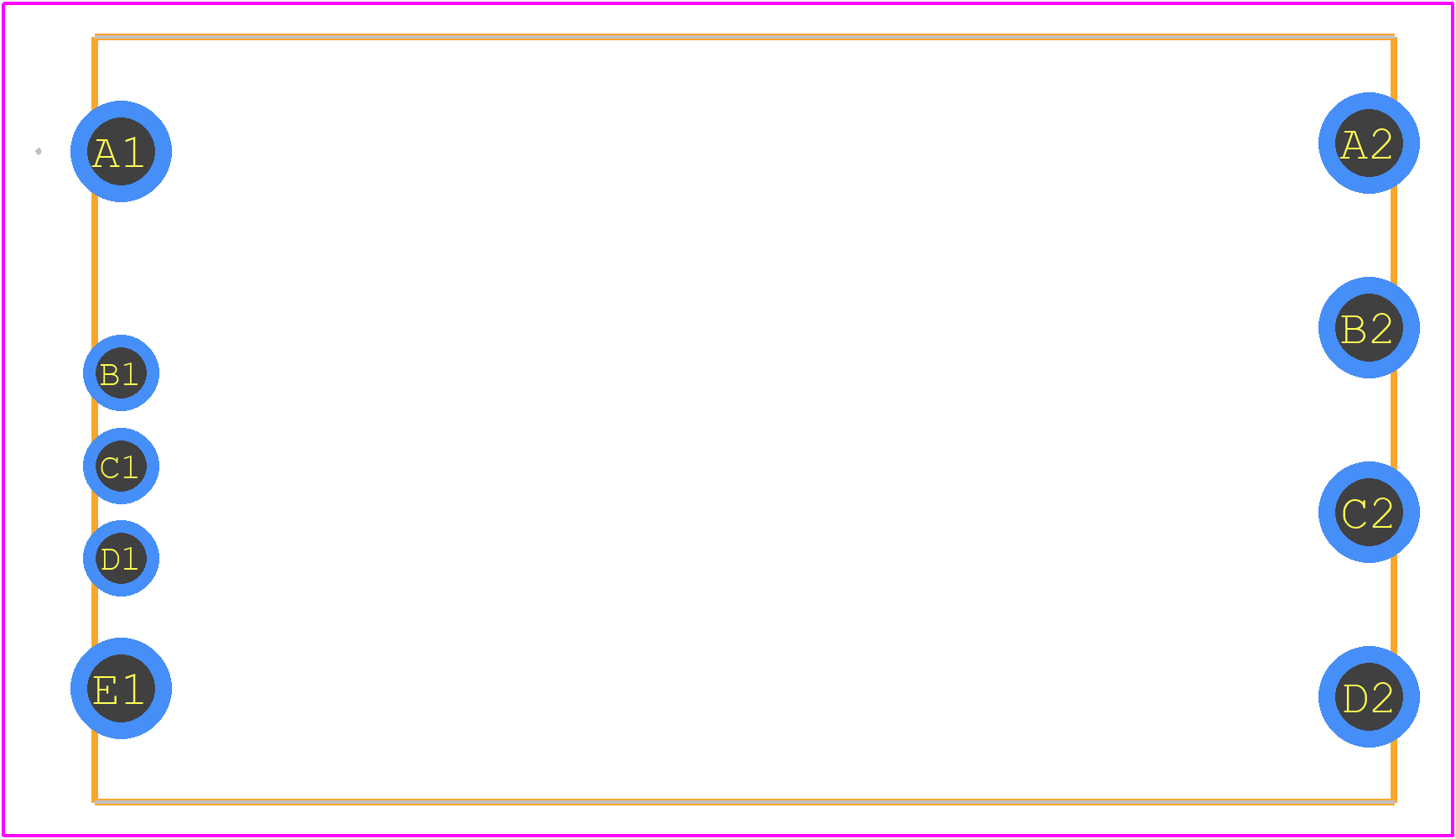

DCM3623T50T13A6T70 - VICOR PCB footprint - Other - Other - DCM3623T50T13A6T70-2
click to zoom
3D Models
DCM3623T50T13A6T70 - VICOR - 3D model - Other - DCM3623T50T13A6T70-2
click to zoom

DCM3623T50T13A6T70 Details

  • Manufacturer Part Number:

    DCM3623T50T13A6T70

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    50 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    30 V

  • JESD-30 Code:

    R-MDMA-P9

  • JESD-609 Code:

    e4

  • Length:

    38.72 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    7.2 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    7.31 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    160 W

  • Trim/Adjustable Output:

    YES

  • Width:

    22.8 mm

DCM3623T50T13A6T70 Frequently Asked Questions (FAQs)

  • Vicor recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer to ensure good thermal conduction. A minimum of 2 oz copper thickness is recommended.
  • To ensure reliable start-up, Vicor recommends a soft-start circuit to limit the inrush current, and a minimum input capacitance of 10uF to ensure stable operation.
  • The maximum allowed input voltage ripple is 10% of the nominal input voltage, or 1.5V, whichever is smaller. Exceeding this limit may affect the module's reliability and performance.
  • The DCM3623T50T13A6T70 is rated for operation up to 100°C, but derating is required above 80°C. Consult the datasheet for derating curves and thermal management guidelines.
  • The DCM3623T50T13A6T70 has a built-in voltage sense pin (VSENSE) that can be connected to a voltage monitoring circuit or a microcontroller for output voltage monitoring.
