DCM3623T75H40C2T00 - VICOR

Description: Isolated DC/DC Converters 3623 DCM 48Vin 36V 3 20W

Download DCM3623T75H40C2T00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DCM3623T75H40C2T00 - VICOR - PCB symbol
click to zoom

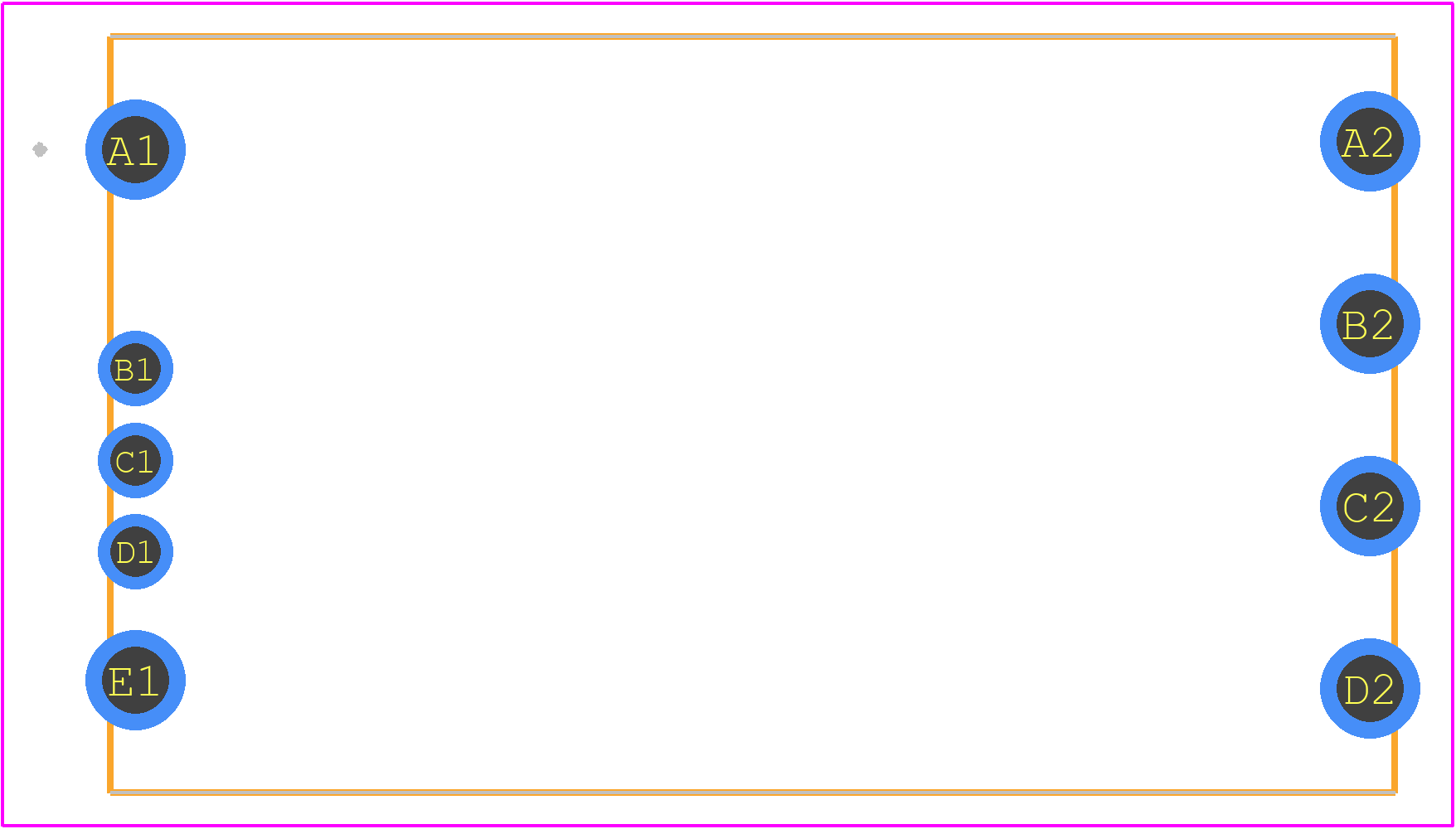

PCB Footprints
DCM3623T75H40C2T00 - VICOR PCB footprint - Other - Other - DCM3623T75H40C2T00-1
click to zoom
3D Models
DCM3623T75H40C2T00 - VICOR - 3D model - Other - DCM3623T75H40C2T00-1
click to zoom

DCM3623T75H40C2T00 Details

  • Manufacturer Part Number:

    DCM3623T75H40C2T00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-9

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Date Of Intro:

    2016-10-13

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    7.3

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    36 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-XDMA-P9

  • JESD-609 Code:

    e4

  • Length:

    38.72 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    95 °C

  • Output Voltage-Max:

    39.6 V

  • Output Voltage-Min:

    21.6 V

  • Output Voltage-Nom:

    36 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    7.31 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    320 W

  • Trim/Adjustable Output:

    YES

  • Width:

    22.8 mm

DCM3623T75H40C2T00 Frequently Asked Questions (FAQs)

  • Vicor recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer to ensure good thermal conductivity. A minimum of 2 oz copper thickness is recommended.
  • To ensure reliable start-up, Vicor recommends a soft-start circuit to limit the inrush current, and a minimum input capacitance of 10uF to ensure stable operation.
  • The maximum allowed input voltage ripple is 10% of the nominal input voltage, with a maximum deviation of ±5% from the nominal input voltage.
  • Yes, the DCM3623T75H40C2T00 is rated for operation up to 100°C ambient temperature, but derating is required above 85°C. Consult the datasheet for derating curves.
  • Vicor recommends checking the input voltage, output voltage, and output current to identify the source of the issue. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DCM3623T75H40C2T00 Overview

Use the download button to access the DCM3623T75H40C2T00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DCM36, or try a keyword search, such as Power Supply Modules
