DCM3623T75X1380M00 - VICOR

Description: Isolated Module DC DC Converter 1 Output 12V 6.7A 9V - 75V Input

Download DCM3623T75X1380M00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DCM3623T75X1380M00 - VICOR - PCB symbol
click to zoom

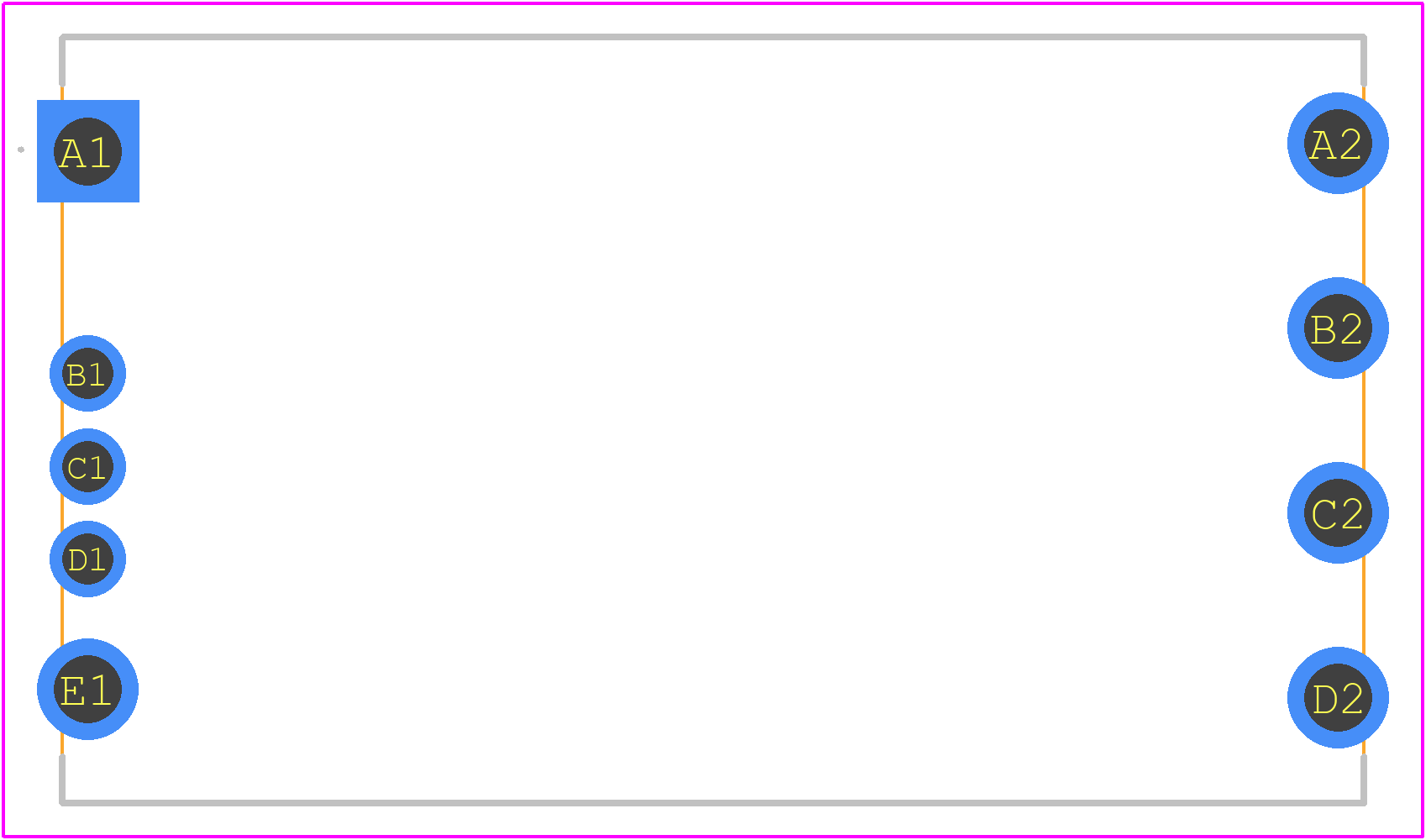

PCB Footprints
DCM3623T75X1380M00 - VICOR PCB footprint - Other - Other - DCM3623T75X1380M00-1
click to zoom
3D Models
DCM3623T75X1380M00 - VICOR - 3D model - Other - DCM3623T75X1380M00-1
click to zoom

DCM3623T75X1380M00 Details

  • Manufacturer Part Number:

    DCM3623T75X1380M00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-9

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Date Of Intro:

    2020-02-06

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE

  • Efficiency (Main Output):

    90.4%

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    42 V

  • JESD-30 Code:

    R-XDMA-T9

  • JESD-609 Code:

    e4

  • Length:

    38.72 mm

  • Load Regulation-Max:

    5.82%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    6.7 A

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    9 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OVER VOLTAGE; OVER CURRENT; UNDER VOLTAGE; SHORT CIRCUIT; THERMAL

  • Ripple Voltage (Main Out):

    0.0965055 Vrms

  • Seated Height-Max:

    7.31 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    80 W

  • Trim/Adjustable Output:

    YES

  • Warm-up Time:

    0.01082 s

  • Width:

    22.8 mm

DCM3623T75X1380M00 Frequently Asked Questions (FAQs)

  • Vicor provides a reference design guide and thermal management guidelines in their application notes and whitepapers. It's recommended to follow these guidelines to ensure optimal performance and thermal management.
  • Vicor recommends using a soft-start circuit and a controlled shutdown sequence to prevent voltage overshoots and ensure reliable operation. This can be achieved using external components and circuitry.
  • While the datasheet specifies the recommended input voltage range, Vicor recommends keeping the input voltage ripple and noise below 10% of the nominal input voltage to ensure reliable operation and minimize electromagnetic interference (EMI).
  • While the datasheet specifies the operating temperature range, Vicor recommends derating the output power and current at high temperatures to ensure reliable operation and prevent overheating. Consult Vicor's application notes and thermal management guidelines for more information.
  • Vicor provides a troubleshooting guide and application notes that cover common issues and debugging techniques. Additionally, Vicor's technical support team can provide assistance and guidance for specific issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DCM3623T75X1380M00 Overview

Use the download button to access the DCM3623T75X1380M00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DCM36, or try a keyword search, such as Power Supply Modules
