The maximum operating temperature range for the DCM3623T75X1780T70 is -40°C to +115°C, with a derating of 1.5% per °C above 100°C.
Proper thermal management can be achieved by providing adequate airflow, using a heat sink, and ensuring the module is mounted on a thermally conductive surface. Vicor recommends a minimum airflow of 200 LFM and a heat sink with a thermal resistance of ≤ 1°C/W.
Vicor recommends a minimum input capacitance of 100 μF, with a voltage rating of at least 100 V, to ensure stable operation and minimize input ripple.
Yes, the DCM3623T75X1780T70 is designed to meet the requirements of high-reliability and military applications. Vicor offers various screening options, including burn-in and environmental testing, to ensure the module meets the necessary standards.
Vicor provides a troubleshooting guide in the datasheet, which covers common issues such as output voltage deviations, input voltage limitations, and thermal shutdown. Additionally, Vicor's application support team is available to assist with troubleshooting and design support.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
DCM3623T75X1780T70 Overview

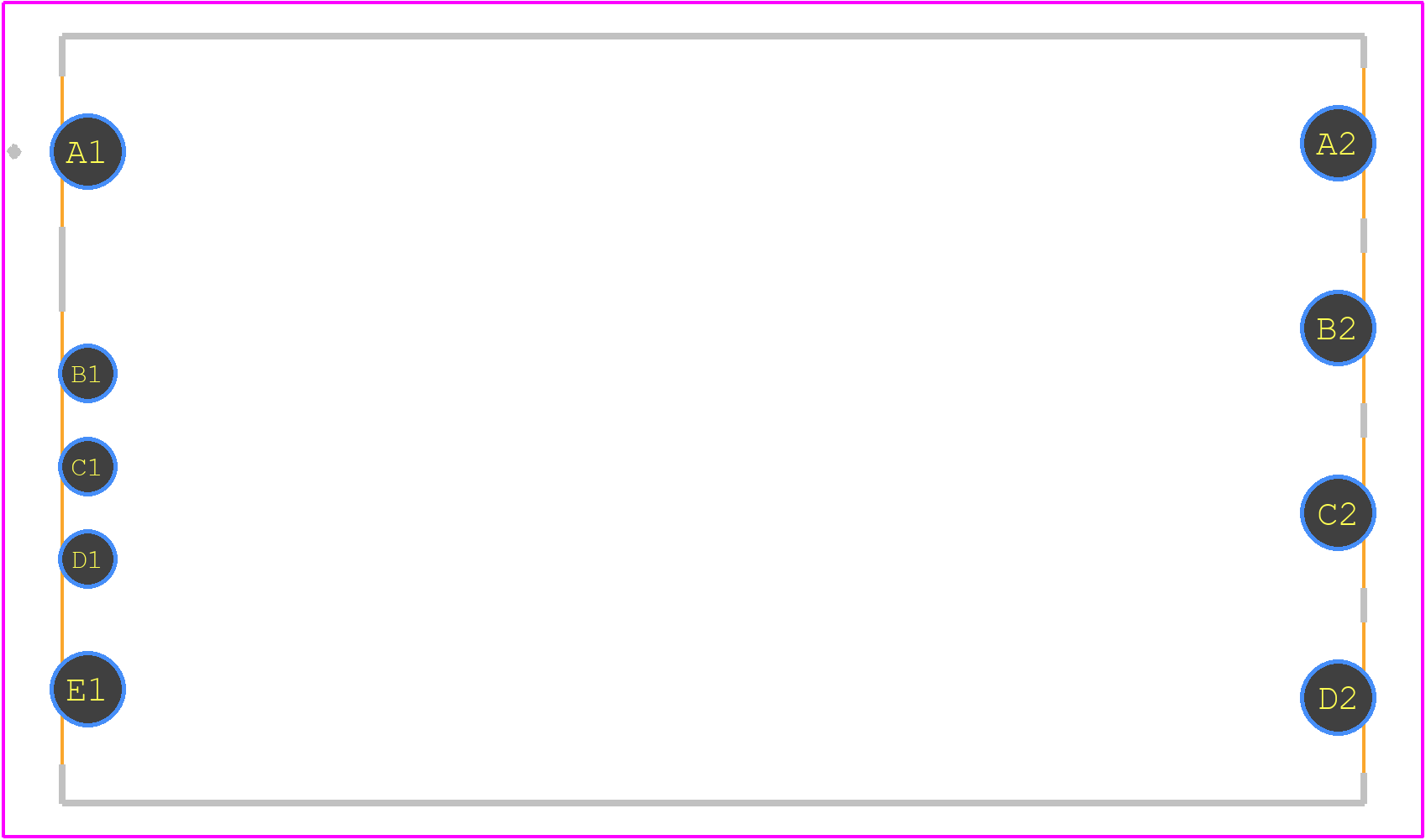

Use the download button to access the DCM3623T75X1780T70 schematic symbol, PCB footprint, and 3D model.
