DCM3623T75X5380T00 - VICOR

Description: Isolated DC/DC Converters - Through Hole 80W 9-75Vin 53Vout Isolated

Download DCM3623T75X5380T00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DCM3623T75X5380T00 - VICOR - PCB symbol
click to zoom
PCB Footprints

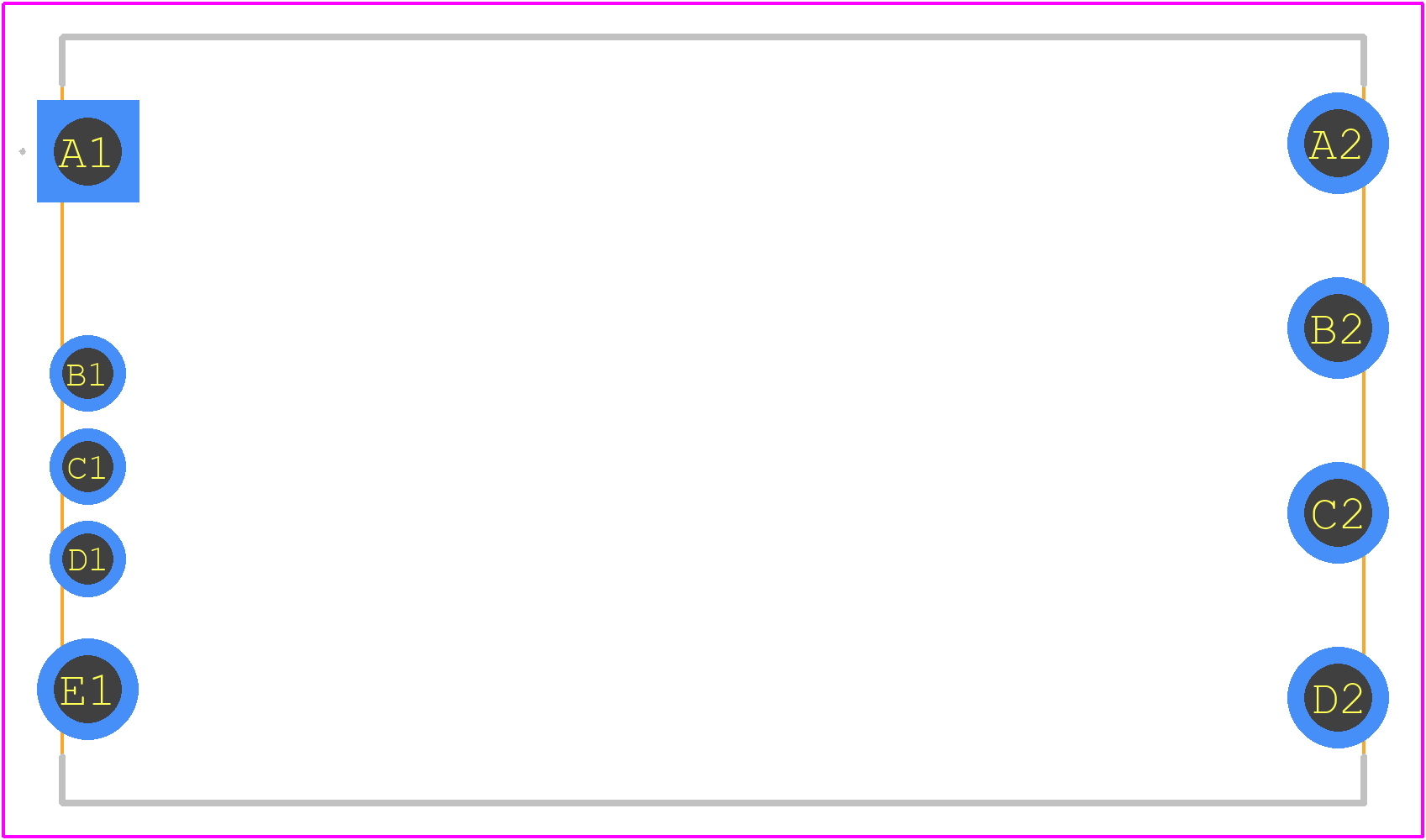

DCM3623T75X5380T00 - VICOR PCB footprint - Other - Other - DCM3623T75X5380T00-1
click to zoom
3D Models
DCM3623T75X5380T00 - VICOR - 3D model - Other - DCM3623T75X5380T00-1
click to zoom

DCM3623T75X5380T00 Details

  • Manufacturer Part Number:

    DCM3623T75X5380T00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-9

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE

  • Efficiency (Main Output):

    86.7%

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    42 V

  • JESD-30 Code:

    R-XDMA-T9

  • JESD-609 Code:

    e4

  • Length:

    38.72 mm

  • Load Regulation-Max:

    5.29%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.7 A

  • Output Voltage-Max:

    52.8 V

  • Output Voltage-Min:

    36 V

  • Output Voltage-Nom:

    48 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; SHORT CIRCUIT; THERMAL

  • Ripple Voltage (Main Out):

    0.1792245 Vrms

  • Seated Height-Max:

    7.31 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    80 W

  • Trim/Adjustable Output:

    YES

  • Warm-up Time:

    0.3812 s

  • Width:

    22.8 mm
