Vicor recommends a 4-layer PCB with a solid ground plane, and thermal vias under the module to dissipate heat. A thermal interface material (TIM) should be used between the module and the heat sink. Vicor provides a reference design and layout guidelines in their application notes.
To ensure reliable start-up and shutdown, Vicor recommends a soft-start circuit to limit inrush current, and a voltage supervisor to monitor the input voltage. Additionally, a capacitor should be placed at the output to filter out noise and ensure a stable output voltage.
The maximum allowable capacitance on the output of the DCM3623TA5N31B4T70 is 2200uF. Exceeding this value may cause instability or oscillation in the module.
Yes, the DCM3623TA5N31B4T70 is designed to meet the requirements of high-reliability and military applications. Vicor offers a range of screening options, including burn-in and environmental testing, to ensure the module meets the required standards.
To troubleshoot issues with the DCM3623TA5N31B4T70, Vicor recommends checking the input voltage, output load, and thermal management. Use an oscilloscope to monitor the output voltage and current, and check for any signs of overheating or electrical overstress. Vicor also provides a troubleshooting guide in their application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DCM3623TA5N31B4T70 Overview

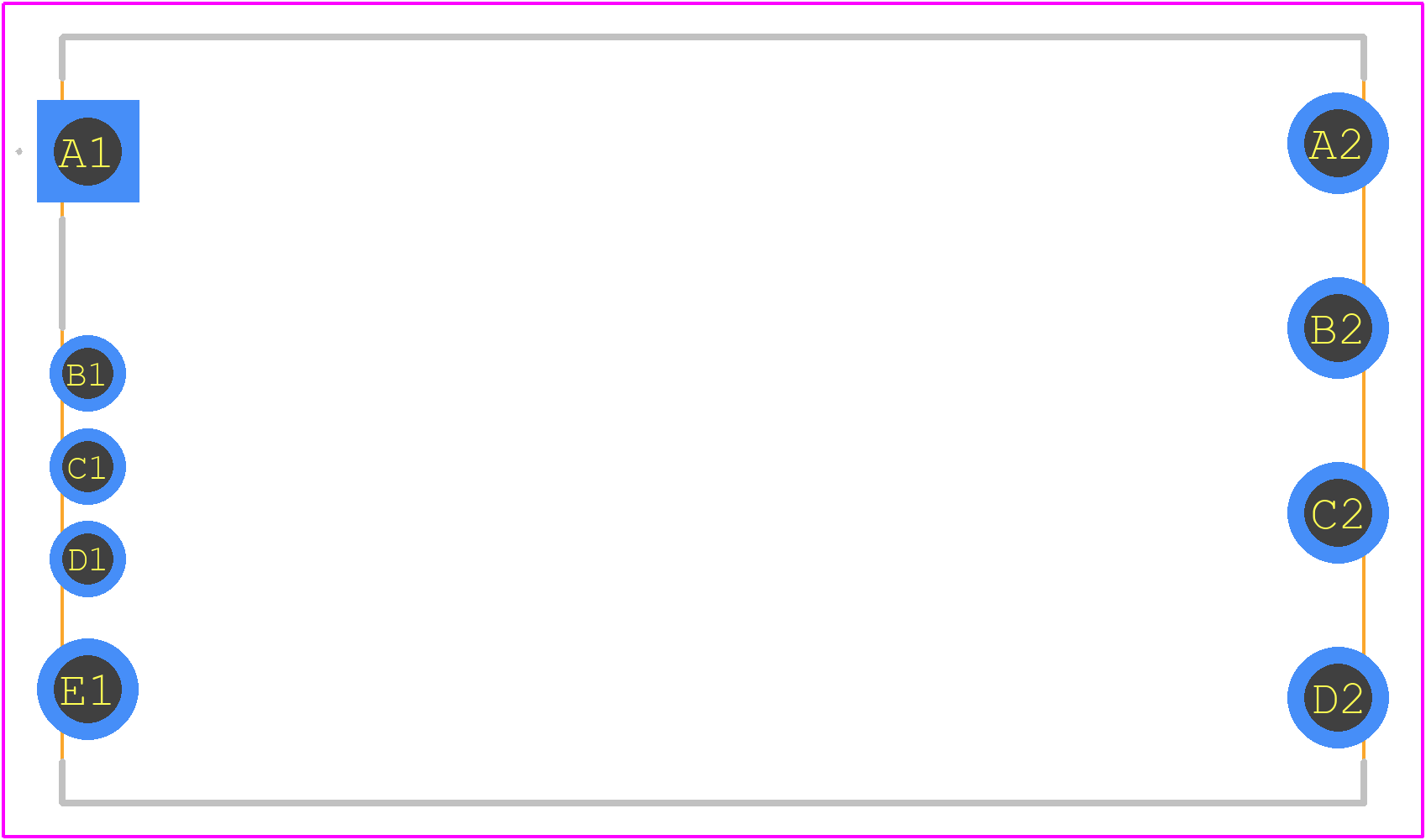

Use the download button to access the DCM3623TA5N31B4T70 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DCM36,
or try a keyword search, such as Power Supply Modules
