DCM3623TA5N53B4M00 footprint, schematic symbol and 3D model by VICOR

Symbol

click to zoom

PCB Footprints

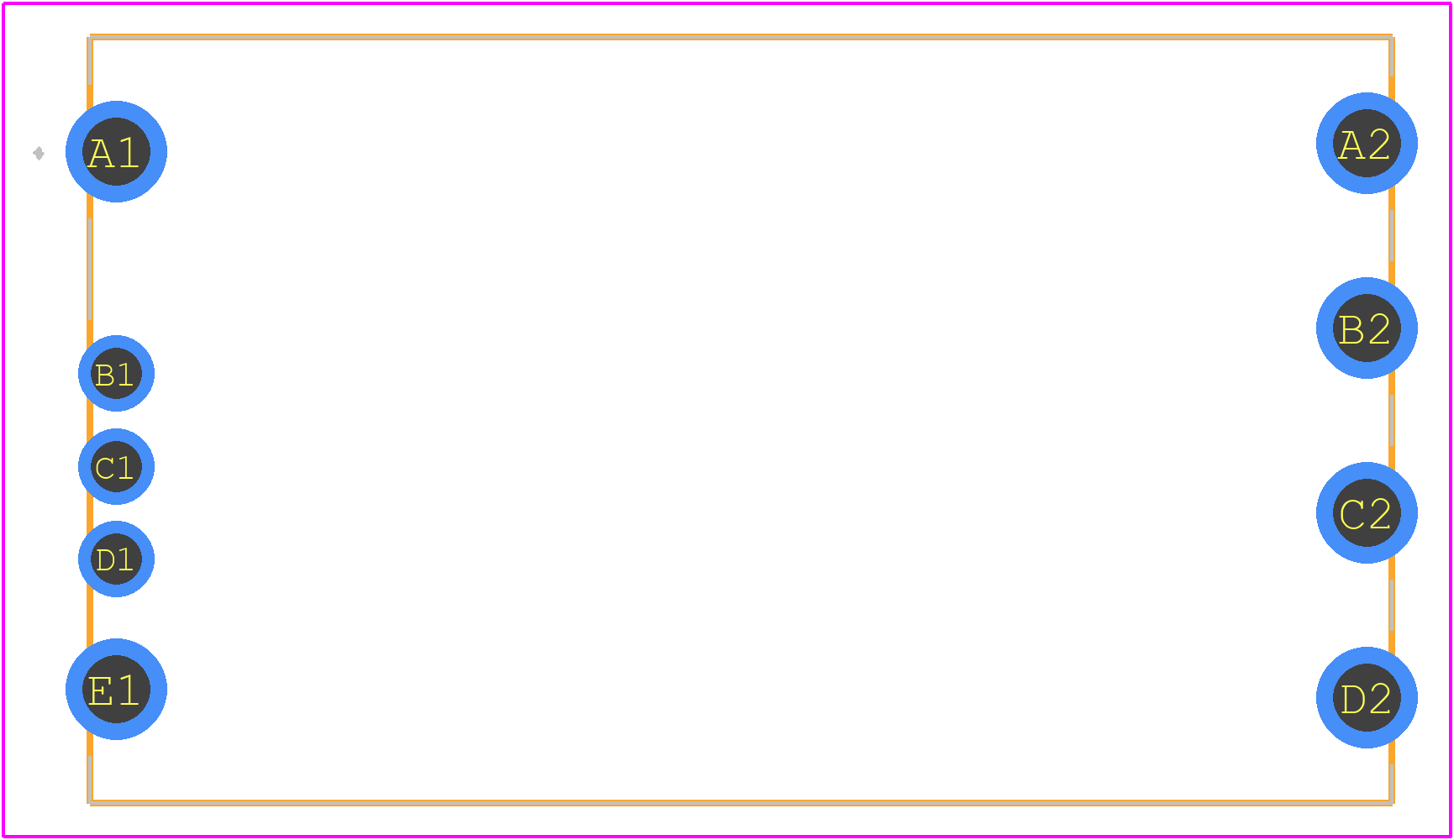

DCM3623TA5N53B4M00 - VICOR PCB footprint - Other - Other - DCM3623TA5N53B4M00-2

click to zoom

3D Models

DCM3623TA5N53B4M00 - VICOR - 3D model - Other - DCM3623TA5N53B4M00-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DCM3623TA5N53B4M00
Part Number DCM3623TA5N53B4M00
Manufacturer VICOR
Pin Count 9
Part Category Power Supply
Package Category Other
Footprint Name Other - DCM3623TA5N53B4M00-2
Released Date Jul 7, 2020
Last Modified Date Mar 18, 2024 9:36 AM UTC
Pinout / Pin List Click Here (Member Only)

DCM3623TA5N53B4M00 Details

Manufacturer Part Number:
DCM3623TA5N53B4M00
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
PACKAGE-9
ECCN Code:
EAR99
Factory Lead Time:
28 Weeks
Manufacturer:
Vicor Corporation
YTEOL:
7
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CSA, EN, IEC, UL
Input Voltage-Max:
154 V
Input Voltage-Min:
43 V
Input Voltage-Nom:
100 V
JESD-30 Code:
R-XDMA-T9
JESD-609 Code:
e4
Length:
38.72 mm
Load Regulation-Max:
5.26291%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
9
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Output Current-Max:
5 A
Output Voltage-Max:
52.8 V
Output Voltage-Min:
28.8 V
Output Voltage-Nom:
48 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Protections:
OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; SHORT CIRCUIT; THERMAL
Ripple Voltage (Main Out):
0.333704 Vrms
Screening Level:
EN/IEC/UL 62368-1
Seated Height-Max:
7.31 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
THROUGH-HOLE
Terminal Position:
DUAL
Total Power Output-Max:
240 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.2872 s
Width:
22.8 mm

DCM3623TA5N53B4M00 Frequently Asked Questions (FAQs)

Vicor provides a reference design guide and thermal management guidelines in their application notes and whitepapers. It's recommended to follow these guidelines to ensure optimal performance and thermal management.
Vicor recommends using a soft-start circuit and a controlled shutdown sequence to prevent voltage overshoots and ensure reliable operation. This can be achieved using external components and circuitry.
Vicor provides EMI and RFI guidelines in their application notes, including recommendations for shielding, filtering, and layout considerations to minimize electromagnetic interference and radio-frequency interference.
Yes, the DCM3623TA5N53B4M00 is designed for high-reliability and high-temperature applications. However, it's recommended to consult with Vicor's application engineers to ensure the device meets the specific requirements of your application.
Vicor provides troubleshooting guides and application notes that cover common issues and their solutions. It's recommended to consult these resources and contact Vicor's technical support team if needed.

Trust Checks

Expert Contribution

System Verified

Community Approved

DCM3623TA5N53B4M00 Overview

Use the download button to access the DCM3623TA5N53B4M00 schematic symbol, PCB footprint, and 3D model.
