DCM4623TD2H53E0M00 - VICOR

Description: Isolated DC/DC Converters 4623 DCM 300Vin 48V 500W

Download DCM4623TD2H53E0M00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DCM4623TD2H53E0M00 - VICOR - PCB symbol
click to zoom

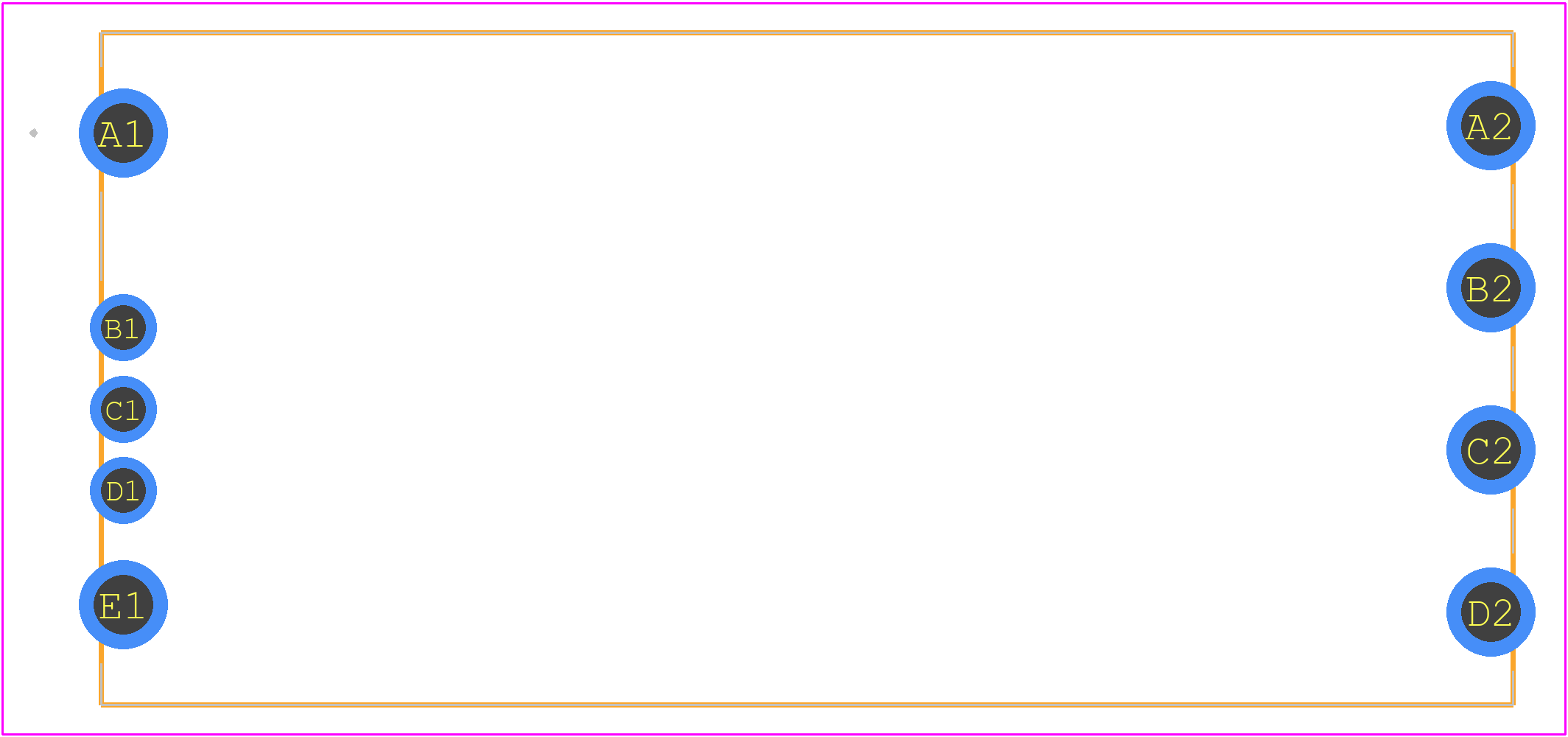

PCB Footprints
DCM4623TD2H53E0M00 - VICOR PCB footprint - Other - Other - DCM4623TD2H53E0M00-1
click to zoom
3D Models
DCM4623TD2H53E0M00 - VICOR - 3D model - Other - DCM4623TD2H53E0M00-1
click to zoom

DCM4623TD2H53E0M00 Details

  • Manufacturer Part Number:

    DCM4623TD2H53E0M00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-9

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    9.2

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    420 V

  • Input Voltage-Min:

    200 V

  • Input Voltage-Nom:

    300 V

  • JESD-30 Code:

    R-XDMA-P9

  • JESD-609 Code:

    e4

  • Length:

    47.91 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    80 °C

  • Output Voltage-Max:

    52.8 V

  • Output Voltage-Min:

    28.8 V

  • Output Voltage-Nom:

    48 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    7.31 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    500 W

  • Trim/Adjustable Output:

    YES

  • Width:

    22.8 mm

DCM4623TD2H53E0M00 Frequently Asked Questions (FAQs)

  • Vicor recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer to ensure good thermal conductivity. A minimum of 2 oz copper thickness is recommended.
  • To ensure reliable start-up, Vicor recommends a soft-start circuit to limit the inrush current, and a minimum input capacitance of 10uF to ensure stable voltage regulation.
  • The maximum allowed input voltage ripple for the DCM module is 10% of the nominal input voltage, with a maximum deviation of ±5% from the nominal input voltage.
  • Yes, the DCM module is rated for operation up to 100°C ambient temperature, but derating is required above 85°C. Consult the datasheet for derating curves and thermal management guidelines.
  • The DCM module provides a voltage sense pin (VSENSE) and a current sense pin (ISENSE) for monitoring output voltage and current. These pins can be connected to a monitoring circuit or a microcontroller for real-time monitoring.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DCM4623TD2H53E0M00 Overview

Use the download button to access the DCM4623TD2H53E0M00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DCM46, or try a keyword search, such as Power Supply Modules
