DCM4623TD2K13E0T00 footprint, schematic symbol and 3D model by VICOR

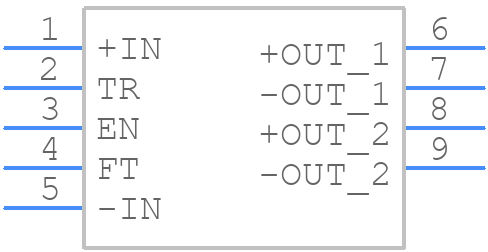

Symbol

click to zoom

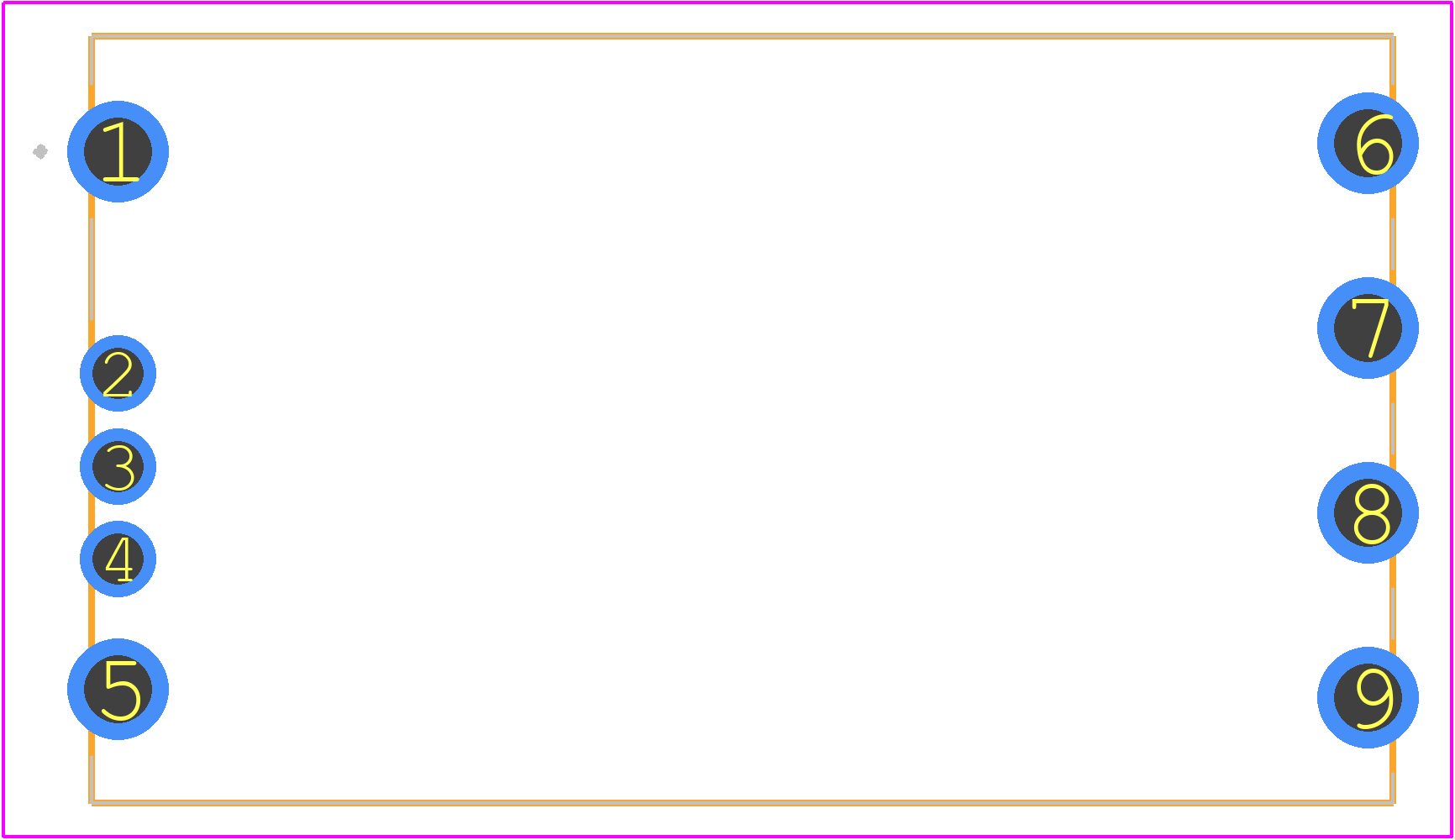

PCB Footprints

DCM4623TD2K13E0T00 - VICOR PCB footprint - Other - Other - DCM MODULE

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DCM4623TD2K13E0T00
Part Number DCM4623TD2K13E0T00
Manufacturer VICOR
Pin Count 9
Part Category Power Supply
Package Category Other
Footprint Name Other - DCM MODULE
Released Date Dec 12, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DCM4623TD2K13E0T00 Details

Manufacturer Part Number:
DCM4623TD2K13E0T00
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
Module-9
ECCN Code:
EAR99
Factory Lead Time:
28 Weeks
Date Of Intro:
2016-10-13
Manufacturer:
Vicor Corporation
YTEOL:
9.2
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
420 V
Input Voltage-Min:
160 V
Input Voltage-Nom:
270 V
JESD-30 Code:
R-XDMA-P9
Length:
47.91 mm
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
9
Operating Temperature-Max:
80 °C
Output Voltage-Max:
13.2 V
Output Voltage-Min:
7.2 V
Output Voltage-Nom:
12 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
7.31 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
500 W
Trim/Adjustable Output:
YES
Width:
22.8 mm

DCM4623TD2K13E0T00 Frequently Asked Questions (FAQs)

Vicor recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
To ensure reliable start-up, Vicor recommends a soft-start circuit or a ramp-up of the input voltage to prevent inrush currents and ensure a smooth start-up.
The maximum allowed capacitance on the output of the DCM4623TD2K13E0T00 is 220uF. Exceeding this value may cause instability or oscillations.
While the DCM4623TD2K13E0T00 is rated for operation up to 100°C, Vicor recommends derating the output power by 1% per degree Celsius above 80°C to ensure reliable operation.
Vicor recommends checking the input voltage, output voltage, and current, as well as verifying the PCB layout and thermal design. Consult the datasheet and application notes for more information.

Trust Checks

Expert Contribution

System Verified

Community Approved

DCM4623TD2K13E0T00 Overview

Use the download button to access the DCM4623TD2K13E0T00 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like DCM46, or try a keyword search, such as Power Supply Modules
