DCM4623TD2K17E0T00 - VICOR

Description: Isolated DC/DC Converters 4623 DCM 270Vin 15V 500W

Download DCM4623TD2K17E0T00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

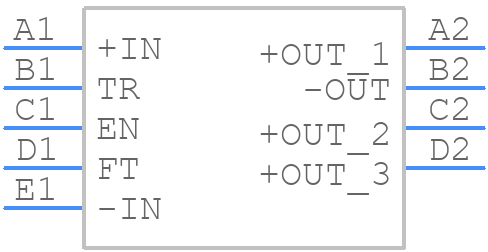

Symbol
DCM4623TD2K17E0T00 - VICOR - PCB symbol
click to zoom

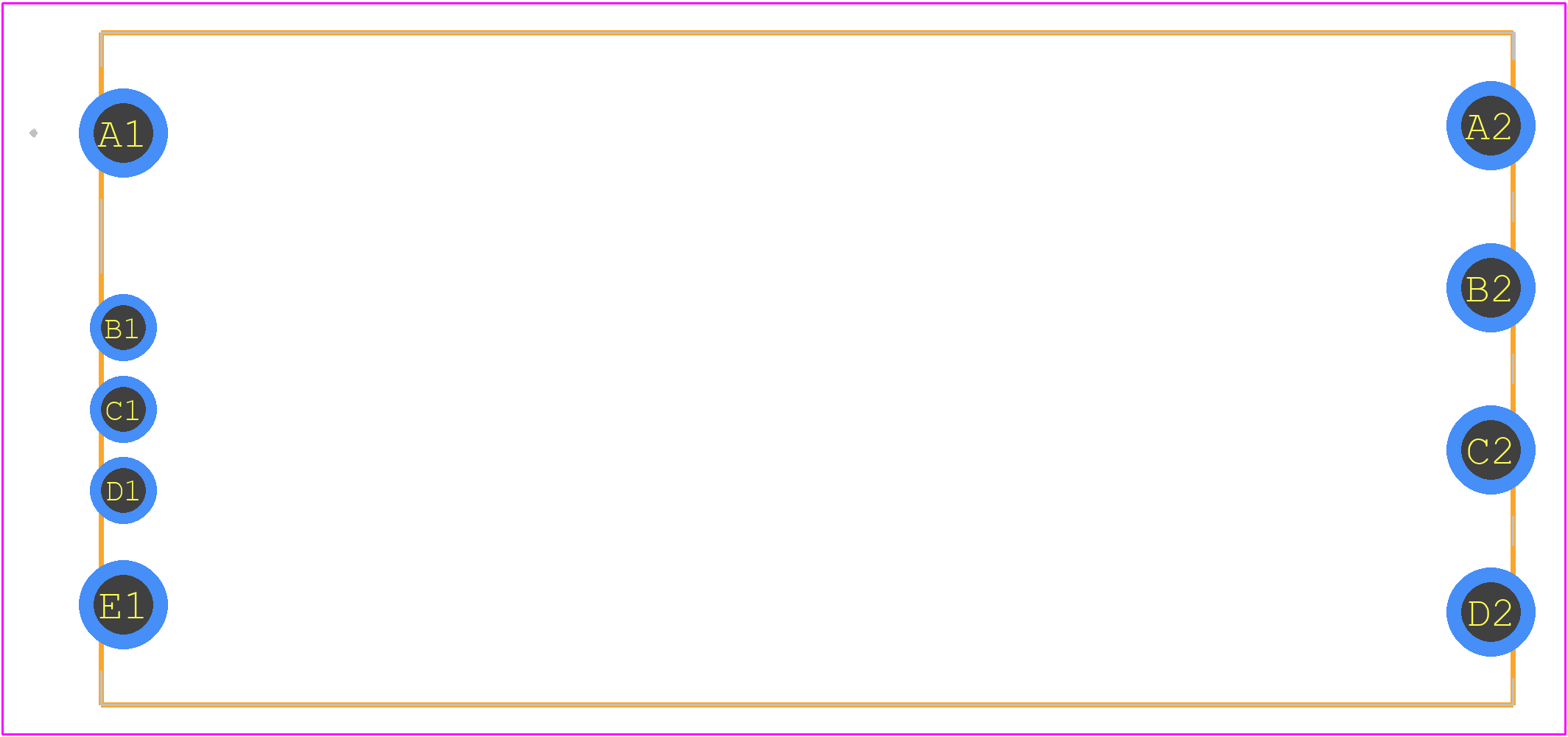

PCB Footprints
DCM4623TD2K17E0T00 - VICOR PCB footprint - Other - Other - DCM4623TD2K17E0T00-1
click to zoom
3D Models
DCM4623TD2K17E0T00 - VICOR - 3D model - Other - DCM4623TD2K17E0T00-1
click to zoom

DCM4623TD2K17E0T00 Details

  • Manufacturer Part Number:

    DCM4623TD2K17E0T00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-9

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Date Of Intro:

    2016-10-13

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    9.2

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, EN, TUV, UL

  • Control Mode:

    VOLTAGE-MODE

  • Efficiency (Main Output):

    93.1%

  • Input Voltage-Max:

    420 V

  • Input Voltage-Min:

    160 V

  • Input Voltage-Nom:

    270 V

  • JESD-30 Code:

    R-XDMA-T9

  • Length:

    47.91 mm

  • Load Regulation-Max:

    5.82%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    33.4 A

  • Output Voltage-Max:

    16.5 V

  • Output Voltage-Min:

    9 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Protections:

    OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL

  • Ripple Voltage (Main Out):

    0.2548735 Vrms

  • Seated Height-Max:

    7.31 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    500 W

  • Trim/Adjustable Output:

    YES

  • Width:

    22.8 mm

DCM4623TD2K17E0T00 Frequently Asked Questions (FAQs)

  • Vicor provides a reference design guide and thermal management guidelines in their application notes and whitepapers. It's recommended to follow these guidelines to ensure optimal performance and thermal management.
  • Vicor provides guidance on capacitor selection in their datasheet and application notes. The selection depends on factors such as input voltage, output voltage, and desired ripple current. It's recommended to consult with Vicor's application engineers or follow their recommended component lists.
  • The maximum allowable ripple current for the input and output capacitors is not explicitly stated in the datasheet. However, Vicor recommends following the capacitor manufacturer's guidelines and ensuring that the ripple current does not exceed 30-40% of the capacitor's rated current.
  • Vicor provides a fault monitoring pin that can be used to detect overcurrent, overvoltage, and undervoltage conditions. The module also has a built-in overcurrent protection feature. It's recommended to consult with Vicor's application engineers or follow their recommended implementation guidelines.
  • Vicor recommends a specific startup sequence and timing to ensure proper operation and minimize stress on the module. This information can be found in the datasheet and application notes.
