DCM4623TD2K53E0M70 - VICOR

Description: Isolated DC/DC Converters 4623 DCM 500W 270Vin 48V

Download DCM4623TD2K53E0M70 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DCM4623TD2K53E0M70 - VICOR - PCB symbol
click to zoom

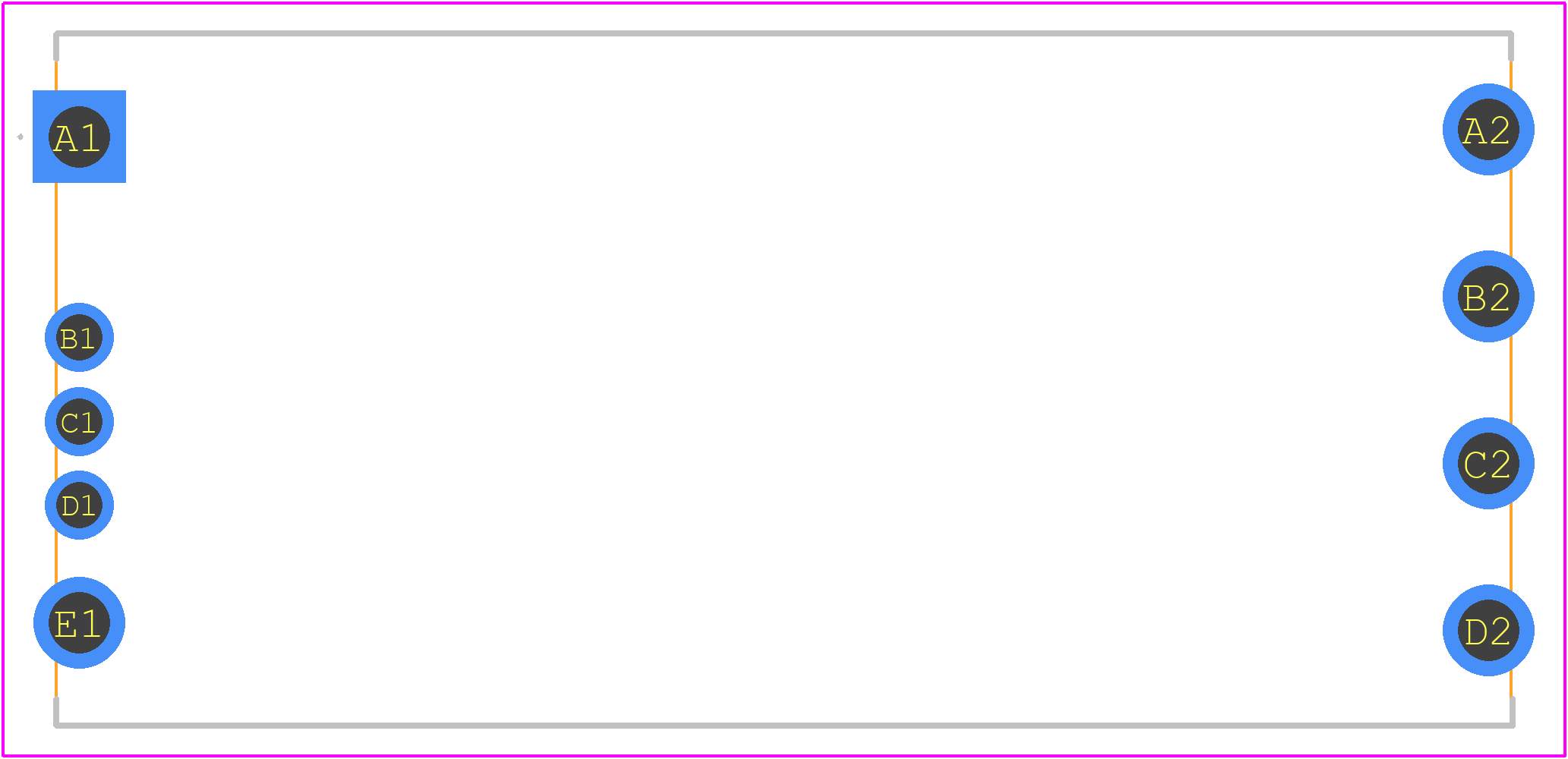

PCB Footprints
DCM4623TD2K53E0M70 - VICOR PCB footprint - Other - Other - DCM4623TD2K53E0M70-2
click to zoom
3D Models
DCM4623TD2K53E0M70 - VICOR - 3D model - Other - DCM4623TD2K53E0M70-2
click to zoom

DCM4623TD2K53E0M70 Details

  • Manufacturer Part Number:

    DCM4623TD2K53E0M70

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-9

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    9.2

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, EN, TUV, UL

  • Control Mode:

    VOLTAGE-MODE

  • Efficiency (Main Output):

    93.6%

  • Input Voltage-Max:

    420 V

  • Input Voltage-Min:

    160 V

  • Input Voltage-Nom:

    270 V

  • JESD-30 Code:

    R-XDMA-T9

  • Length:

    47.91 mm

  • Load Regulation-Max:

    2.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    10.42 A

  • Output Voltage-Max:

    52.8 V

  • Output Voltage-Min:

    28.8 V

  • Output Voltage-Nom:

    48 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Protections:

    OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL ;INPUT UNDER VOLTAGE

  • Ripple Voltage (Main Out):

    0.4026365 Vrms

  • Seated Height-Max:

    7.31 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    MILITARY

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    500 W

  • Trim/Adjustable Output:

    YES

  • Width:

    22.8 mm

DCM4623TD2K53E0M70 Frequently Asked Questions (FAQs)

  • Vicor provides a reference design guide and thermal management guidelines in their application notes and whitepapers. It's recommended to follow these guidelines to ensure optimal performance and thermal management.
  • Vicor provides guidance on capacitor selection in their datasheet and application notes. The selection depends on factors such as input voltage, output voltage, and desired ripple current. It's recommended to consult with Vicor's technical support or follow their recommended component list.
  • The maximum allowable ripple current for the input and output capacitors is not explicitly stated in the datasheet. However, Vicor recommends following the capacitor manufacturer's guidelines and ensuring that the ripple current does not exceed 30-40% of the capacitor's rated current.
  • Vicor provides a fault monitoring pin that can be used to detect overcurrent, overvoltage, and undervoltage conditions. The module also has a built-in overcurrent protection feature. It's recommended to consult with Vicor's technical support or follow their application notes for implementation details.
  • Vicor provides guidelines for soldering and rework in their application notes and datasheet. It's recommended to follow these guidelines to ensure that the module is properly soldered and reworked to prevent damage.
