Part Image

DCM4623TD2K53E0T00 - VICOR

Description: Isolated DC/DC Converters 4623 DCM 270Vin 48V 500W

Download DCM4623TD2K53E0T00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DCM4623TD2K53E0T00 - VICOR - PCB symbol
click to zoom
PCB Footprints

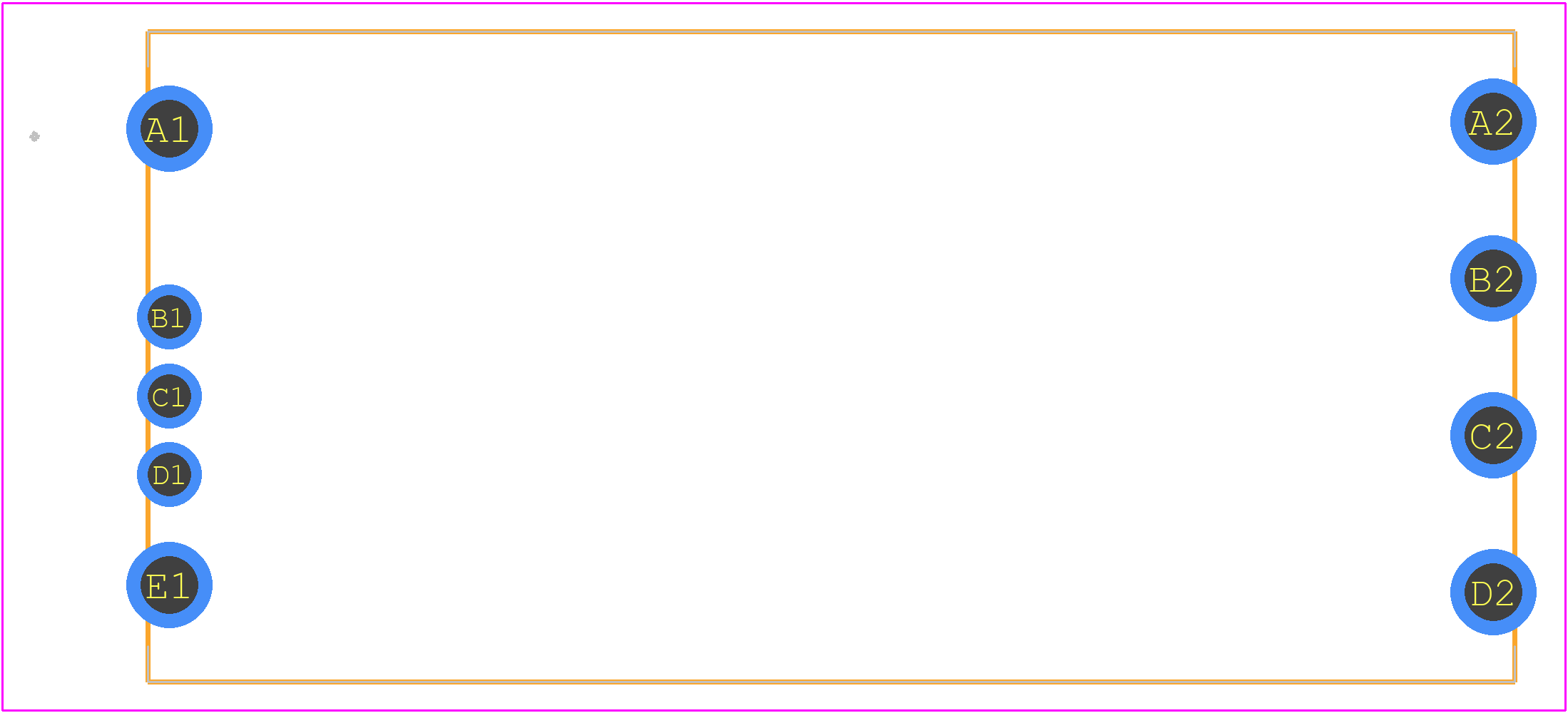

DCM4623TD2K53E0T00 - VICOR PCB footprint - Other - Other - DCM4623TD2K53E0T00-2
click to zoom
3D Models
DCM4623TD2K53E0T00 - VICOR - 3D model - Other - DCM4623TD2K53E0T00-2
click to zoom

DCM4623TD2K53E0T00 Details

  • Manufacturer Part Number:

    DCM4623TD2K53E0T00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-9

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Date Of Intro:

    2016-10-13

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    9.2

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    420 V

  • Input Voltage-Min:

    160 V

  • Input Voltage-Nom:

    270 V

  • JESD-30 Code:

    R-XDMA-P9

  • Length:

    47.91 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    80 °C

  • Output Voltage-Max:

    52.8 V

  • Output Voltage-Min:

    28.8 V

  • Output Voltage-Nom:

    48 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    7.31 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    500 W

  • Trim/Adjustable Output:

    YES

  • Width:

    22.8 mm

DCM4623TD2K53E0T00 Frequently Asked Questions (FAQs)

  • Vicor recommends a 2-layer or 4-layer PCB with a solid ground plane and thermal vias to the bottom layer to ensure optimal thermal performance. A minimum of 2 oz copper thickness is recommended.
  • To ensure reliable start-up, Vicor recommends a soft-start circuit or a ramp-up of the input voltage to prevent inrush currents. Additionally, a minimum input capacitance of 10uF is recommended.
  • The maximum allowed input voltage ripple for the DCM4623TD2K53E0T00 is 10% of the nominal input voltage. Exceeding this limit may affect the module's performance and reliability.
  • The DCM4623TD2K53E0T00 is rated for operation up to 100°C ambient temperature. However, derating may be necessary for temperatures above 85°C. Consult Vicor's application notes for more information.
  • Vicor recommends checking the input voltage, output voltage, and current levels using an oscilloscope or a multimeter. Consult Vicor's troubleshooting guide for more information.
