DCM4623TD2K53E0T70 - VICOR

Description: Isolated DC/DC Converters 4623 DCM 500W 270Vin 48V

Download DCM4623TD2K53E0T70 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DCM4623TD2K53E0T70 - VICOR - PCB symbol
click to zoom

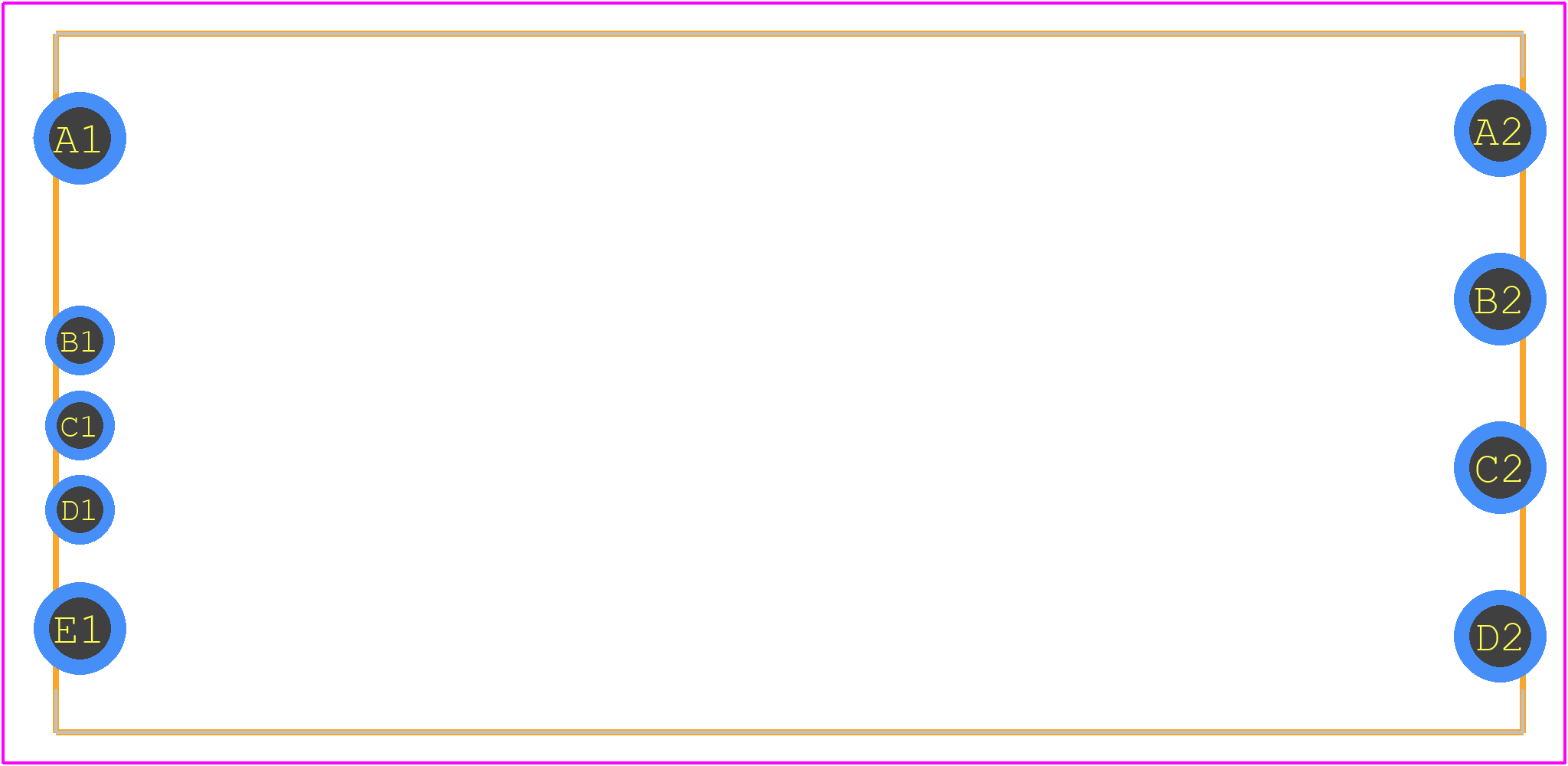

PCB Footprints
DCM4623TD2K53E0T70 - VICOR PCB footprint - Other - Other - DCM4623TD2H15E0T00-2
click to zoom
3D Models
DCM4623TD2K53E0T70 - VICOR - 3D model - Other - DCM4623TD2H15E0T00-2
click to zoom

DCM4623TD2K53E0T70 Details

  • Manufacturer Part Number:

    DCM4623TD2K53E0T70

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-9

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    9.2

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, EN, TUV, UL

  • Control Mode:

    VOLTAGE-MODE

  • Efficiency (Main Output):

    93.6%

  • Input Voltage-Max:

    420 V

  • Input Voltage-Min:

    160 V

  • Input Voltage-Nom:

    270 V

  • JESD-30 Code:

    R-XDMA-T9

  • Length:

    47.91 mm

  • Load Regulation-Max:

    2.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    10.42 A

  • Output Voltage-Max:

    52.8 V

  • Output Voltage-Min:

    28.8 V

  • Output Voltage-Nom:

    48 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Protections:

    OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL ;INPUT UNDER VOLTAGE

  • Ripple Voltage (Main Out):

    0.4026365 Vrms

  • Seated Height-Max:

    7.31 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    500 W

  • Trim/Adjustable Output:

    YES

  • Width:

    22.8 mm

DCM4623TD2K53E0T70 Frequently Asked Questions (FAQs)

  • Vicor provides a reference design guide and thermal management guidelines in their application notes and whitepapers. It's recommended to follow these guidelines to ensure optimal performance and thermal management.
  • Vicor provides guidance on capacitor selection in their application notes and datasheets. The selection depends on factors such as input voltage, output voltage, and ripple current requirements. It's recommended to consult with Vicor's application engineers or follow their recommended component lists.
  • The maximum allowable ripple current for the input and output capacitors is not explicitly stated in the datasheet. However, Vicor recommends following the capacitor manufacturer's guidelines and derating the ripple current by 20-30% to ensure reliable operation.
  • Vicor provides guidance on overcurrent protection and fault monitoring in their application notes and datasheets. It's recommended to use external circuitry such as current sense resistors, op-amps, and comparators to implement overcurrent protection and fault monitoring.
  • Vicor recommends a controlled startup and shutdown sequence to prevent damage to the module and ensure reliable operation. The recommended sequence is typically outlined in the application notes and datasheets.
