DCM4623TD2N26C8T00 - VICOR

Description: Isolated DC/DC Converters 4623 DCM 275Vin 24V 375W

Download DCM4623TD2N26C8T00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DCM4623TD2N26C8T00 - VICOR - PCB symbol
click to zoom
PCB Footprints

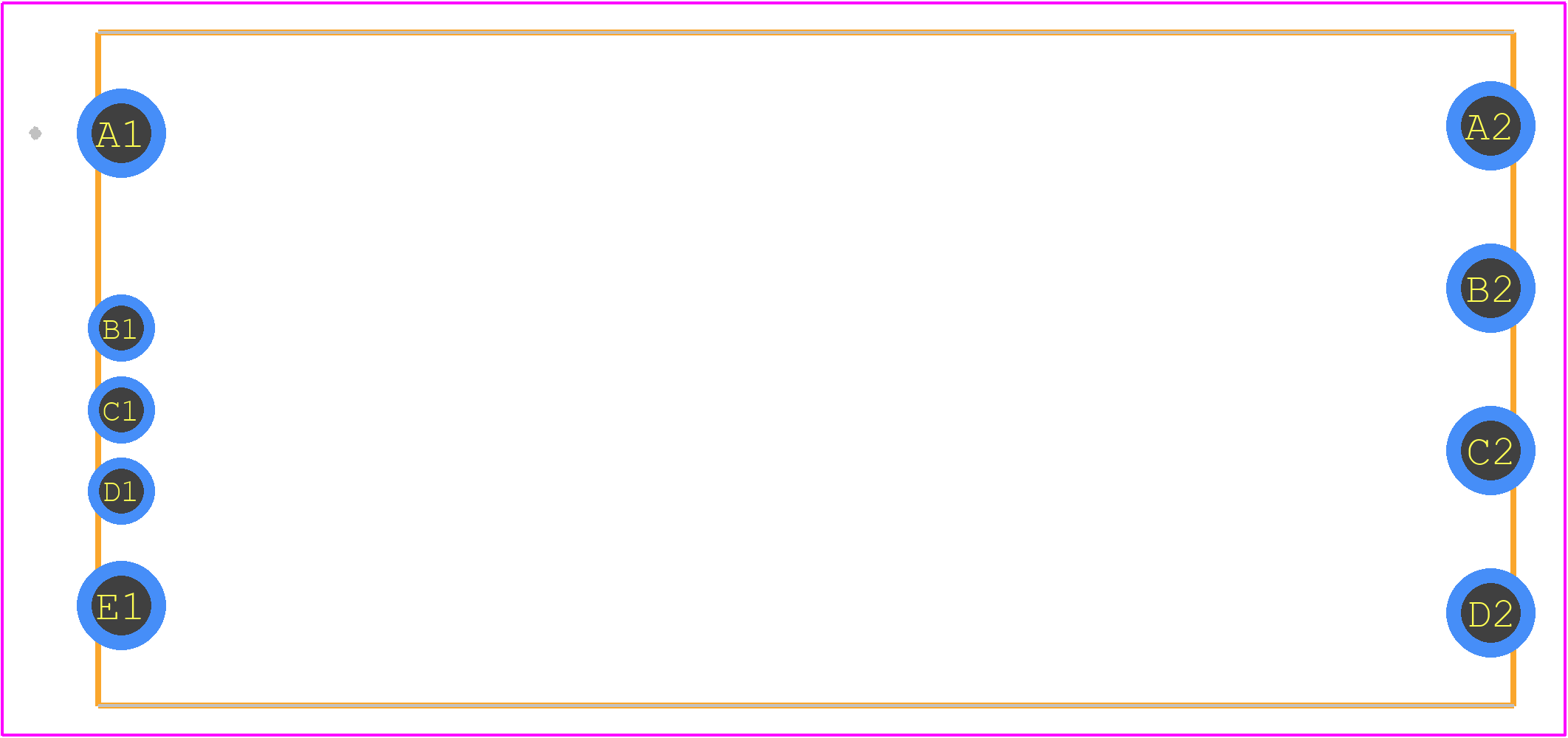

DCM4623TD2N26C8T00 - VICOR PCB footprint - Other - Other - DCM4623TD2N26C8T00-2
click to zoom
3D Models
DCM4623TD2N26C8T00 - VICOR - 3D model - Other - DCM4623TD2N26C8T00-2
click to zoom

DCM4623TD2N26C8T00 Details

  • Manufacturer Part Number:

    DCM4623TD2N26C8T00

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-9

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    9.1

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    420 V

  • Input Voltage-Min:

    120 V

  • Input Voltage-Nom:

    275 V

  • JESD-30 Code:

    R-XDMA-P9

  • Length:

    47.91 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Output Voltage-Max:

    26.4 V

  • Output Voltage-Min:

    14.4 V

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    7.31 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    375 W

  • Trim/Adjustable Output:

    YES

  • Width:

    22.8 mm

DCM4623TD2N26C8T00 Frequently Asked Questions (FAQs)

  • Vicor recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
  • To ensure reliable start-up, Vicor recommends a soft-start circuit or a ramp-up of the input voltage to prevent inrush currents and ensure a smooth start-up.
  • The maximum allowed capacitance on the output of the DCM module is 100uF. Exceeding this value may cause instability or oscillations.
  • Yes, the DCM module can be used in a parallel configuration for higher power applications. However, it is essential to ensure that the modules are synchronized and share the load current equally to prevent uneven stress and potential failures.
  • Vicor recommends a pi-filter configuration with a common-mode choke and X and Y capacitors to minimize EMI and ensure compliance with regulatory standards.
