The recommended soldering temperature for the DCP4G056007GD4KSSD is between 250°C to 260°C, with a maximum exposure time of 3 seconds.
Yes, the DCP4G056007GD4KSSD is designed for high-frequency applications up to 1 GHz, making it suitable for use in RF circuits, filters, and antennas.
The maximum operating voltage derating for the DCP4G056007GD4KSSD is 80% of the rated voltage, which is 560 VDC in this case.
The DCP4G056007GD4KSSD has a moisture sensitivity level (MSL) of 2, which means it can withstand normal humidity levels. However, it's recommended to follow the manufacturer's guidelines for storage and handling to prevent moisture absorption.
The ESR of the DCP4G056007GD4KSSD is not explicitly stated in the datasheet, but it's typically in the range of 10-20 mΩ for similar Wima capacitors.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DCP4G056007GD4KSSD Overview

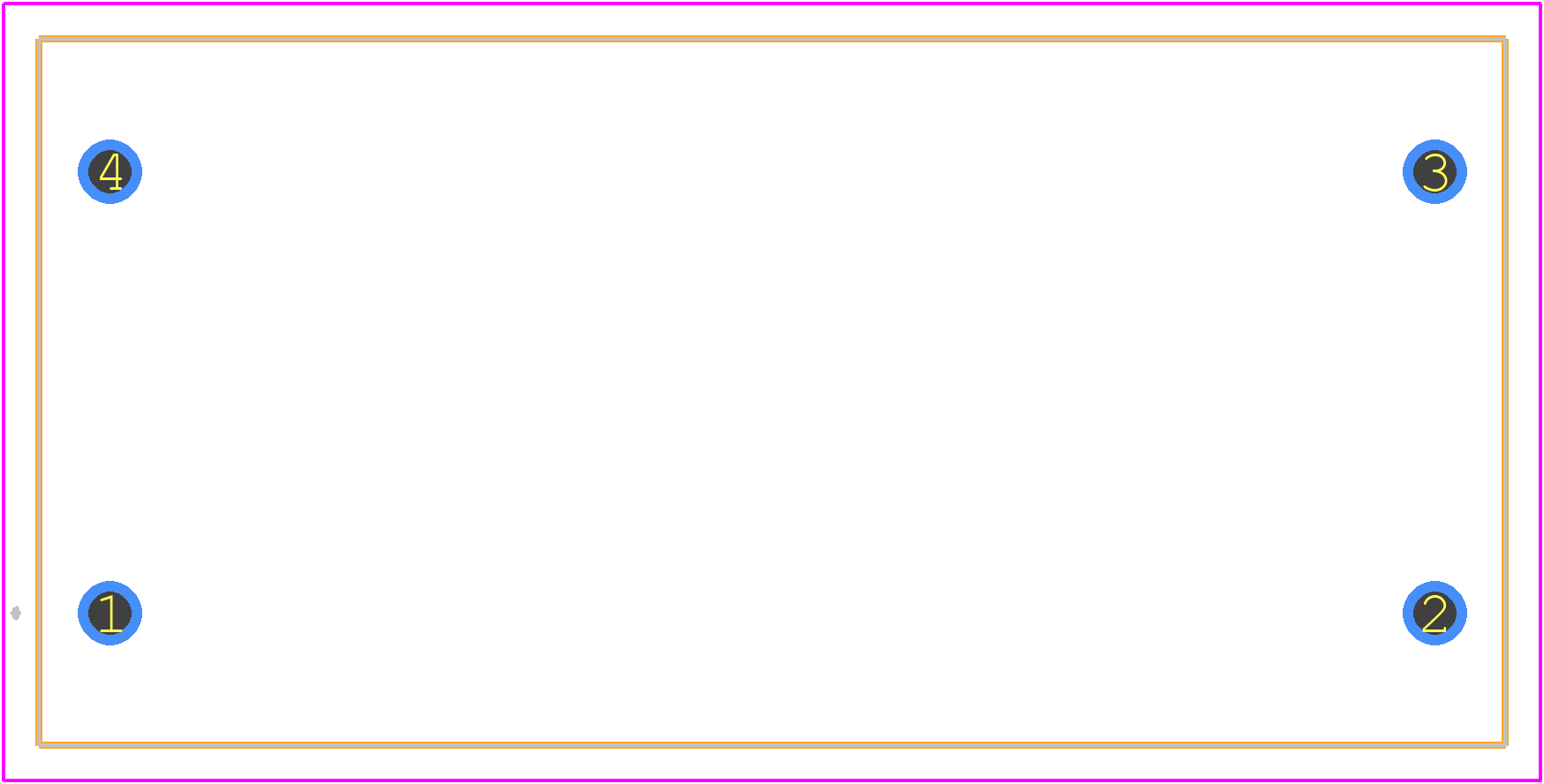

Use the download button to access the DCP4G056007GD4KSSD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DCP4G,
or try a keyword search, such as Ceramic Capacitors
