DCP4H162409JD4JSSD - WIMA

Description: Film Capacitors DC-LINK MKP 4 240.0 uF 500 VDC 45x65x57 PCM 52.5

Download DCP4H162409JD4JSSD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DCP4H162409JD4JSSD - WIMA - PCB symbol
click to zoom
PCB Footprints

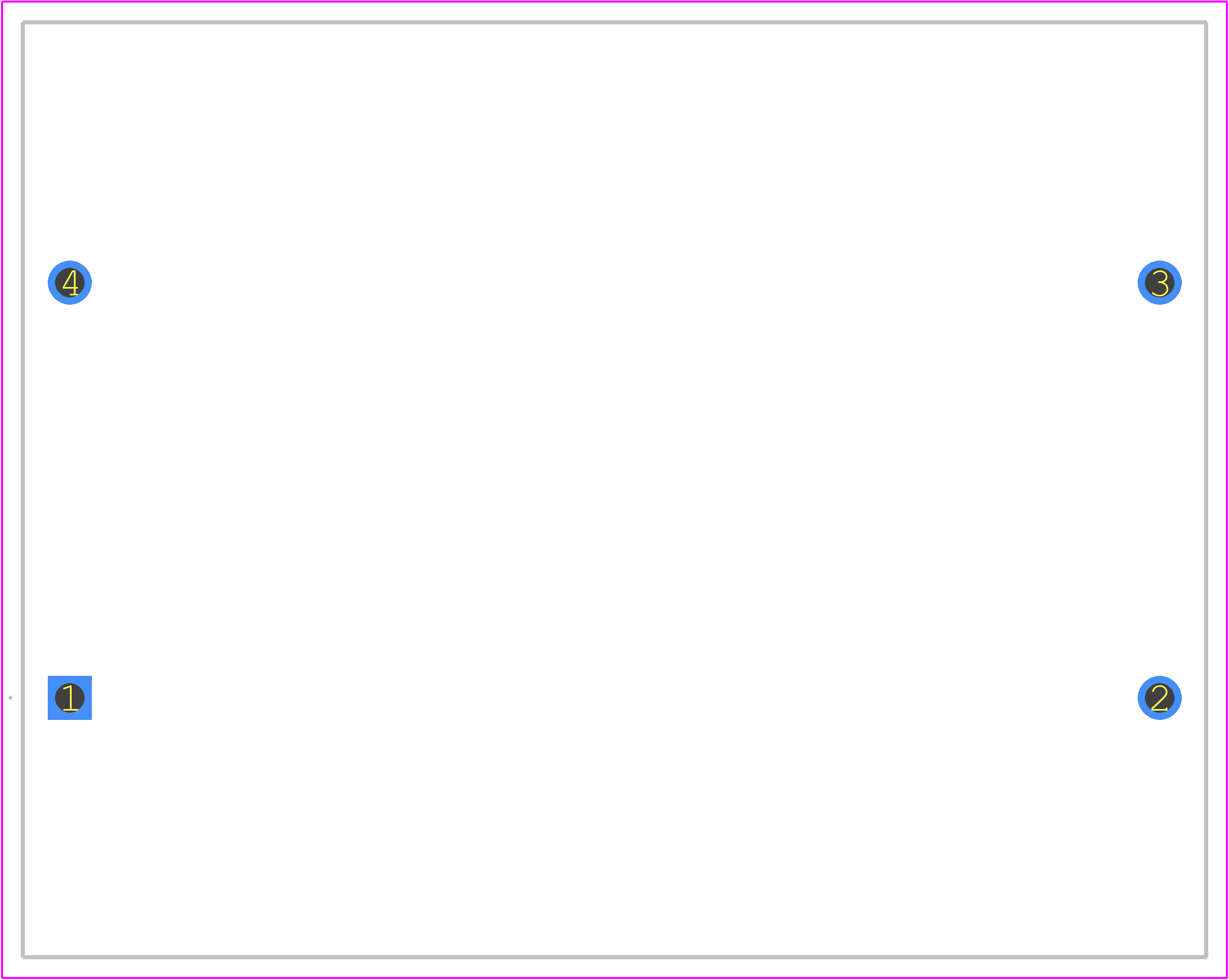

DCP4H162409JD4JSSD - WIMA PCB footprint - Other - Other - DCP4H162409JD4JSSD-2
click to zoom
3D Models
DCP4H162409JD4JSSD - WIMA - 3D model - Other - DCP4H162409JD4JSSD-2
click to zoom

DCP4H162409JD4JSSD Details

  • Manufacturer Part Number:

    DCP4H162409JD4JSSD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00

  • Manufacturer:

    Wima

  • YTEOL:

    7.07

  • Capacitance:

    240 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    65 mm

  • JESD-609 Code:

    e3

  • Length:

    57 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Packing Method:

    TRAY

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    500 V

  • Reference Standard:

    AEC-Q200

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

  • Terminal Shape:

    WIRE

  • Width:

    45 mm

DCP4H162409JD4JSSD Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the DCP4H162409JD4JSSD capacitor is between 250°C to 260°C, with a maximum exposure time of 3 seconds.
  • Yes, the DCP4H162409JD4JSSD capacitor is designed for high-frequency applications, with a self-resonant frequency of approximately 100 MHz.
  • The maximum operating temperature range for the DCP4H162409JD4JSSD capacitor is -55°C to +125°C, with a derating of 1.25% per °C above 85°C.
  • Yes, the DCP4H162409JD4JSSD capacitor is RoHS and REACH compliant, making it suitable for use in environmentally friendly designs.
  • The recommended storage condition for the DCP4H162409JD4JSSD capacitor is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -20°C to +40°C and relative humidity below 70%.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DCP4H162409JD4JSSD Overview

Use the download button to access the DCP4H162409JD4JSSD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DCP4H, or try a keyword search, such as Ceramic Capacitors
