DCP4I054507ID2KYSD - WIMA

Description: Film Capacitors 45uF 600V 10% 2 LD 31x46x41.5 PCM37.5

Download DCP4I054507ID2KYSD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DCP4I054507ID2KYSD - WIMA - PCB symbol
click to zoom

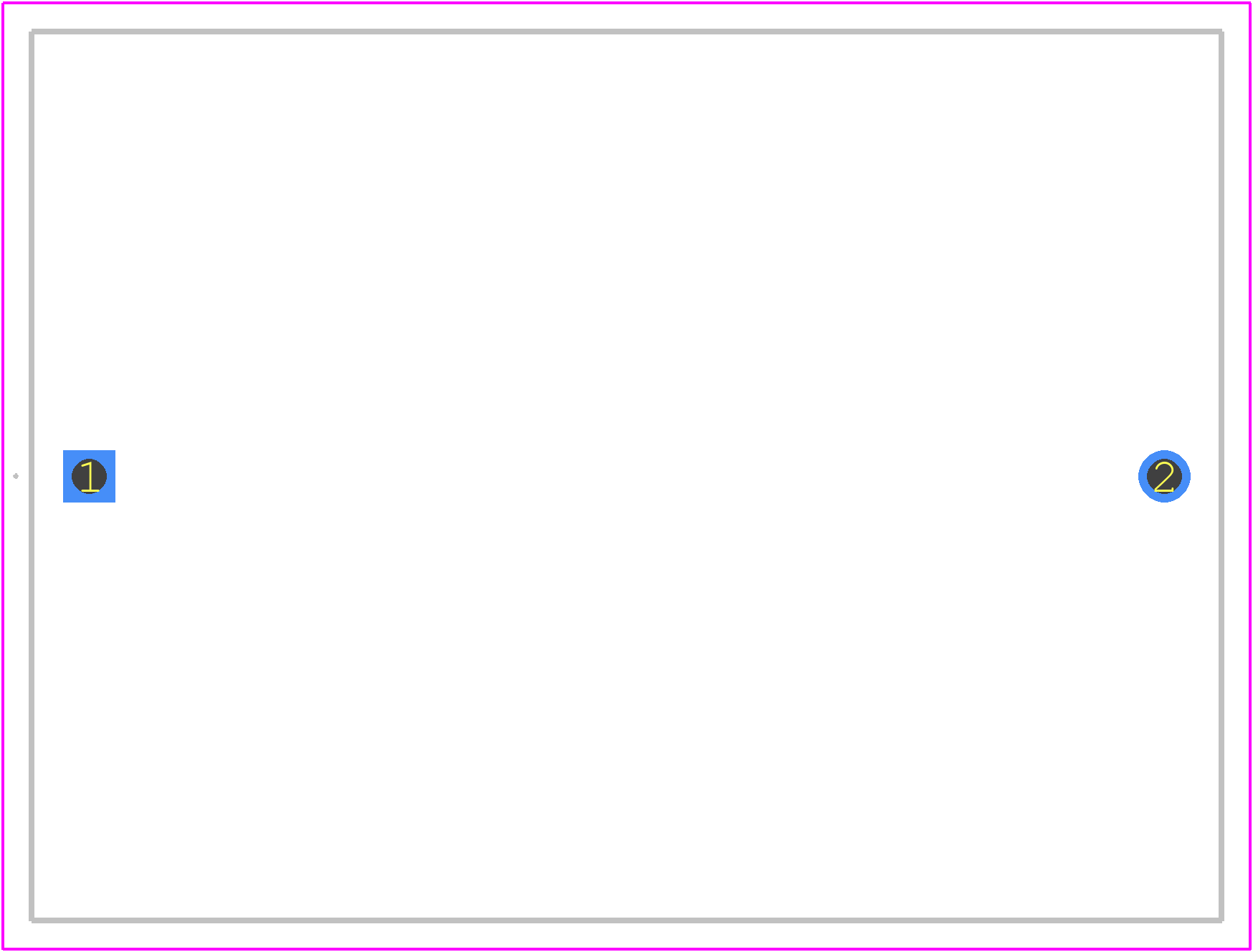

PCB Footprints
DCP4I054507ID2KYSD - WIMA PCB footprint - Other - Other - DCP4I054507ID2KYSD-2
click to zoom
3D Models
DCP4I054507ID2KYSD - WIMA - 3D model - Other - DCP4I054507ID2KYSD-2
click to zoom

DCP4I054507ID2KYSD Details

  • Manufacturer Part Number:

    DCP4I054507ID2KYSD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED, ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Manufacturer:

    Wima

  • YTEOL:

    0

  • Capacitance:

    45 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    600 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Shape:

    WIRE

DCP4I054507ID2KYSD Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the DCP4I054507ID2KYSD is between 250°C to 260°C, with a maximum exposure time of 5 seconds.
  • Yes, the DCP4I054507ID2KYSD is designed for high-frequency applications up to 1 GHz, making it suitable for use in RF circuits, filters, and antennas.
  • The DCP4I054507ID2KYSD can operate safely between -55°C and +125°C, making it suitable for use in a wide range of environmental conditions.
  • Yes, the DCP4I054507ID2KYSD is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in EU-based applications.
  • The DCP4I054507ID2KYSD should be stored in a dry, cool place with a relative humidity of 60% or less, and at a temperature range of -20°C to +40°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DCP4I054507ID2KYSD Overview

Use the download button to access the DCP4I054507ID2KYSD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DCP4I, or try a keyword search, such as Film Capacitors
