DCP4I061009HD4KSSD - WIMA

Description: 100 µF Film Capacitor 600V Polypropylene (PP), Metallized Radial - 4 Leads

Download DCP4I061009HD4KSSD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DCP4I061009HD4KSSD - WIMA - PCB symbol
click to zoom
PCB Footprints

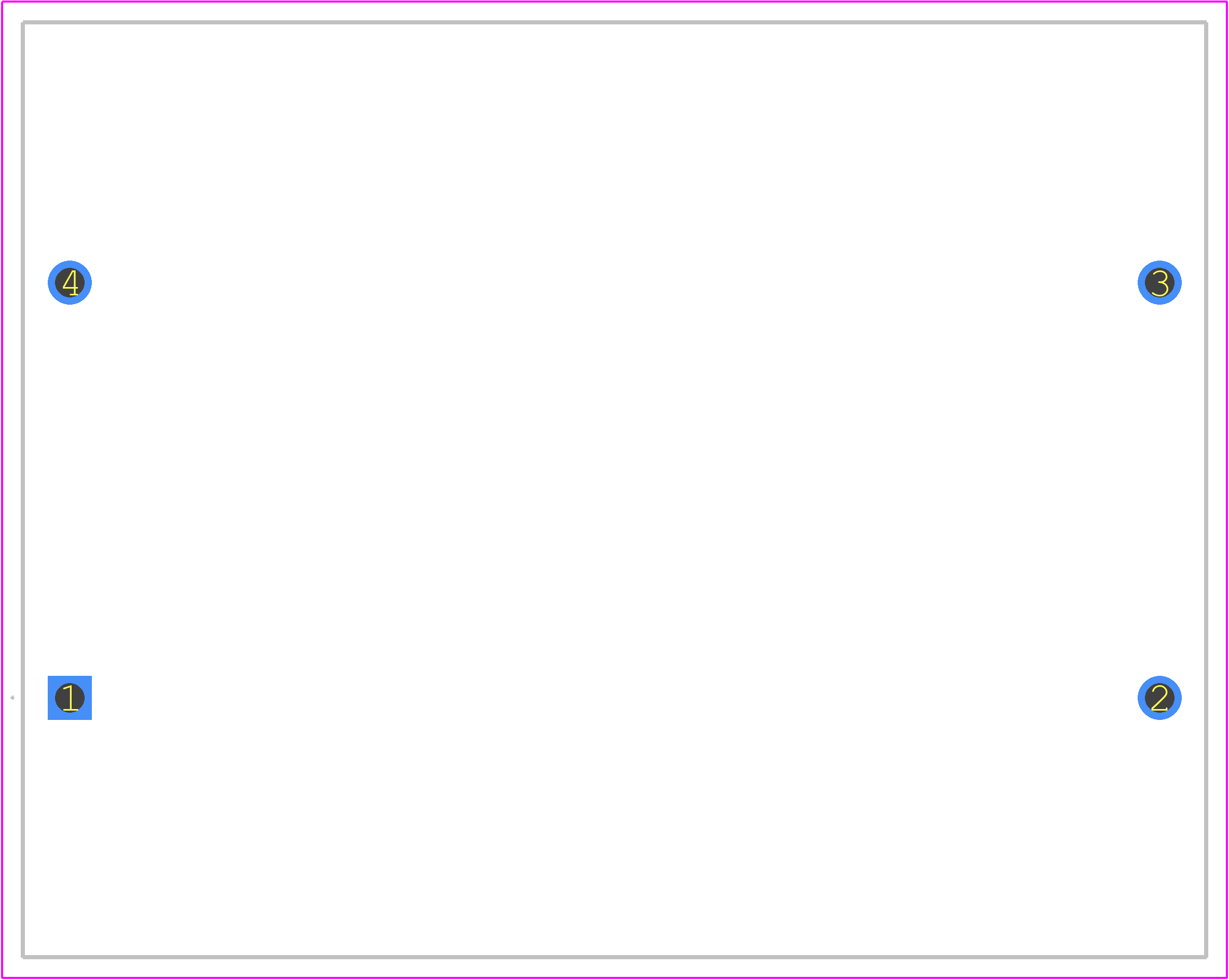

DCP4I061009HD4KSSD - WIMA PCB footprint - Other - Other - 57.0x45.0x55.0mm
click to zoom
3D Models
DCP4I061009HD4KSSD - WIMA - 3D model - Other - 57.0x45.0x55.0mm
click to zoom

DCP4I061009HD4KSSD Details

  • Manufacturer Part Number:

    DCP4I061009HD4KSSD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00

  • Manufacturer:

    Wima

  • YTEOL:

    7.46

  • Capacitance:

    100 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    55 mm

  • JESD-609 Code:

    e3

  • Length:

    57 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Packing Method:

    TRAY

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    600 V

  • Reference Standard:

    AEC-Q200

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

  • Terminal Shape:

    WIRE

  • Width:

    45 mm

DCP4I061009HD4KSSD Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the DCP4I061009HD4KSSD is between 250°C to 260°C, with a maximum exposure time of 5 seconds.
  • Yes, the DCP4I061009HD4KSSD is designed for high-frequency applications, with a self-resonant frequency of approximately 10 MHz.
  • The maximum operating temperature range for the DCP4I061009HD4KSSD is -55°C to +125°C, with a derating of 1.25% per Kelvin above 85°C.
  • Yes, the DCP4I061009HD4KSSD is RoHS and REACH compliant, making it suitable for use in environmentally friendly designs.
  • The recommended storage condition for the DCP4I061009HD4KSSD is in a dry, cool place, away from direct sunlight, with a relative humidity of 60% or less.
