DCP4I061509JD4KSSD - WIMA

Description: Film Capacitors 150uF 600V 10% 4 LD 45x65x57 PCM 52.5

Download DCP4I061509JD4KSSD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DCP4I061509JD4KSSD - WIMA - PCB symbol
click to zoom
PCB Footprints

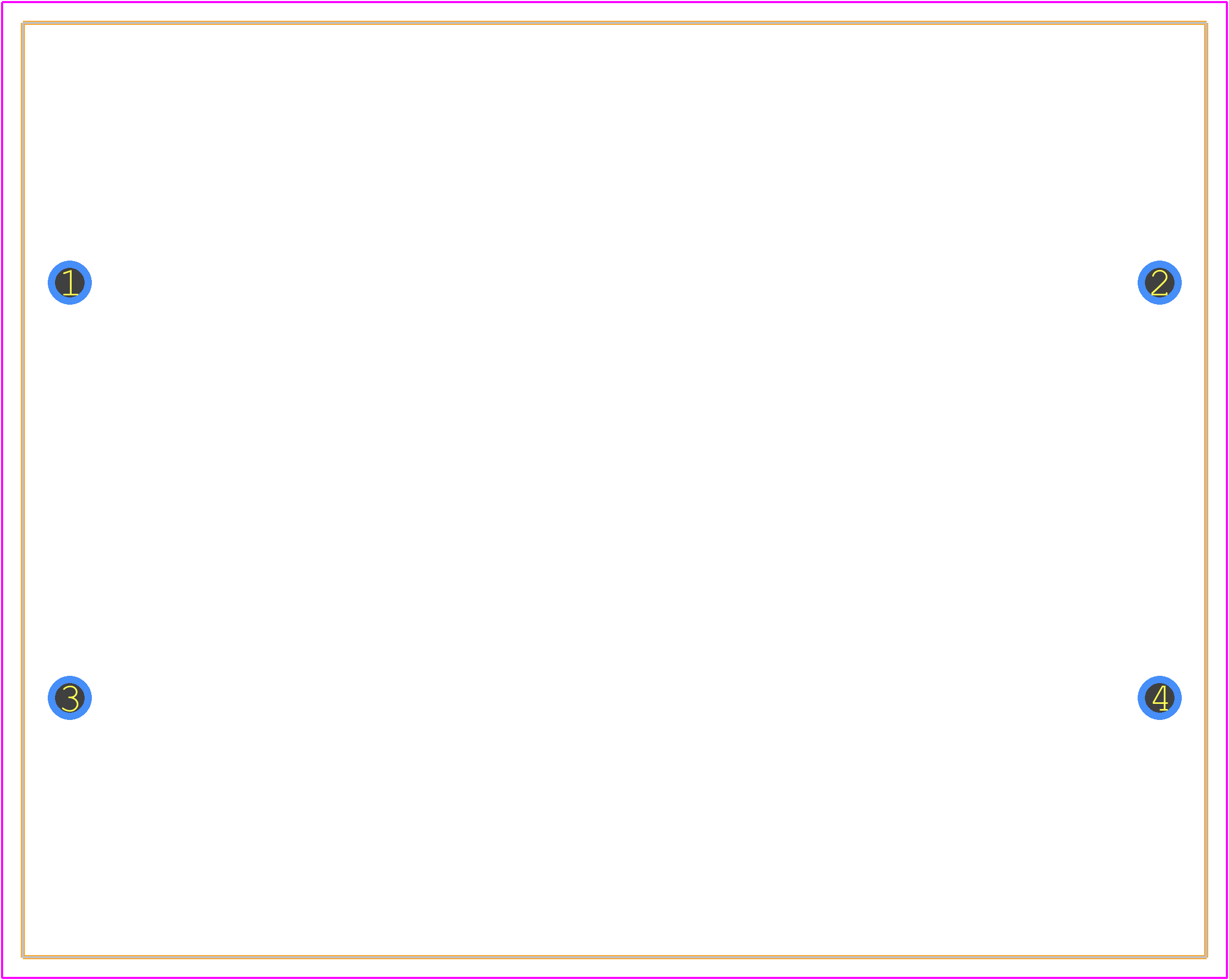

DCP4I061509JD4KSSD - WIMA PCB footprint - Other - Other - DCP4I061509JD4KSSD-1
click to zoom
3D Models
DCP4I061509JD4KSSD - WIMA - 3D model - Other - DCP4I061509JD4KSSD-1
click to zoom

DCP4I061509JD4KSSD Details

  • Manufacturer Part Number:

    DCP4I061509JD4KSSD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00

  • Manufacturer:

    Wima

  • YTEOL:

    7.46

  • Capacitance:

    150 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    65 mm

  • JESD-609 Code:

    e3

  • Length:

    57 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Packing Method:

    TRAY

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    600 V

  • Reference Standard:

    AEC-Q200

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

  • Terminal Shape:

    WIRE

  • Width:

    45 mm

DCP4I061509JD4KSSD Frequently Asked Questions (FAQs)

  • Wima recommends a soldering temperature of 260°C (500°F) with a maximum soldering time of 3 seconds. However, it's essential to follow the specific soldering guidelines provided by Wima or consult with their technical support for more detailed information.
  • The DCP4I061509JD4KSSD is designed to meet the requirements of IEC 60384-16, which includes vibration testing. However, it's crucial to consult with Wima's technical support to ensure the capacitor meets the specific vibration requirements of your application.
  • Wima's DCP4I061509JD4KSSD is designed to operate up to 2000 meters (6561 feet) above sea level. For applications above this altitude, consult with Wima's technical support to determine the capacitor's suitability.
  • The DCP4I061509JD4KSSD is designed for general-purpose applications, but its high-frequency behavior may vary. For high-frequency applications, consult with Wima's technical support or consider using a capacitor specifically designed for high-frequency use.
  • The DCP4I061509JD4KSSD has a climatic category of 55/125/56, which means it can operate in environments with a relative humidity of up to 55% at 125°C. However, for applications in extremely humid or moist environments, consult with Wima's technical support to determine the capacitor's suitability.
