DCP4L054007ID4KSSD - WIMA

Description: 40 µF Film Capacitor 800V Polypropylene (PP), Metallized Radial - 4 Leads

Download DCP4L054007ID4KSSD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DCP4L054007ID4KSSD - WIMA - PCB symbol
click to zoom

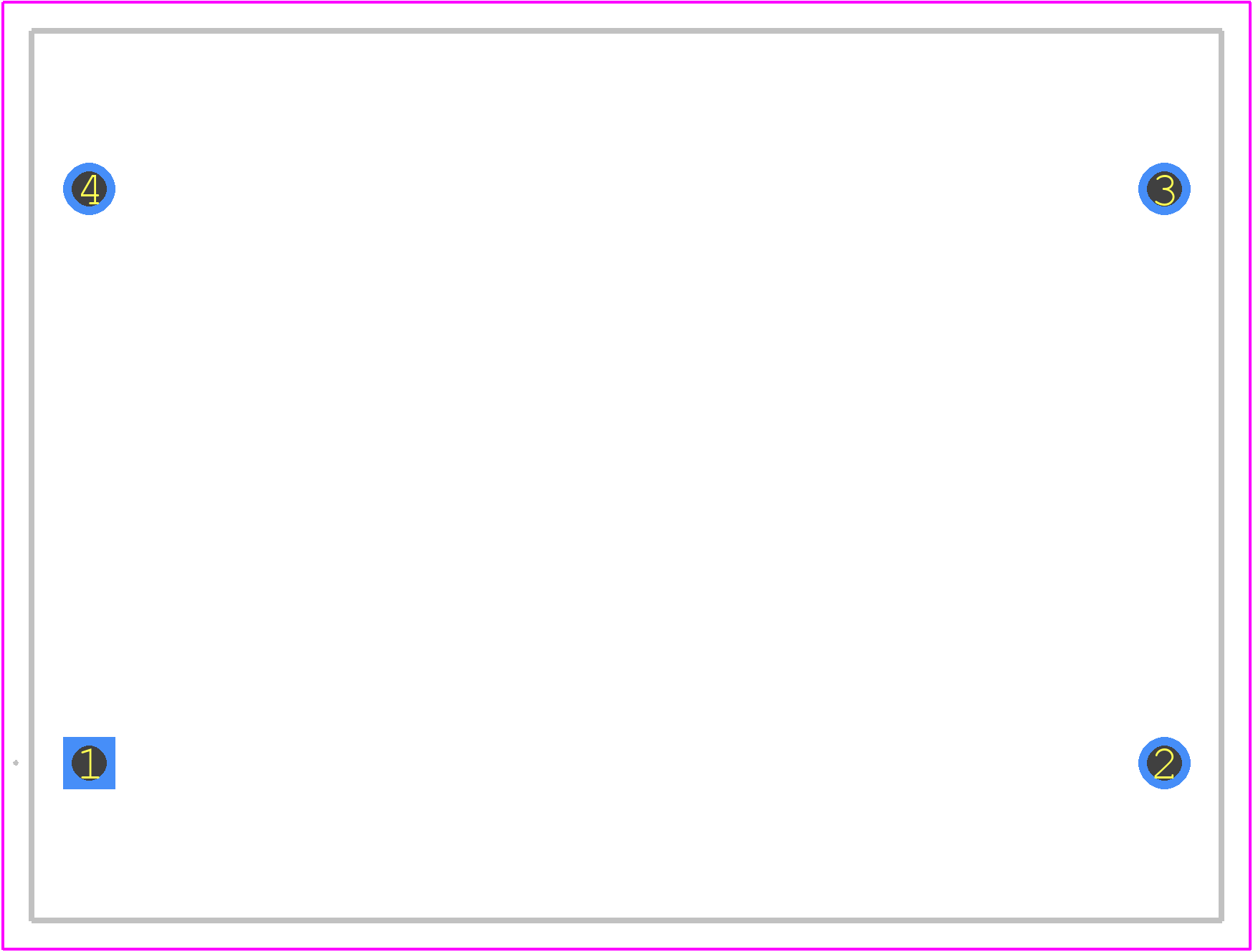

PCB Footprints
DCP4L054007ID4KSSD - WIMA PCB footprint - Other - Other - DCP4L054007ID4KSSD-2
click to zoom
3D Models
DCP4L054007ID4KSSD - WIMA - 3D model - Other - DCP4L054007ID4KSSD-2
click to zoom

DCP4L054007ID4KSSD Details

  • Manufacturer Part Number:

    DCP4L054007ID4KSSD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00

  • Manufacturer:

    Wima

  • YTEOL:

    7.46

  • Capacitance:

    40 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    46 mm

  • JESD-609 Code:

    e3

  • Length:

    41.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Packing Method:

    TRAY

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    800 V

  • Reference Standard:

    AEC-Q200

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

  • Terminal Shape:

    WIRE

  • Width:

    31 mm

DCP4L054007ID4KSSD Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the DCP4L054007ID4KSSD capacitor is between 250°C to 260°C, with a maximum exposure time of 5 seconds.
  • Yes, the DCP4L054007ID4KSSD capacitor is designed for high-frequency applications, with a self-resonant frequency of approximately 100 MHz.
  • The maximum operating temperature range for the DCP4L054007ID4KSSD capacitor is -55°C to +125°C, with a derating of 1.25% per °C above 85°C.
  • Yes, the DCP4L054007ID4KSSD capacitor is RoHS and REACH compliant, making it suitable for use in environmentally friendly designs.
  • The recommended storage conditions for the DCP4L054007ID4KSSD capacitor are in a dry, cool place, away from direct sunlight, with a temperature range of -20°C to +40°C and relative humidity below 70%.
