The recommended land pattern for the DCT15EFD-U44S003 can be found in the TDK Corporation's application note or the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
To ensure proper thermal management, it's recommended to provide a thermal pad on the PCB, and to use a thermal interface material (TIM) between the device and the heat sink. The thermal resistance of the TIM should be as low as possible, and the heat sink should be designed to provide adequate airflow.
The maximum operating temperature range for the DCT15EFD-U44S003 is -40°C to 125°C. However, it's essential to note that the device's performance and reliability may degrade if operated at the extreme ends of this range for an extended period.
The DCT15EFD-U44S003 is designed to withstand moderate vibration levels. However, if the device will be exposed to high-vibration environments, it's recommended to use additional mechanical support, such as a bracket or a clamp, to ensure the device remains securely attached to the PCB.
To ensure proper soldering, it's recommended to follow the recommended soldering profile, use a solder with a melting point below 260°C, and apply a solder flux to the PCB pads before soldering. Additionally, the device should be handled by the edges to prevent damage to the pins.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DCT15EFD-U44S003 Overview

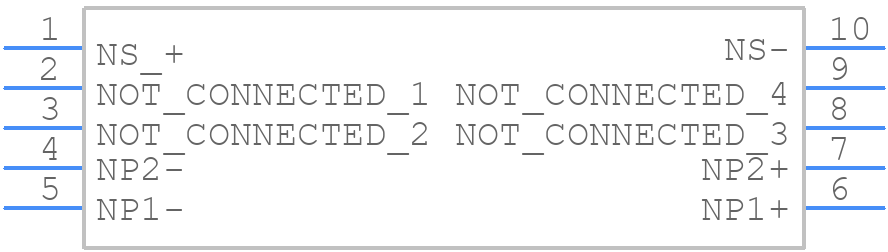

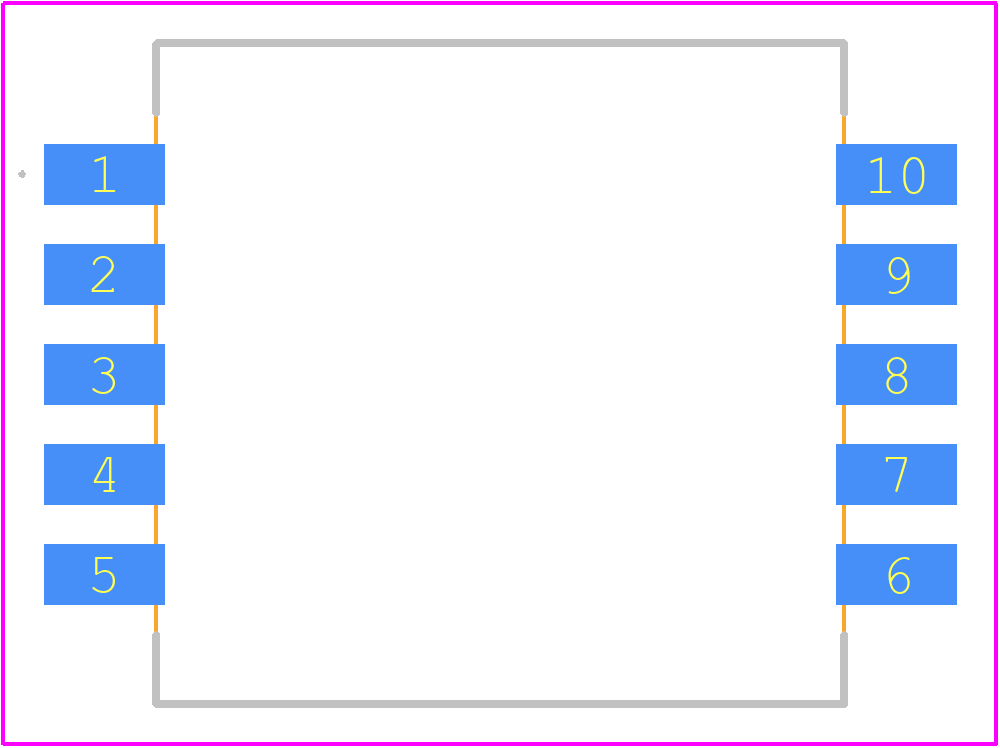

Use the download button to access the DCT15EFD-U44S003 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DCT15,
or try a keyword search, such as SMPS Transformers
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
