DCW-11-722+ - Mini-Circuits

Description: Signal Conditioning RF Coupler / SMT / LTCC / RoHS

Download DCW-11-722+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

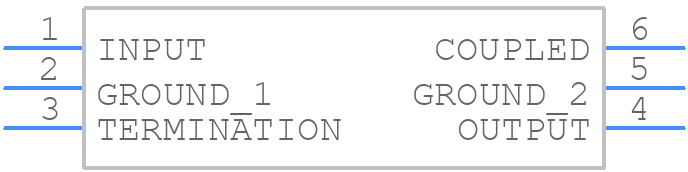

Symbol
DCW-11-722+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
DCW-11-722+ - Mini-Circuits PCB footprint - Other - Other - DCW-11-722+-1
click to zoom
3D Models
DCW-11-722+ - Mini-Circuits - 3D model - Other - DCW-11-722+-1
click to zoom

DCW-11-722+ Details

  • Manufacturer Part Number:

    DCW-11-722+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2020-05-04

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.98

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    2.2 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    7200 MHz

  • Operating Frequency-Min:

    2400 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Equivalence Code:

    SOLCC6,.03,20

  • RF/Microwave Device Type:

    DIRECTIONAL COUPLER

  • Surface Mount:

    YES

  • VSWR-Max:

    1.33

DCW-11-722+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Impedance matching is critical for optimal performance. Mini-Circuits provides guidance on impedance matching in their application notes. You can also use simulation tools like ADS or AWR to optimize the matching network.
  • The maximum power handling of the DCW-11-722+ is not explicitly stated in the datasheet. However, according to Mini-Circuits, the device can handle up to 1W of continuous power. Exceeding this limit may cause damage or affect reliability.
  • The DCW-11-722+ is rated for operation up to 85°C. However, it's essential to derate the power handling and consider thermal management when operating in high-temperature environments to ensure reliability.
  • Mini-Circuits provides troubleshooting guides and application notes that can help identify and resolve common issues. Additionally, you can contact Mini-Circuits' technical support for assistance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DCW-11-722+ Overview

Use the download button to access the DCW-11-722+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DCW-1, or try a keyword search, such as RF/Microwave Couplers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
