DCW-22-332+ - Mini-Circuits

Description: Signal Conditioning DIR COUP / SURF MT / RoHS

Download DCW-22-332+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

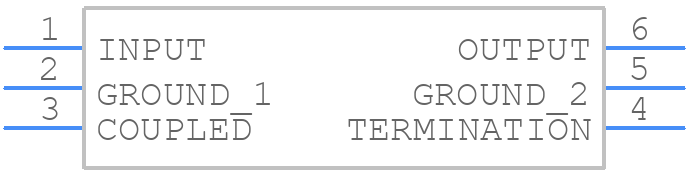

DCW-22-332+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
DCW-22-332+ - Mini-Circuits PCB footprint - Other - Other - JC0603C_2022-1
click to zoom
3D Models
DCW-22-332+ - Mini-Circuits - 3D model - Other - JC0603C_2022-1
click to zoom

DCW-22-332+ Details

  • Manufacturer Part Number:

    DCW-22-332+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Insertion Loss-Max:

    0.7 dB

  • Operating Frequency-Max:

    3300 MHz

  • Operating Frequency-Min:

    1200 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • RF/Microwave Device Type:

    DIRECTIONAL COUPLER

  • VSWR-Max:

    1.15
