DD1217AS-H-2R2N=P3 - Murata Electronics

Description: Inductor Power Shielded Wirewound 2.2uH 30% 100KHz Ferrite 8.7A 0.0099Ohm DCR 3131 T/R

Download DD1217AS-H-2R2N=P3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DD1217AS-H-2R2N=P3 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

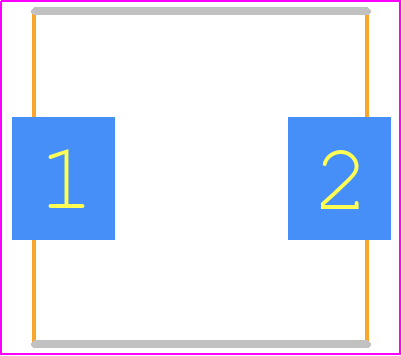

DD1217AS-H-2R2N=P3 - Murata Electronics PCB footprint - Inductors Precision Moulded - Inductors Precision Moulded - DD1217AS-H-330M=P3
click to zoom
3D Models
DD1217AS-H-2R2N=P3 - Murata Electronics - 3D model - Inductors Precision Moulded - DD1217AS-H-330M=P3
click to zoom

DD1217AS-H-2R2N=P3 Details

  • Manufacturer Part Number:

    DD1217AS-H-2R2N=P3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    CHIP, 3131

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • Core Material:

    FERRITE

  • DC Resistance:

    0.0099 Ω

  • Inductance-Nom (L):

    2.2 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Rated Current-Max:

    8.7 A

  • Reference Standard:

    AEC-Q200

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    30%

DD1217AS-H-2R2N=P3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the DD1217AS-H-2R2N=P3 inductor is a rectangular pad with a size of 1.2mm x 1.7mm, with a non-solder mask defined (NSMD) pad shape.
  • The DD1217AS-H-2R2N=P3 inductor has a maximum operating temperature of 125°C. Ensure good airflow around the component, and consider using a heat sink or thermal interface material if high currents or high ambient temperatures are expected.
  • The self-resonant frequency (SRF) of the DD1217AS-H-2R2N=P3 inductor is not explicitly stated in the datasheet, but it can be estimated to be around 100-200 MHz based on the inductor's physical characteristics and similar products from Murata.
  • The DD1217AS-H-2R2N=P3 inductor is a commercial-grade component, but Murata offers similar inductors with higher reliability ratings (e.g., AEC-Q200) for automotive and high-reliability applications. Consult with Murata or a qualified distributor for more information.
  • To minimize magnetic field interference, keep the inductor at least 5mm away from sensitive components, and consider using a shielded inductor or a mu-metal shield around the inductor.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DD1217AS-H-2R2N=P3 Overview

Use the download button to access the DD1217AS-H-2R2N=P3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DD121, or try a keyword search, such as Fixed Inductors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
