Part Image

DD21.0114.1111 - SCHURTER

Description: CAD-Model shows variation protection class I, 4 holes for screws M3, 2-pole fuse holder/2-pole rocker switch non-illuminated, with cover

Download DD21.0114.1111 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

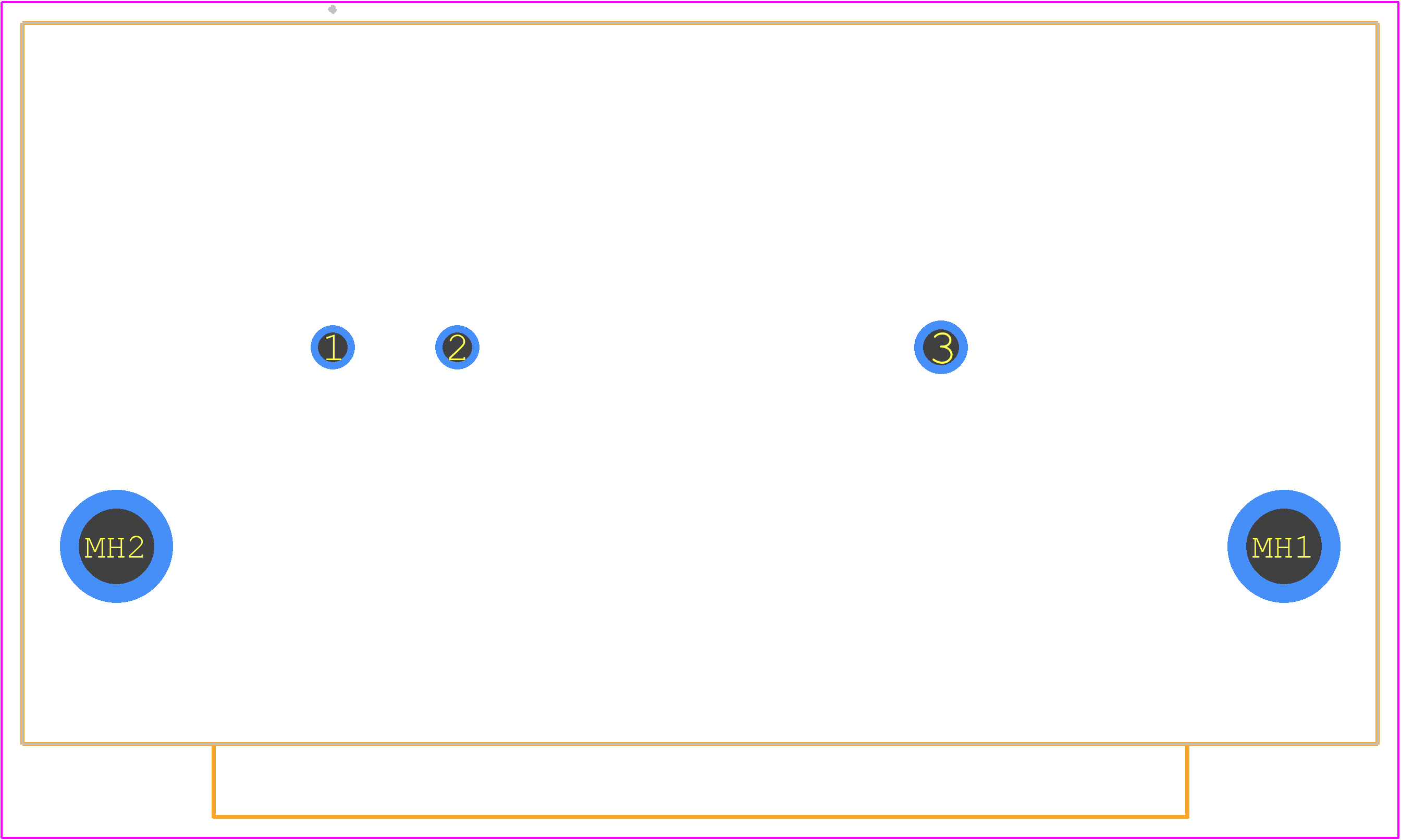

DD21.0114.1111 - SCHURTER PCB footprint - Other - Other - DD21.0114.1111-1
click to zoom
3D Models
DD21.0114.1111 - SCHURTER  - 3D model - Other - DD21.0114.1111-1
click to zoom

DD21.0114.1111 Details

  • Manufacturer Part Number:

    DD21.0114.1111

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    15 Weeks, 5 Days

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    STANDARDS: IEC 60320-1, IEC 60127-6, IEC 61058-1, IEC 60601-1, IEC 60335-1 UL, VDE

  • Body Breadth:

    1.27 inch

  • Body Depth:

    1.5 inch

  • Body Length:

    2.56 inch

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • IEC Conformance:

    YES

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    10A, 125VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Type:

    PANEL

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA; CUL

  • Shell Material:

    POLYETHYLENE

  • Termination Type:

    SCREW

  • Total Number of Contacts:

    3

DD21.0114.1111 Frequently Asked Questions (FAQs)

  • Schurter provides a recommended PCB layout and land pattern in their application notes or design guides, which can be found on their website or through direct contact with their technical support team.
  • Proper thermal management can be achieved by providing adequate airflow, using thermal pads or heat sinks, and ensuring that the device is mounted on a PCB with a sufficient thermal conductivity.
  • The maximum operating temperature range for the DD21.0114.1111 is typically specified as -40°C to 125°C, but it's essential to check the datasheet or consult with Schurter's technical support team for specific temperature ratings and derating information.
  • The DD21.0114.1111 is designed to meet specific vibration and shock requirements, but it's crucial to consult with Schurter's technical support team to determine if the device meets the specific environmental requirements of your application.
  • Schurter provides recommended soldering and rework conditions in their application notes or design guides, which can be found on their website or through direct contact with their technical support team.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DD21.0114.1111 Overview

Use the download button to access the DD21.0114.1111 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DD21., or try a keyword search, such as Mains Power Connectors
