DD22.2321.1111 - SCHURTER

Description: CAD Model variation shows Standard / Medical version for screw mounting M3

Download DD22.2321.1111 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DD22.2321.1111 - SCHURTER - PCB symbol
click to zoom
PCB Footprints

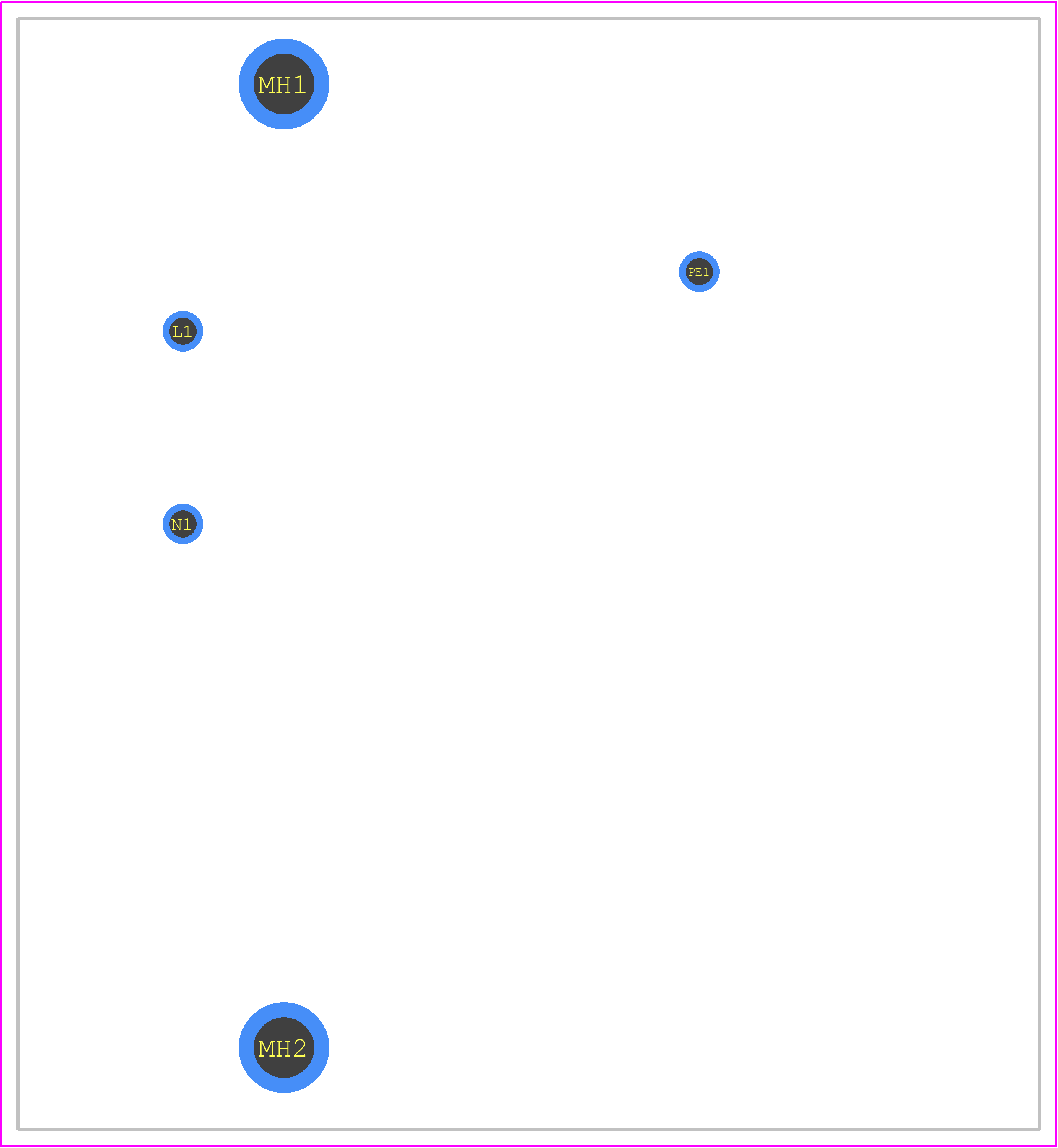

DD22.2321.1111 - SCHURTER PCB footprint - Other - Other - DD22.2321.1111-3
click to zoom
3D Models
DD22.2321.1111 - SCHURTER - 3D model - Other - DD22.2321.1111-3
click to zoom

DD22.2321.1111 Details

  • Manufacturer Part Number:

    DD22.2321.1111

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    13 Weeks, 5 Days

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    7.2

  • Additional Feature:

    STANDARDS: IEC/EN 60320-1/C14, UL 498; CSA C22.2; UL; VDE

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    2A, 250VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Type:

    PANEL

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    QUICK CONNECT

  • Total Number of Contacts:

    3

DD22.2321.1111 Frequently Asked Questions (FAQs)

  • Schurter provides a recommended PCB layout and land pattern in their application notes or design guides, which can be found on their website or through direct contact with their technical support team.
  • Proper thermal management can be achieved by following Schurter's recommended thermal design guidelines, using thermal pads or heat sinks, and ensuring good airflow around the component.
  • The maximum operating temperature range for the DD22.2321.1111 is typically specified as -40°C to 125°C, but it's essential to check the datasheet or consult with Schurter's technical support for specific temperature ratings and derating factors.
  • The DD22.2321.1111 is designed to meet certain vibration and shock standards, but it's crucial to consult with Schurter's technical support to determine the component's suitability for specific environmental conditions and to discuss potential customization or special testing requirements.
  • Schurter provides recommended soldering and rework conditions in their application notes or datasheets, which typically include temperature profiles, soldering times, and other guidelines to ensure reliable assembly and minimize the risk of damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DD22.2321.1111 Overview

Use the download button to access the DD22.2321.1111 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DD22., or try a keyword search, such as Mains Power Connectors
