DE1a-5V - Panasonic

Description: Compliant with European safety standards, 1 Form A/2 Form A/1 Form A 1 Form B 10 A/8 A Polarized power relays

Download DE1a-5V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

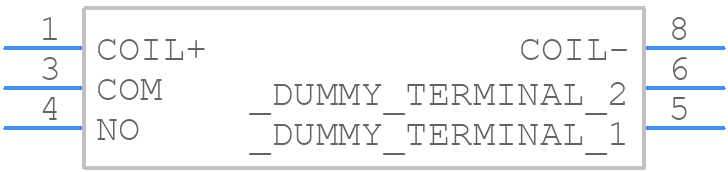

DE1a-5V - Panasonic - PCB symbol
click to zoom
PCB Footprints

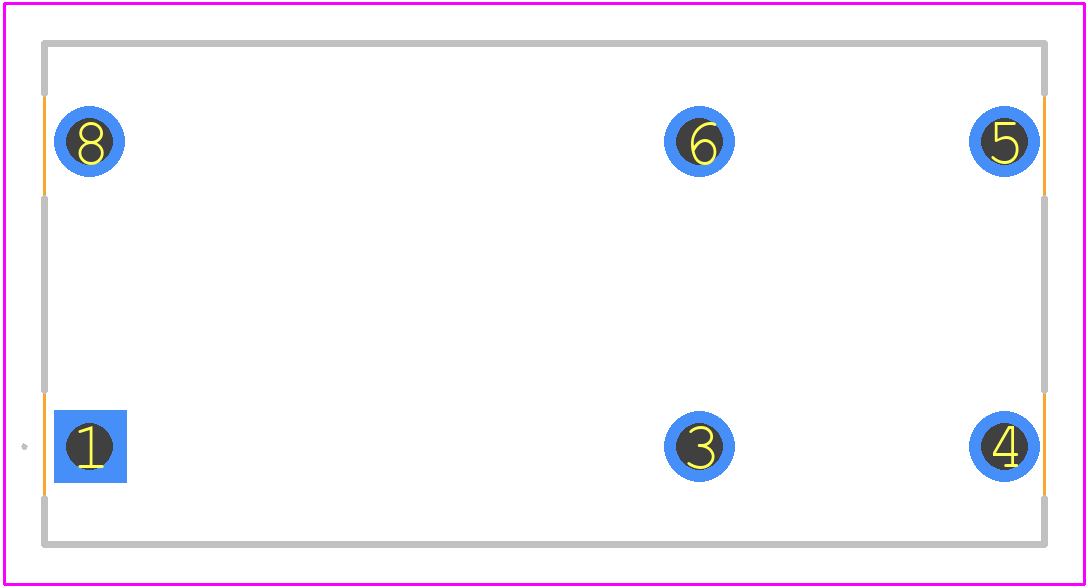

DE1a-5V - Panasonic PCB footprint - Other - Other - DE1a-5V-3
click to zoom
3D Models
DE1a-5V - Panasonic - 3D model - Other - DE1a-5V-3
click to zoom

DE1a-5V Details

  • Manufacturer Part Number:

    DE1A-5V

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.20

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    RELEASE TIME WITHOUT DIODE

  • Body Height:

    12 mm

  • Body Length or Diameter:

    25 mm

  • Coil Current(DC)-Max:

    0.04 A

  • Coil Operate Voltage(DC):

    3.5 V

  • Coil Power:

    200 mW

  • Coil Release Voltage(DC):

    0.5 V

  • Coil Resistance:

    125 Ω

  • Coil Voltage(DC)-Max:

    5 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    10A@250VAC

  • Contact Current(AC)-Max:

    10 A

  • Contact Current(DC)-Max:

    10 A

  • Contact (DC) Max Rating R Load:

    10A@30VDC

  • Contact Voltage(AC)-Max:

    250 V

  • Contact Voltage(DC)-Max:

    30 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    10 ms

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    25mm x 12.5mm x 12mm

  • Reference Standard:

    CSA; UL; VDE

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    5 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

DE1a-5V Frequently Asked Questions (FAQs)

  • The maximum switching frequency of the DE1A-5V relay is 20 Hz. However, it's recommended to limit the switching frequency to 10 Hz or less to ensure reliable operation and extend the relay's lifespan.
  • The DE1A-5V relay is rated for operation up to 85°C. However, the relay's lifespan and performance may be affected at high temperatures. It's recommended to derate the relay's current capacity and switching frequency at high temperatures.
  • The DE1A-5V relay does not have a minimum load current requirement. However, it's recommended to ensure that the load current is at least 10 mA to ensure reliable switching and to prevent contact welding.
  • The DE1A-5V relay is designed to withstand vibrations up to 10 G. However, it's recommended to ensure that the relay is properly mounted and secured to prevent damage or malfunction due to vibration.
  • The expected lifespan of the DE1A-5V relay is 100,000 to 200,000 operations, depending on the operating conditions and load characteristics. However, the relay's lifespan can be extended by reducing the switching frequency and ensuring proper operating conditions.
