DE2E3SA222MJ3BT02F - Murata Electronics

Description: Cap Ceramic Single Suppression X1/Y2 0.0022uF 250VAC E 20% (8 X 4mm) Radial Disc 7.5mm 125°C Bulk

Download DE2E3SA222MJ3BT02F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DE2E3SA222MJ3BT02F - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

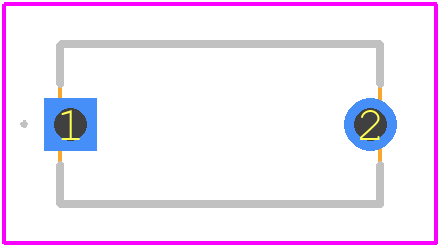

DE2E3SA222MJ3BT02F - Murata Electronics PCB footprint - Other - Other - 8.0x4.0x11.0mm
click to zoom
3D Models
DE2E3SA222MJ3BT02F - Murata Electronics - 3D model - Other - 8.0x4.0x11.0mm
click to zoom

DE2E3SA222MJ3BT02F Details

  • Manufacturer Part Number:

    DE2E3SA222MJ3BT02F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Capacitance:

    0.0022 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Diameter:

    8 mm

  • Dielectric Material:

    CERAMIC

  • Height:

    8 mm

  • JESD-609 Code:

    e3

  • Length:

    8 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    YES

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    DISK PACKAGE

  • Package Style:

    null

  • Packing Method:

    BULK

  • Positive Tolerance:

    20%

  • Rated (AC) Voltage (URac):

    250 V

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    E

  • Temperature Coefficient:

    -55/+20% ppm/°C

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    7.5 mm

  • Terminal Shape:

    WIRE

  • Width:

    4 mm

DE2E3SA222MJ3BT02F Frequently Asked Questions (FAQs)

  • Murata recommends a land pattern with a pad size of 2.5mm x 1.6mm, with a spacing of 0.5mm between pads. The recommended land pattern can be found in Murata's Capacitor Land Pattern document.
  • The DE2E3SA222MJ3BT02F is designed to handle high-frequency noise due to its low equivalent series resistance (ESR) and high resonance frequency. The capacitor's internal construction and materials are optimized to minimize noise and ensure stable operation in high-frequency circuits.
  • The DE2E3SA222MJ3BT02F capacitor has a rated operating temperature range of -55°C to +125°C, making it suitable for high-temperature applications. However, it's essential to consider the derating curve and ensure the capacitor operates within its specified voltage and temperature ratings.
  • The DE2E3SA222MJ3BT02F capacitor is designed to withstand vibrations and shocks. Murata's testing and validation processes ensure that the capacitor meets the requirements for vibration and shock resistance, making it suitable for use in high-vibration environments.
  • The DE2E3SA222MJ3BT02F capacitor has a low ESR, which minimizes the impact on the overall circuit impedance. The capacitor's impedance characteristics can be modeled using Murata's impedance calculator tool or by consulting the datasheet.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DE2E3SA222MJ3BT02F Overview

Use the download button to access the DE2E3SA222MJ3BT02F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DE2E3, or try a keyword search, such as Ceramic Capacitors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
