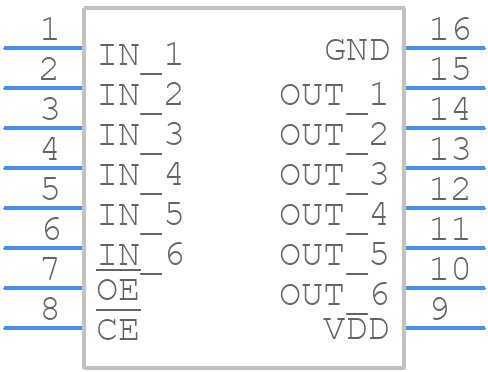

DEI1054-WMB - Device Engineering Incorporated

DEI1054-WMB Details

• Manufacturer Part Number:

  DEI1054-WMB

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC

• Pin Count:

  16

• Country Of Origin:

  USA

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Device Engineering Incorporated

• YTEOL:

  8.5

• Interface IC Type:

  INTERFACE CIRCUIT

• JESD-30 Code:

  R-CDSO-G16

• JESD-609 Code:

  e4

• Length:

  10.45 mm

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

• Package Code:

  SOP

• Package Equivalence Code:

  SOP16,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.7 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  GOLD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  7.45 mm
