DEM 16216 SGH - Display Elektronik

Description: Alphanumeric display, 2 x 16 character, STN-gray, viewing area: 61 x 15.8 mm, DEM 16216 SGH

Download DEM 16216 SGH Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this DEM 16216 SGH model

Email notifications will be applied after download.

Send part feedback

Symbol

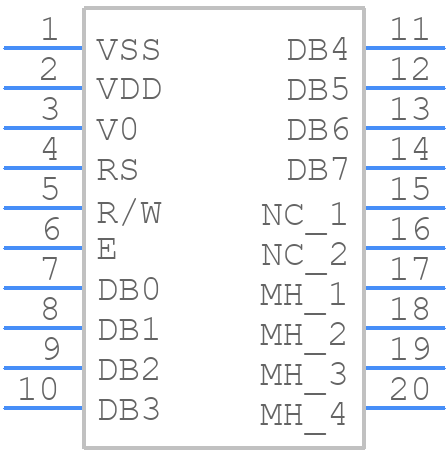

DEM 16216 SGH - Display Elektronik - PCB symbol

PCB Footprints

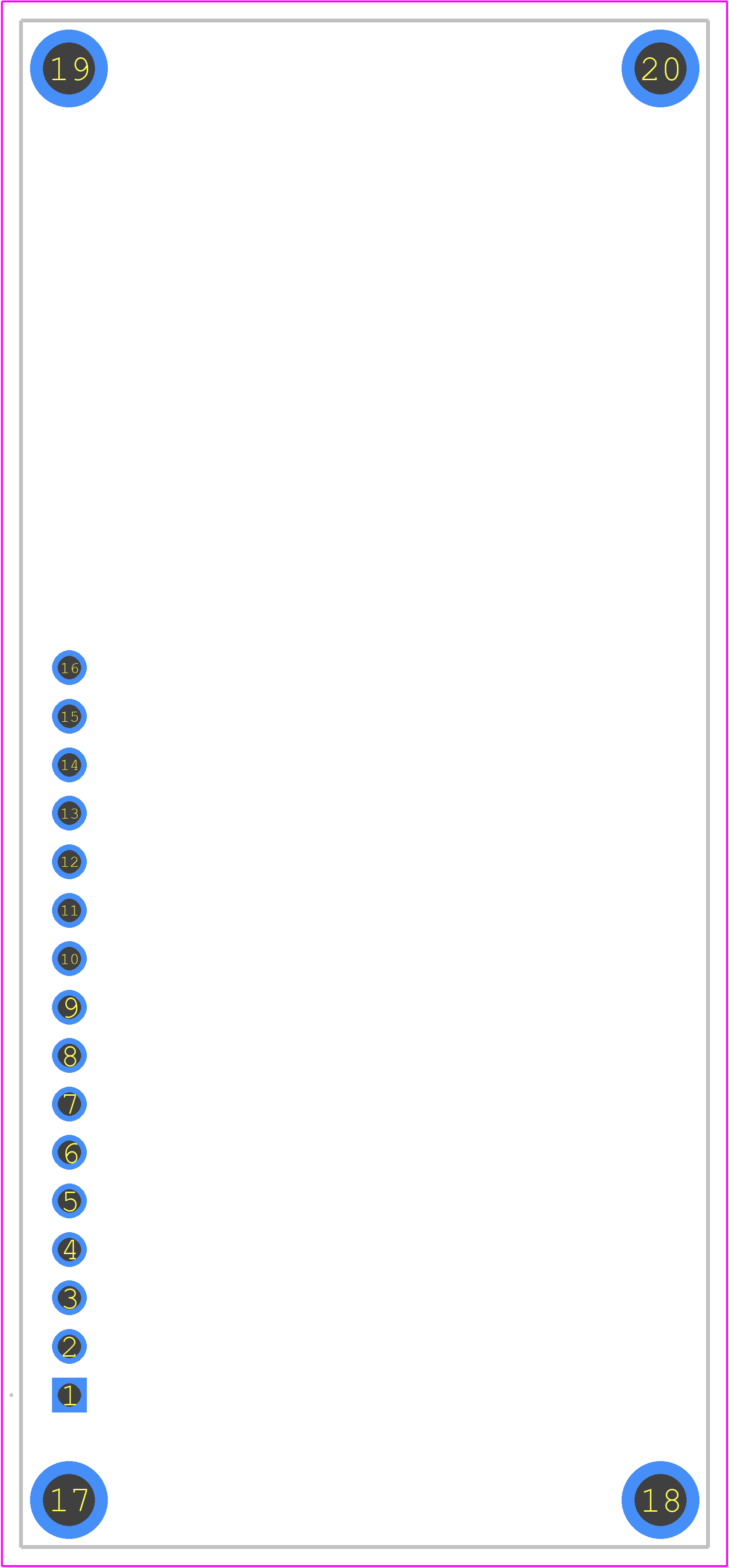

DEM 16216 SGH - Display Elektronik PCB footprint - Other - Other - 80 x 36 x 9.5mm

3D Models

DEM 16216 SGH - Display Elektronik - 3D model - Other - 80 x 36 x 9.5mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for DEM 16216 SGH
Part Number DEM 16216 SGH
Manufacturer Display Elektronik
Pin Count 20
Part Category Display
Package Category Other
Footprint Name Other - 80 x 36 x 9.5mm
Released Date Mar 17, 2026
Last Modified Date Mar 17, 2026 11:17 AM UTC
Pinout / Pin List Click Here (Member Only)

DEM 16216 SGH Details

Manufacturer Part Number:
DEM 16216 SGH
Manufacturer:
Display Elektronik GmbH

Trust Checks

Community Provided

System Verified

Community Approved

DEM 16216 SGH Overview

Use the download button to access the DEM 16216 SGH schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DEM 1, or try a keyword search, such as LCD Displays
