DF11-20DS-2DSA(05) - Hirose

Description: DF11 Straight Recept,Through Hole,20w Hirose DF11 Series, 2mm Pitch 20 Way 2 Row Shrouded Straight PCB Header, Through Hole, Solder Termination

Download DF11-20DS-2DSA(05) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DF11-20DS-2DSA(05) - Hirose - PCB symbol
click to zoom
PCB Footprints

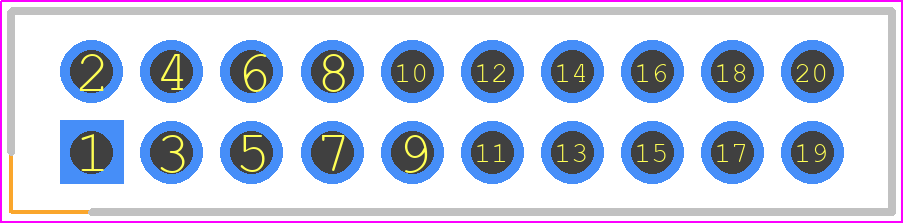

DF11-20DS-2DSA(05) - Hirose PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - DF11-20DS-2DSA(05)
click to zoom
3D Models
DF11-20DS-2DSA(05) - Hirose - 3D model - Header, Shrouded - Straight PTH Box - DF11-20DS-2DSA(05)
click to zoom

DF11-20DS-2DSA(05) Details

  • Manufacturer Part Number:

    DF11-20DS-2DSA(05)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8

  • Connector Type:

    BOARD CONNECTOR

DF11-20DS-2DSA(05) Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 N·m to 1.5 N·m (5 in-lbs to 13 in-lbs) for the screws on the DF11-20DS-2DSA(05) connector.
  • Yes, the DF11-20DS-2DSA(05) connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's recommended to follow the manufacturer's guidelines and perform thorough testing to ensure reliability.
  • The maximum operating temperature range for the DF11-20DS-2DSA(05) connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the DF11-20DS-2DSA(05) connector is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The recommended mating cycle for the DF11-20DS-2DSA(05) connector is 500 cycles. However, this may vary depending on the application and usage.
