DF11-22DS-2DSA(05) - Hirose

Description: Hirose DF11 Series, 2mm Pitch 22 Way 2 Row Straight PCB Header, Solder Termination, 2A

Download DF11-22DS-2DSA(05) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

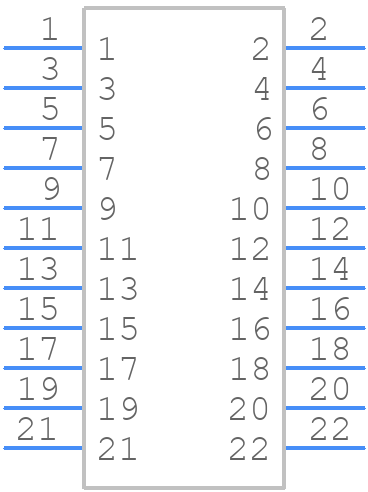

DF11-22DS-2DSA(05) - Hirose - PCB symbol
click to zoom
PCB Footprints

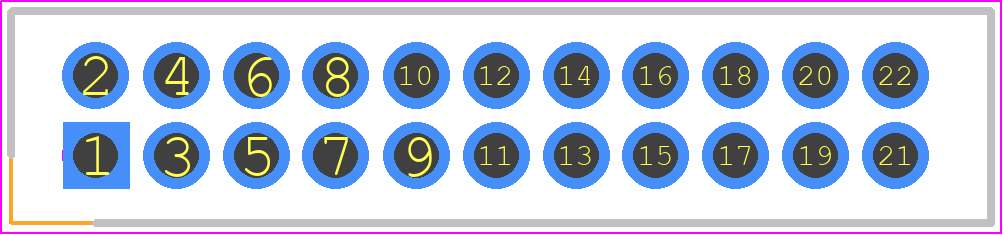

DF11-22DS-2DSA(05) - Hirose PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - DF11-22DS-2DSA*
click to zoom
3D Models
DF11-22DS-2DSA(05) - Hirose - 3D model - Header, Receptacle - Straight PTH Box - DF11-22DS-2DSA*
click to zoom

DF11-22DS-2DSA(05) Details

  • Manufacturer Part Number:

    DF11-22DS-2DSA(05)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8

  • Connector Type:

    BOARD CONNECTOR

DF11-22DS-2DSA(05) Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the DF11-22DS-2DSA(05) connector is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in).
  • Yes, the DF11-22DS-2DSA(05) connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10 G acceleration.
  • Yes, the DF11-22DS-2DSA(05) connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 105°C and a humidity range of 90% RH or less.
  • The mating cycle life of the DF11-22DS-2DSA(05) connector is 500 cycles minimum.
  • Yes, the DF11-22DS-2DSA(05) connector is RoHS and REACH compliant, meeting the requirements of EU directives 2011/65/EU and 2006/122/EC.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

DF11-22DS-2DSA(05) Overview

Use the download button to access the DF11-22DS-2DSA(05) schematic symbol, PCB footprint, and 3D model.
