DF11-24DS-2DSA(05) - Hirose

Description: Hirose DF11 Series, 2mm Pitch 24 Way 2 Row Straight PCB Header, Solder Termination, 2A

Download DF11-24DS-2DSA(05) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DF11-24DS-2DSA(05) - Hirose - PCB symbol
click to zoom
PCB Footprints

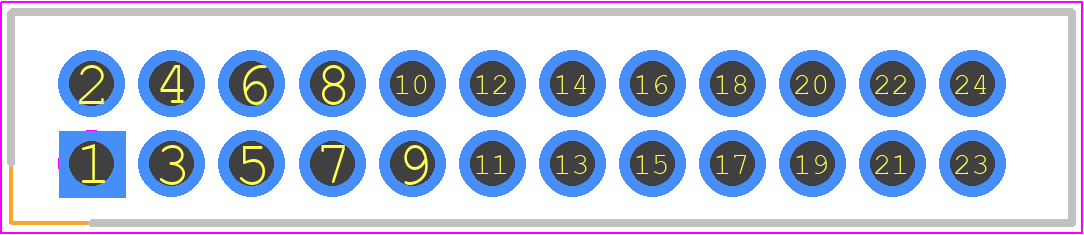

DF11-24DS-2DSA(05) - Hirose PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - DF11-24DS-2DSA(05)
click to zoom
3D Models
DF11-24DS-2DSA(05) - Hirose - 3D model - Header, Shrouded - Straight PTH Box - DF11-24DS-2DSA(05)
click to zoom

DF11-24DS-2DSA(05) Details

  • Manufacturer Part Number:

    DF11-24DS-2DSA(05)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8

  • Connector Type:

    BOARD CONNECTOR
